Multi Pieces Digestive Biscuits Pancakes Trayless Packaging Machine Plastic Wrapper

1 set
MOQ
To be negociated
Price
Multi Pieces Digestive Biscuits Pancakes Trayless Packaging Machine Plastic Wrapper
Features Gallery Product Description Request A Quote
Features
Specifications
Machine Name: Horizontal Trayless Packing Machine
Applicable Industries: Frozon Foods Or Commodities Multi-piece Trayless Pack
Packing Film: OPP,CPP Or Composite Plastic Film Etc
Key Selling Points: Multi Pieces Trayless Pack
Control System: Servo + HMI
Driven Type: Mechanical
After-sales Service: Video Technical Support
After Warranty Service: Video Technical Support
Highlight:

Plastic Wrapper Packaging Machine

,

Trayless Packaging Machine

,

Multi Pieces Packaging Machine

Basic Infomation
Place of Origin: China
Brand Name: Sayok
Certification: CE
Model Number: SN-250D/350D/450D
Payment & Shipping Terms
Packaging Details: Exported wooden case
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 100 set /month
Product Description

Multi Pieces Digestive Biscuits Pancakes Trayless Packaging Machine Plastic Wrapper



Feature:



1.  It is equipped with high quality carbon steel frames, can be optional to be stainless steel. Both will be with thick enough steel plates, make sure the machine is long life in use and meet food packing machinery requirements.

2.   Adopts serveral servo motor control systems, more precisely, can adjust the packing numbers in PLC directly.

3.   Adopting the world's leading fully open box structure, the transmission structure at a glance, maintenance is more convenient.

4.  Can be customized the automatic feeders for automatic feeding packing or manual discharging.

5.  Separate PID control to temperature, suitable for various packing materials.

6.  Stopping the machine in selected position, no sticking to the knife and no waste packing film.







Quickly Details



1.  Carbon steel or stainless steel main frame.

2.  Servo control system or inverter control;

3.  Rotary up flow wrapping machine, plastic film packing machine

4.  Horizontal pillow packing machine, high speed and reliable.

5.  Optional date printing as industry requirements.

6.  Reciprocating thermostatic cutting knife sealer





Specifications:



Model SN-250D/350D/450D
Packing film composite
Packing Speed 30-120bags/min
Packing Size

L*W 65-330mm*30-110mm

Power Supply 220 50/60Hz
Power 2.5KW
Machine size 4300x2100x1800mm
Feeder 4400*2200*1900mm
Machine Weght Approx 550kg



Degree of automation Automatic
Processing customization Customized processing is available
Material Type Solid
Applicable objects Gifts, crafts, food, clothing, home textiles, chemicals, toys, restaurants, daily chemicals, pharmaceuticals, hardware, machinery





Machine Details:

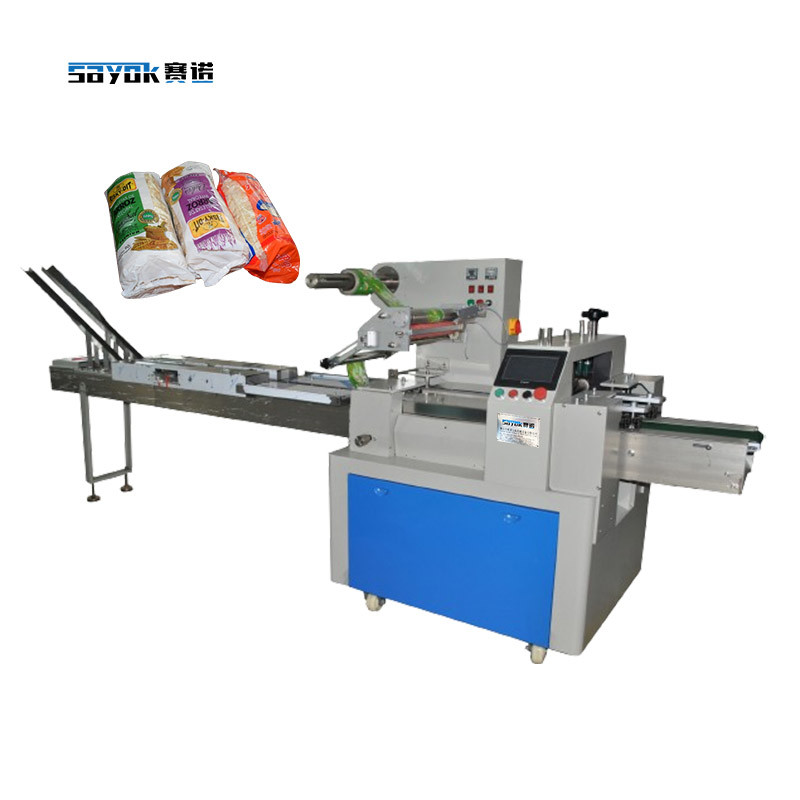

1. Packaging machine appearance

It can realize the one-step process of material release, packaging and sealing and cutting

Multi Pieces Digestive Biscuits Pancakes Trayless Packaging Machine Plastic Wrapper 0

2.Linkage film winding

Adopt multi-linked film rolls to coordinate film link, adapt to more rolled film materials. The rolled film is smoother and more effective in preventing the upper rolled film from running off.

Multi Pieces Digestive Biscuits Pancakes Trayless Packaging Machine Plastic Wrapper 1

3. Conveyor device



Stainless steel operating platform cassette positioning conveyor belt device

Multi Pieces Digestive Biscuits Pancakes Trayless Packaging Machine Plastic Wrapper 2

4.Fully automatic sealing and cutting

The sealing and cutting shrinkage is completed in a single pass, realizing unmanned automatic operation.

Multi Pieces Digestive Biscuits Pancakes Trayless Packaging Machine Plastic Wrapper 3

5. All controls are run and programmed by software for reliable quality and easy maintenance, and higher security

Multi Pieces Digestive Biscuits Pancakes Trayless Packaging Machine Plastic Wrapper 4
6. H type 3 side packing machine, Packing neat and good looking

Multi Pieces Digestive Biscuits Pancakes Trayless Packaging Machine Plastic Wrapper 5
