Servo Driven Napkin Spoon Fork Toothpick Sugar Cutlery Set Full Automatic Packing Machine

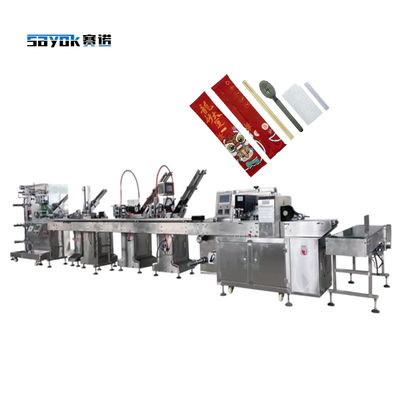

This production line is a new generation of automatic transmission designed and developed by Sayok. It is a fully automatic packing line for disposable tableware cutlery pack, including the napkin machine, flow wrapping machine, spoon/fork/knife feeder, toothpick feeder and salt/pepper/sugar chopsticks feeder etc, depends on client’s requirements, can be customized for each cutlery set combos. Major developped for disposable tablewares packing, Less manual intervention, cleaner and more hygienic.
Quickly Details
1. Automatic feeding packing line, feeders can be customized
2. Each items can be control and operate separately.
3. Servo + HMI control, easy to operate and maintain.
4. Napkin Machine can be opetional to be flat or embossed;
5. Spoon/forks feeders can be rotary or horizontal one, horizontal one is recommended.
Technical Parameters:
| Napkin machine parameter |
| Speed |
60-150 bag/min |
| Napkin—dimensions |
6-17 inch |
| Folding Range |
6-12 ply |
| Folding width |
25-60mm |
| Scroll max-dia |
Diameter 900 -1200mm |
| Scroll max-with |
450mm |
| Packing line dimensions |
1900*1400*1700mm |
| Power |
1.5KW |
| Pillow packing machine |
| Film max-width |
260mm |
| Film thickness |
0.012-0.06mm |
| Packing speed |
90-150 bag/min |
| Packing width |
80-180mm |
| Packing height |
<95mm |
| Product dimensions |
|
| (L) |
100-300mm |
| (W) |
30-80mm |
| (H) |
≤35mm |
| Packing machine dimensions |
4570*700*1200mm |
| Weight |
552kg |
| The Spoon/Fork Feeder Machine |
| Delivery max-speed |
80-130 times/min |
| Spoon/Fork dimensions |
L: 80-160mm; W:30-60mm |
| The size of spoon/fork feeder machine |
1700*750*1900mm |
| Weight |
227kg |
| Pepper And Salt Feeder Machine |
| Max feeding speed |
80-120 times/min |
| Max-dimension |
75mm |
| Control system |
PLC+Servo Motor |
| Machine dimensions |
1200*300*800mm |
| Machine Net Weight |
150kg |
| Power |
1.5KW |
FAQ:
Questions & Answers
Q: What is the brand name?
A: The brand name is Sayok.
Q: What is the model number?
A: The model number is SN-.
Q: Where is the origin?
A: The origin is China.
Q: What is the certification?
A: The certification is CE.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1.
Q: What is the price?
A: The price is negotiable.
Q: What is the delivery time?
A: The delivery time is 35days.
Q: What is the payment terms?
A: The payment terms is T/T.
Q: What is the supply ability?
A: The supply ability is 50 set per month.
Machine Details:
|
1. It is a fully automatic packing line for cutlery pack, including the napkin machine, flow wrapping machine, spoon/fork/knife feeder, toothpick feeder and salt /pepper /sugar chopsticks feeder etc, depends on client’s requirements to combo. Each parts can operate separately.
|
|
|
2.The napkin machine includes making process, just put the coiled roll materials to the machine unwinding, folding, cutting and output, it is a full automatic machine
|
|
|
3. Forks/Spoons/Knife feeder will adopt horizontal feeding way, fast and stable, just put piles products, will detect by sensor.
|
|
|
4. Toothpick feeders - adopts volumetric feeding way, big storages and full automatic one, easy to operate and save workers.
|
|

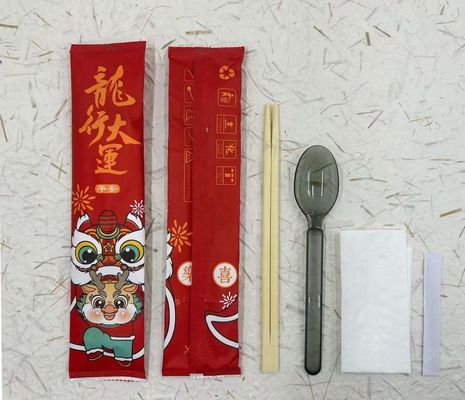

| 5. Seasoning bag feeder - Use coiled seasoning bags, there will be electric eye detection, automatic detect the color marks and cut according, very intelligent and convenient. |
- |
| 6. Applications- suitable for the cutlery set packing for takeaways, high efficient and full automatically. |
|
