Features Gallery Product Description Request A Quote

Features

Specifications

Machine Name: Cutlery Set Automatic Packing Line

Advantages: Automatic Feeding Packing

Speed: 80-120 Pack/min

Power: 380V/220V

Warranty: 1 Year

Packing Material: Plastic Or Paper Film Rolls

Supply Ability: 50 Set/Sets Per Month

Power Supply: Electricity

Type: Automatic

Weight: 1500kg

Highlight:

Automatic Feeding Filling Packing Machinery

Disposable Tableware Flow Packing Line

Disposable Tableware Packing Machinery

Basic Infomation

Place of Origin: china

Brand Name: sayok

Certification: ce

Model Number: SN-

Payment & Shipping Terms

Packaging Details: Wooden box packing

Delivery Time: 35days

Payment Terms: T/T

Supply Ability: 100pcs per month

Gallery

Automatic Feeding Filling Packing Machinery Disposable Tableware Flow Packing Line

Product Description

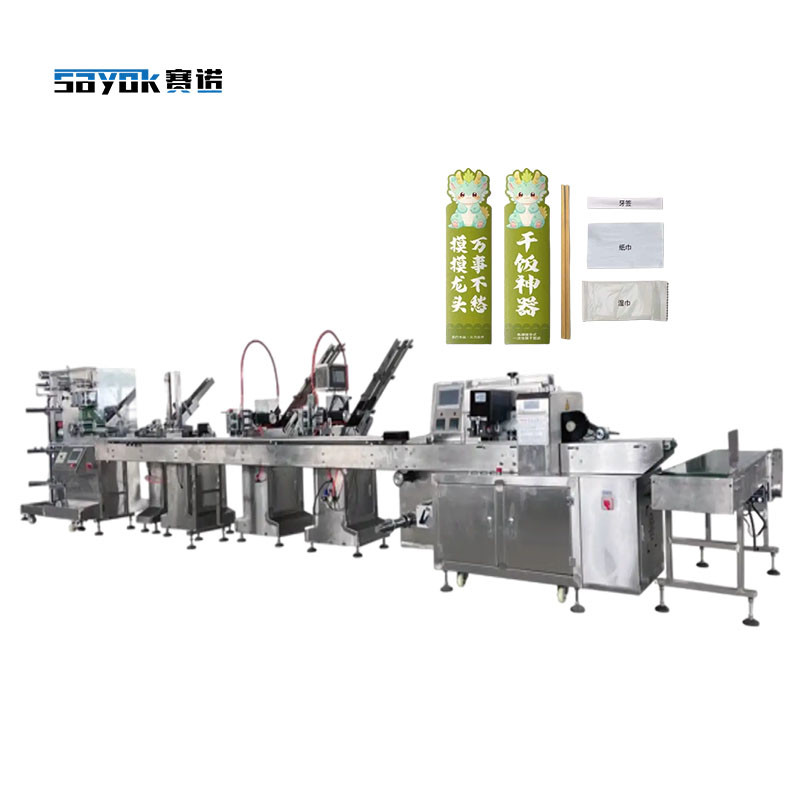

Automatic Feeding Filling Packing Machinery Disposable Tableware Flow Packing Line

This production line is a new generation of automatic transmission designed and developed by Sayok. It is a fully automatic packing line for disposable tableware cutlery pack, including the napkin machine, flow wrapping machine, spoon/fork/knife feeder, toothpick feeder and salt/pepper/sugar chopsticks feeder etc, depends on client’s requirements.

Technical Parameters:

Napkin machine parameter
Speed	60-150 bag/min
Napkin—dimensions	6-17 inch
Folding Range	6-12 ply
Folding width	25-60mm
Scroll max-dia	Diameter 900 -1200mm
Scroll max-with	450mm
Packing line dimensions	190014001700mm
Power	1.5KW

Pillow packing machine
Film max-width	260mm
Film thickness	0.012-0.06mm
Packing speed	90-150 bag/min
Packing width	80-180mm
Packing height	<95mm
Product dimensions
(L)	100-300mm
(W)	30-80mm
(H)	≤35mm
Packing machine dimensions	45707001200mm
Weight	552kg

The Spoon/Fork Feeder Machine
Delivery max-speed	80-130 times/min
Spoon/Fork dimensions	L: 80-160mm; W:30-60mm
The size of spoon/fork feeder machine	17007501900mm
Weight	227kg

Pepper And Salt Feeder Machine
Max feeding speed	80-120 times/min
Max-dimension	75mm
Control system	PLC+Servo Motor
Machine dimensions	1200300800mm
Machine Net Weight	150kg
Power	1.5KW

FAQ:

Questions & Answers

Q: What is the brand name?

A: The brand name is Sayok.

Q: What is the model number?

A: The model number is SN-.

Q: Where is the origin?

A: The origin is China.

Q: What is the certification?

A: The certification is CE.

Q: What is the minimum order quantity?

A: The minimum order quantity is 1.

Q: What is the price?

A: The price is negotiable.

Q: What is the delivery time?

A: The delivery time is 35days.

Q: What is the payment terms?

A: The payment terms is T/T.

Q: What is the supply ability?

A: The supply ability is 50 set per month.

Machine Details:

1. It is a fully automatic packing line for cutlery pack, including the napkin machine, flow wrapping machine, spoon/fork/knife feeder, toothpick feeder and salt /pepper /sugar chopsticks feeder etc, depends on client’s requirements.
2.The napkin machine includes making process, just put the coiled roll materials to the machine unwinding, folding, cutting and output, it is a full automatic machine
3. Forks/Spoons/Knife feeder will adopt horizontal feeding way, fast and stable, just put piles products, will detect by sensor.
4. Toothpick feeders - adopts volumetric feeding way, big storages and full automatic one, easy to operate and save workers.
5. Seasoning bag feeder - Use coiled seasoning bags, there will be electric eye detection, automatic detect the color marks and cut according, very intelligent and convenient.	-

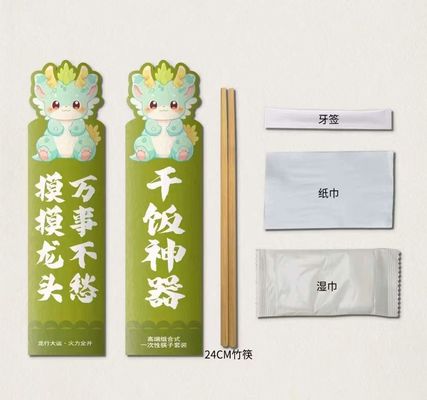

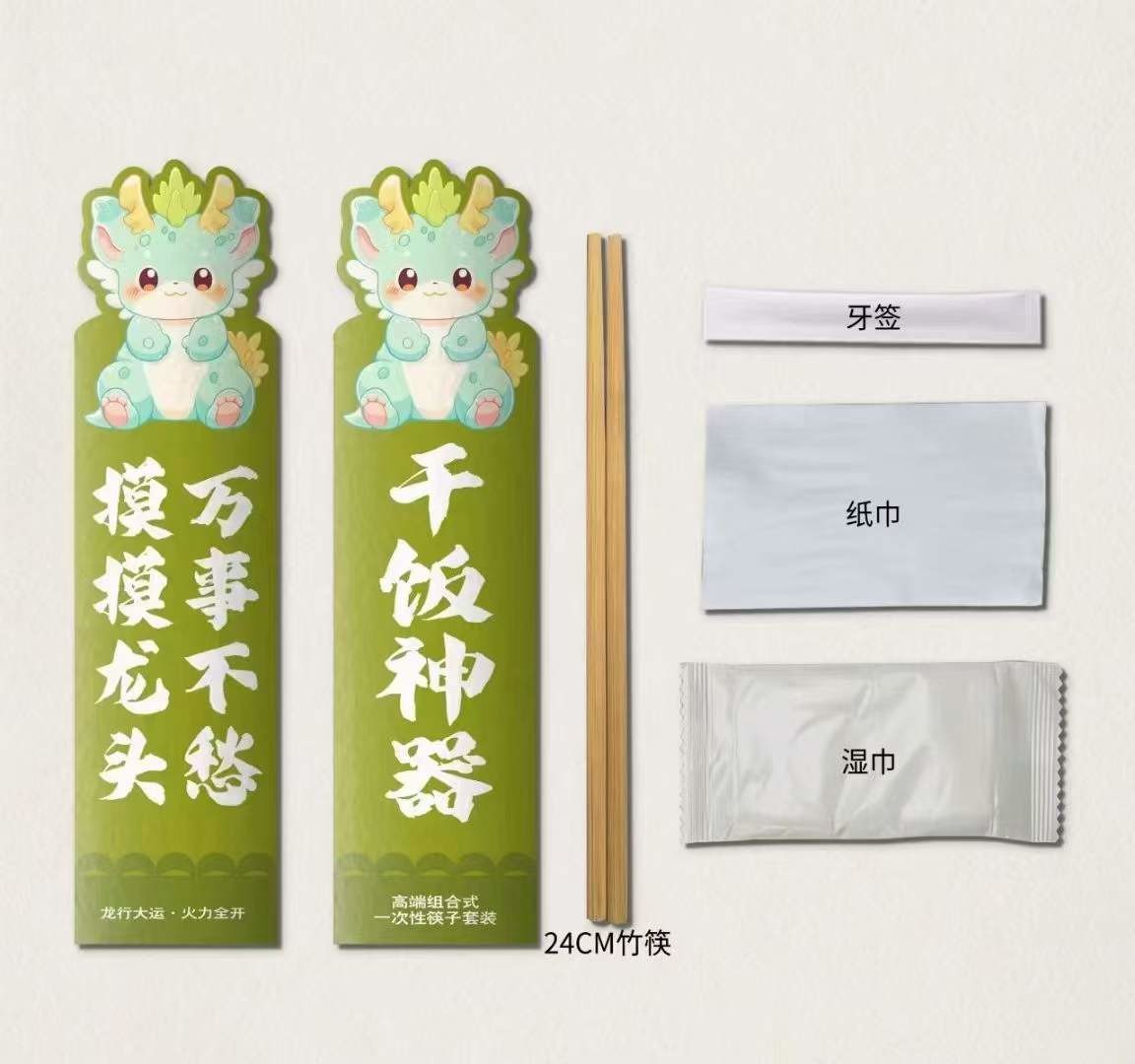

6. Applications- suitable for the cutlery set packing for takeaways, high efficient and full automatically.
