Features

Specifications

Advantage: Full Automatic Counting And Packing Machine

Speed: 400-600 Pieces / Min

Sticks Length: 100-350mm

Film Material: PE/PET, OPP/CPP, Etc Composite Film

Automatic Grade: Automatic

Driven Type: Mechanical

After-sales Service: Video Technical Support

OEM/ODM: YES

Highlight:

Volumetric Type Packaging Machine

Automatic Counting Packaging Machine

Incense Sticks Packaging Machine

Basic Infomation

Place of Origin: China

Brand Name: Sayok

Certification: CE

Model Number: SN-660/690

Payment & Shipping Terms

Packaging Details: Exported wooden case

Delivery Time: 15-30 working days

Payment Terms: T/T, L/C

Supply Ability: 100 set /month

Gallery

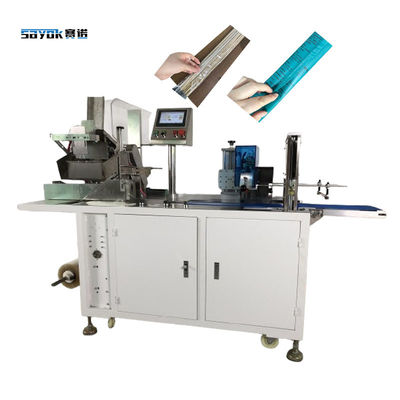

Widely Length Adjustment Incense Sticks Automatic Counting Packaging Machine Volumetric Type

Product Description

Widely Length Adjustment Incense Sticks Automatic Counting Packaging Machine Volumetric Type

Name: Widely Length Adjustment Incense Sticks Automatic Counting Packaging Machine Volumetric Type
Brand: Foshan Sayok Intelligent Machinery Co., Ltd.，
SKU: SN-660/690
Price: 5,934.00 USD
Availability: InStock

Main performance and structural features

1, The machine is automatic counting and packing 2 in 1 intergrating machine, fully automatic machine, easy to operate and maintain, reasonable compact design, small footprint for small business, meet the industry requirements.

2, Big volumetric storage and counting way, can be capitable for 10-100 pieces incense sticks counting and packing.

3, Easy to adjust the length once changing the stick length, stick length from 100 - 300mm, to be customized.

4, Multi-functional machine, can be 2.5-3.0 diameter sticks and also 3.0-3.5 diameter sticks. And to be customized for other sizes.

5, Quantity of each bag can be intelligent to adjust, just set in the operating screen, very easy and convenient .

6, Chinese-English bilingual languages for the operating screen, can be customized.

Quickly Details

1. counting and packing 2 in 1 machine

2. Volumetric counting way

3. small footprint and compact designed machine

4. Capitable for blank and printing packaging film

5. servo motor driven

Specifications:

Machine Mode	SN-660
Packaging type	3 side seal H type
Packing Speed	20-50 bags/min
Film Thickness	0.01-0.022 mm
Film width	300 mm
Bag Length	300-600 mm
Bag Width	10-150 mm
Bag height	Max. 80 mm
Film type	BOPP single side heat seal roll film
Machine Size	32009801250 mm
Machine weight	500 KG
Power	220 V 50/60 HZ 3KW
Applications	Buddha incense, mosquito incense, food, chemical, catering, hardware and daily chemical

Machine Details:

1. Packaging machine appearance Sprayed and baked paint finish, can be customized for stainless steel. It can realize the one-step process of material release, counting, packaging, sealing and cutting
2.Control panel Large size display PLC, all is displayed in the screen, easy to operate and maintain.
3. Automatic feeding and counting Electric optic eye to detect the quantity, realiable and accurate, reduce labor, save in time and cost.
4. Big storage tank for materials Big tank for storing materials, enlarge the packable range, reduce the times to fulfil materials, save in time and labors.
5. There's a temporary small storage slot to collect the counted materials, once reach the set counted quantity, will open the slot for packing, very intelligent and reasonable.
6. The counted materials will be spaced for central bag packing. There will be separated operating buttons for the packing parts, which is easy to operate
7. There is separated control button for cutters. Cutter will be good quality with hard enough steel to ensure cut placement precisely and cut neat.
8. Large applications Suitable for Buddha incense, mosquito incense, food, chemical, catering, hardware and daily chemical etc counting and packing
