4kw Automatic Packing Machinery For Sticky Notes Premade Pouch Back Sealing Pack
Specifications:
Model |
SN-350ZDP |
Size of bag |
L:210-480mm W:145-330mm |
Product Size |
L:200-380mm W:170-300mm H:10-50mm |
Pouch Quality |
OPP, CPP, PP POF material; |
Pouch Thickness |
0.025-0.06 mm |
Sealing Type |
Heat sealing or back sealing |
Packing Speed |
10-20 bags/min (depends on product) |
Rated air pressure |
w-1.0/101 air compressor 0.5-0.8m3/min 300-500L/min |
Power Supply |
220V 50/60HZ 4 Kw |
Machine size |
3100X600X1200/2050X850X1100mm T type connection |
Machine Weght | Approx 1500 kg |
Machine Details:

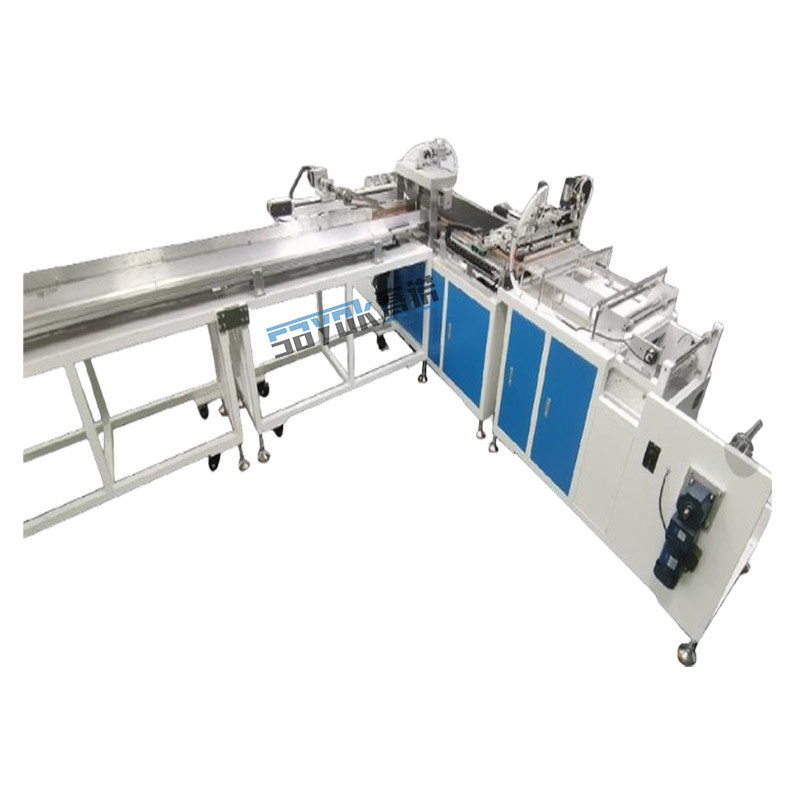

1. Horizontal packing machine It can realize the one-step process of material release, packaging and sealing and cutting |
![]() |
2. Premade Pouch Bagging Machine Designed for premade pouch automatic filling sealing packing. pouch bag size can be customized within scale. |
![]() |
3. Product put to the conveyor manually, then automatic feeding and push to the premade pouch, pouch size to be customized. |
|
4.Intelligent pushing The product is automatically pushed at the entrance end of the bag according to the different product configurations. |
![]() |
5. Packaging we adopt wooden case as package type. It's suitable for long-distance transport.According to customers' special demand, we could adopt sheet iron case and so on. |
![]() |
6. Back Sealing Type Packing Machine, automatic adhesive back tape. can also change to heat sealing. |
|
