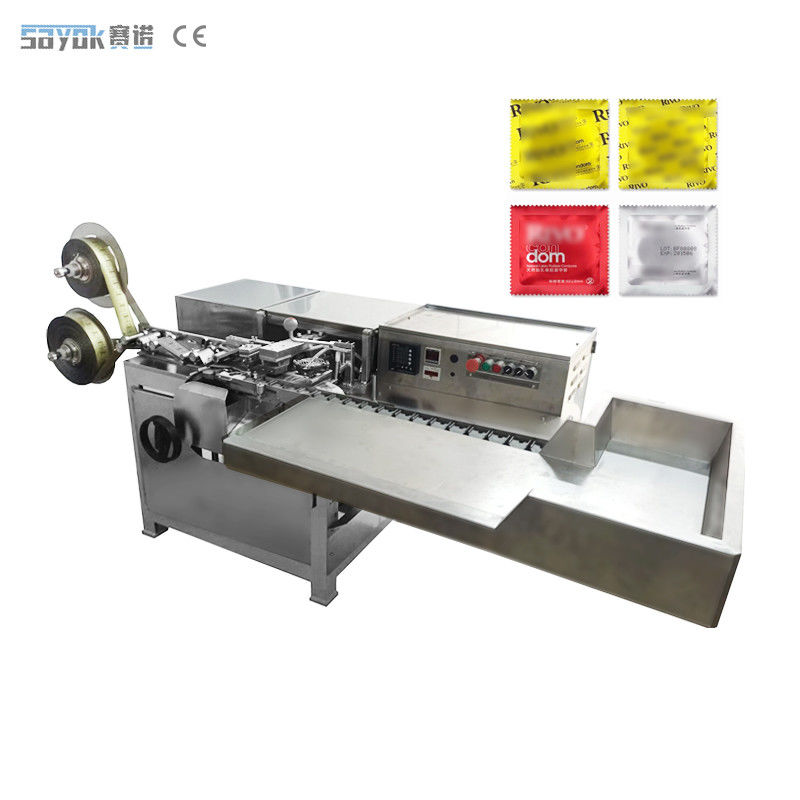

OEM Automatic Latex Condom Packing Equipment Four Side Sealing Packaging Machine

OEM Automatic Latex Condom Packing Equipment Four Side Sealing Packaging Machine

Brand Name:	Sayok
Model Number:	SN-190
MOQ:	1 set
Price:	EXW US$6900 -15000/set
Payment Terms:	T/T
Supply Ability:	50 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Function:

FILLING, Wrapping, Sealing

After-sales Service Provided:

Provided

Condition:

New

Key Selling Points:

Easy To Operate

Bag Shape:

Square Bag

Application:

Medical

After-sales Service:

Video Technical Support

OEM/ODM:

YES

Packaging Details:

Exported wooden case

Highlight:

OEM Condom Making Machine

Automatic Latex Condom Making Machine

Product Description

Custom Single, Dual -Way, Three Roads High-Speed Condom Packaging Machine

Supply Condom Latex Condom Packing Equipment Line Four Side Sealing Packaging Machine

The condom packing machine automatically puts the condom in the designated position on the material mould, pulls out a certain length according to the length of the bag and stops. Then the mould closes the long heat-sealing edge, puts the condom into the packaging bag, closes the short heat-sealing edge of the mould, and cuts by knife at the same time. This cycle starts again and then proceeds to the next action.

Features

1.Imported transmission clutch parts using international brands, stable work, less noise, and high work efficiency.

2.Product packaging sealing embossing: Can be customized by the customer’s requirement.

3.Material size:30*70mm,55*55mm,58*58mm, or any size within the scope.

4.This condom packing machine is suited for different material BO film, packaging composite membrane (double layers, three layers or aluminum film).

Specifications:

Model	SN-190
Suitable Material	Suitable Material
Packing Speed	40-100 bags/min
Packing Size	LW 65-330mm30-110mm
Power Supply	220 50/60Hz
Power	2.5KW
Machine size	4000x720x1600mm
Feeder	41008201700mm
Machine Weght	Approx 600kg

Air consumption	≥30m3/h (self-provided), pressure: 0.6-0.8Mpa
Degree of automation	Automatic
Processing customization	Customized processing is available
Material Type	Solid
Applicable objects	Condom, latex finger cot or other small latex products.

Machine Details:

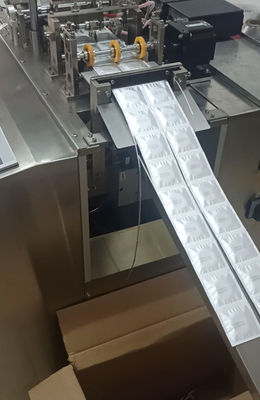

1. Packaging machine appearance It can realize the one-step process of material release, packaging and sealing and cutting
2.With the function of benchmarking packaging The packaging is more beautiful, and the brand level is improved (applicable to the benchmarking function models);
3. Conveyor device operating platform cassette positioning conveyor belt device
4.Fully automatic sealing and cutting The sealing and cutting shrinkage is completed in a single pass, realizing unmanned automatic operation.
5. Self-locking gimbal Move at any time as required, press to self-lock and lock at any time
6.Applications of Automatic Condom Packing Machine
