Name: Wet Tissue Non Woven Alcohol Pad Making Machine Alcohol Swab Packing Machinery
Brand: Foshan Sayok Intelligent Machinery Co., Ltd.，
SKU: SN-280D
Price: 17,119.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Exterior: New

Applicable Industries: Medicine，daily

Packing Film: PVC

Tunnel: Adopt Advanced Foreign Technology

Operation Mode: Touch Screen

Driven Type: Mechanical

After-sales Service: Video Technical Support

After Warranty Service: Video Technical Support

Highlight:

Non Woven Alcohol Pad Making Machine

Wet Tissue Alcohol Pad Making Machine

Basic Infomation

Place of Origin: China

Brand Name: Sayok

Certification: CE

Model Number: SN-280D

Payment & Shipping Terms

Packaging Details: Exported wooden case

Delivery Time: 35-45 working days

Payment Terms: T/T

Supply Ability: 50 set /month

Gallery

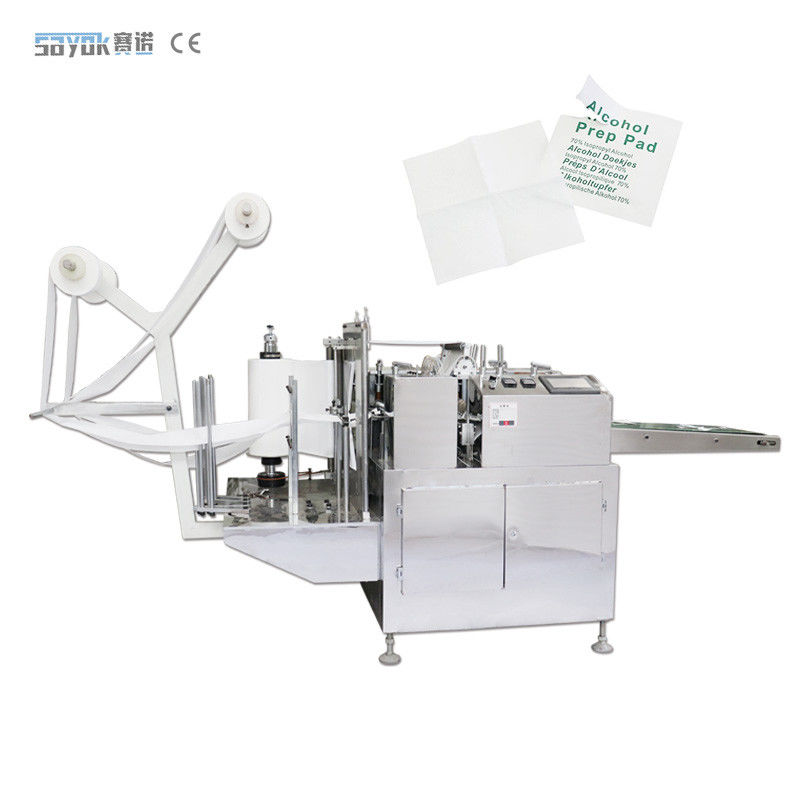

Wet Tissue Non Woven Alcohol Pad Making Machine Alcohol Swab Packing Machinery

Product Description

Wet Tissue Non-Woven Alcohol Pad Making Machine Alcohol Swab Packing Machine

Facture:

Mainframe interface, beautiful setting is convenient and fast.

The fault self-diagnosis function makes the fault clear.

High-sensitivity photoelectric eye color mark tracking, digitally input the sealing and cutting position, making the sealing and cutting position more accurate.

Independent control of temperature, better adapt to various packaging materials.

1.Positioning stop function, no sticking of knife, no waste of film.

2.The transmission system is simple, the work is more reliable, and the maintenance is more convenient.

All control is realized by software, which is convenient for function adjustment and technical upgrade, and never lags behind.

Process flow:

Non woven fabric and packaging film rolling machine → non-woven fabric longitudinal fold (Or do not fold) → cutting → adding liquid → folding sheet output → bag making → packaging → sealing → exporting packaged finished products.

Alcohol swab open size : 30x60mm.

Alcohol swab folded size: 30x30mm.

Folding way: half folding, 2plys.

Bag size: L 50 x W 50mm.

Production capacity: 200-400pcs/min.

Packing film material: 73-110gsm, paper laminated aluminum film

Packing film Specification: diameter≤350mm,width 400mm ,

Paper core diameter:76.2mm (3 inch)

Suit non-woven material: 30-60gsm non-woven spunlace.

Non-woven spunlace specification: diameter≤600mm, width 60mm.

Paper core diameter:76.2mm (3 inch)

Power:220v,50hz,single phase, heating 3kw, motor,etc 1kw

Machine weight : net weight 330kg. gross weight 390kg.

Machine dimension: 3500x 1300 x 1300 (LxWxH)

Wooden case packing size: 2020x 1180x 1350mm (LxWxH)

Specifications:

Model	SN-280D
Packing Speed	360~400/min (bag/min)
Packing Size	LW 5050mm
Power Supply	220/380V 50/60Hz
Power	5KW
Machine size	280013001500(mm)
Feeder	2810 1400 1600 mm
Machine Weght	Approx 500kg

Film width	400mm(mm)
Power	Approx. 15 KW
Material Type	Solids
Place of Origin	GUANGDONG,CHINA
Usage	Superior Making Machinery For Cotton Swab;Non-Woven;Pad
Applicable industries	Gifts, crafts, food, clothing, home textiles, chemicals, toys, restaurants, daily chemicals, pharmaceuticals, hardware, machinery

Machine Details:

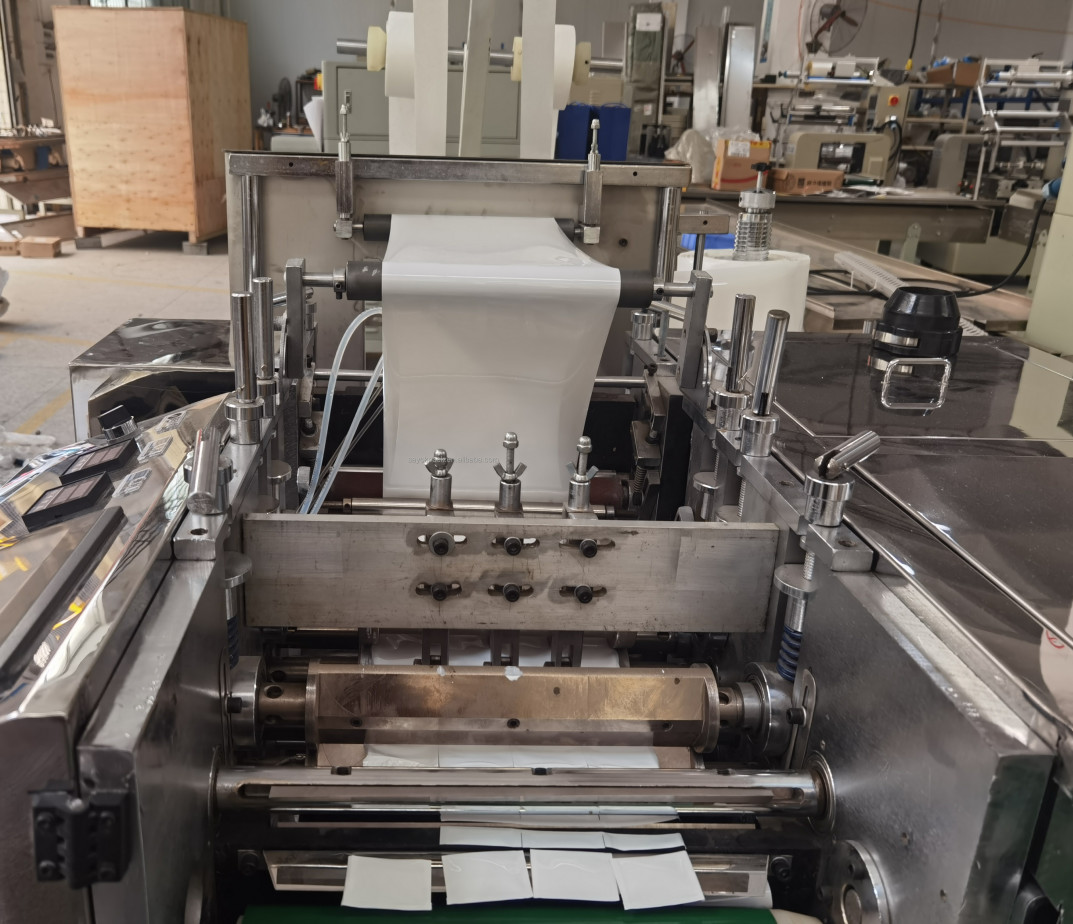

1. Packaging machine appearance
2. Fully automated sealing and cutting The sealing and cutting shrinkage is completed in a single pass, realizing unmanned automatic operation.
3. Support two different materials packaging film Can be single roll (top and bottom layer of the same material) can be double roll (top and bottom layer of different materials), convenient for different product packaging options.
4.Fullyautmatic Adopt servo drive system;PLC intelligently controlsthe operation of the wholemachine, precise filmfeeding, stable cottonsheet transmission, andprecise bag cutting
5. Liquidaddition lmported liquid pump, theliquid filling volume isdirectly set on the touchscreen. High precision ofliquid addition
6.Goodsealin Tight sealing withoutliquid leakage andbubbling under thepremise of high liquiddosing
6.Support for custom We can customize designs according to customers' needs to meet diverse needs. Our technical department can also help you to analyze, design and test your new products.
