Home /Products/Alcohol Swab Machine/Disinfection Alcohol Swab Machine Alcohol Prep Pad Production Packaging Equipment 400pcs/min

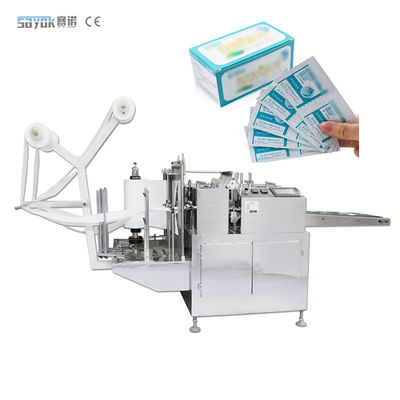

Disinfection Alcohol Swab Machine Alcohol Prep Pad Production Packaging Equipment 400pcs/min

1 set
MOQ
Negotiable
Price
Disinfection Alcohol Swab Machine Alcohol Prep Pad Production Packaging Equipment 400pcs/min
Features Gallery Product Description Request A Quote
Features
Specifications
Exterior: New
Applicable Industries: Medicine，daily
Control System: PLC
Packaging Size: Customized
Packaging Material: Paper/Plastic
Function: Disinfection
After-sales Service: Video Technical Support
After Warranty Service: Video Technical Support
Highlight:

Disinfection Alcohol Swab Machine

,

400pcs/min Alcohol Swab Machine
Basic Infomation
Place of Origin: China
Brand Name: Sayok
Certification: CE
Model Number: SN-280D
Payment & Shipping Terms
Packaging Details: Exported wooden case
Delivery Time: 35-45 working days
Payment Terms: T/T
Supply Ability: 50 set /month
Product Description

Disinfection Alcohol Prep Pad Manufacturers Production Packaging Machine



Facture:



1. Alcohol Swab Machine uses servo motor to control machine to get intelligent operation.
2. This machine can cut one big roll into 8 rollers automatically or use 8 non-woven rollers.
3. This machine adopts Swiss Gotec Electromagnetic Pump that is high accuracy and strong corrosion resistance.
4. The non-woven material can be folded in half, three or four.

5. It can cut the right and round angle alcohol swabs/pads, no waste.


Non woven fabric and packaging roll film feeding →non-woven fabric is vertically folded (or not folded) → cut off → liquid adding → folded sheet output → bag making →packaging →sealing →finished products output

Alcohol swab open size : 30x60mm.

Alcohol swab folded size: 30x30mm.

Folding way: half folding, 2plys.

Bag size: L 50 x W 50mm.

Production capacity: 200-400pcs/min.

Packing film material: 73-110gsm, paper laminated aluminum film

Packing film Specification: diameter≤350mm,width 400mm ,

Paper core diameter:76.2mm (3 inch)

Suit non-woven material: 30-60gsm non-woven spunlace.

Non-woven spunlace specification: diameter≤600mm, width 60mm.

Paper core diameter:76.2mm (3 inch)

Power:220v,50hz,single phase, heating 3kw, motor,etc 1kw

Machine weight : net weight 330kg. gross weight 390kg.

Machine dimension: 3500x 1300 x 1300 (LxWxH)

Wooden case packing size: 2020x 1180x 1350mm (LxWxH)



Quick Details:



1. Widely use in  daily necessities, cosmetics, food, medical etc many industries.

2. Adjust width of bag forming according to the product height width.

3. With waste collection, make the enviroment neat and clean.

4. Automatic counting is available to facilitate manual entry into the box.

5. The packaging material is consumable.

6. Packaging machine can be adapted to specific requirements.





Specifications:



Model SN-280D
Packing Speed 360~400/min (bag/min)
Packing Size L*W 50*50mm
Power Supply 220/380V 50/60Hz
Power 5KW
Machine size 2800*1300*1500(mm)
Feeder 2810 *1400* 1600 mm
Machine Weght Approx 500kg



Film width 400mm(mm)
Power Approx. 15 KW
Material Type Solids
Place of Origin GUANGDONG,CHINA
Usage Superior Making Machinery For Cotton Swab;Non-Woven;Pad
Applicable industries Gifts, crafts, food, clothing, home textiles, chemicals, toys, restaurants, daily chemicals, pharmaceuticals, hardware, machinery



Machine Details:

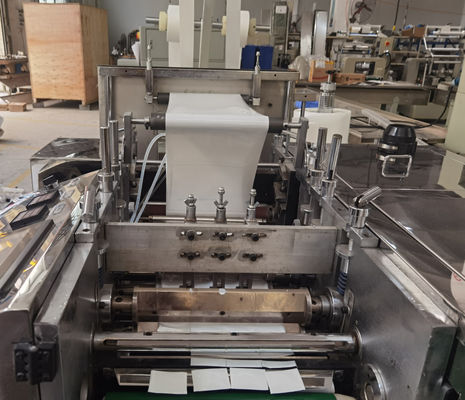

1. Packaging machine appearance

 Disinfection Alcohol Swab Machine Alcohol Prep Pad Production Packaging Equipment 400pcs/min 0

2. Fullyautomatic
Adopt servo drive system;PLC intelligently controlsthe operation of the wholemachine, precise filmfeeding, stable cottonsheet transmission, andprecise bag cutting

 Disinfection Alcohol Swab Machine Alcohol Prep Pad Production Packaging Equipment 400pcs/min 1

3. Support two different materials packaging film

Can be single roll (top and bottom layer of the same material) can be double roll (top and bottom layer of different materials), convenient for different product packaging options.

 Disinfection Alcohol Swab Machine Alcohol Prep Pad Production Packaging Equipment 400pcs/min 2

4.Fullyautmatic
Adopt servo drive system;PLC intelligently controlsthe operation of the wholemachine, precise filmfeeding, stable cottonsheet transmission, andprecise bag cutting

 Disinfection Alcohol Swab Machine Alcohol Prep Pad Production Packaging Equipment 400pcs/min 3

5. Liquidaddition
lmported liquid pump, theliquid filling volume isdirectly set on the touchscreen. High precision ofliquid addition

 Disinfection Alcohol Swab Machine Alcohol Prep Pad Production Packaging Equipment 400pcs/min 4

6.Goodsealin
Tight sealing withoutliquid leakage andbubbling under thepremise of high liquiddosing four-side heat seal to make sure the precision heat sealing.

 Disinfection Alcohol Swab Machine Alcohol Prep Pad Production Packaging Equipment 400pcs/min 5
6. Machine is main design for packing of bigger size alcohol pad,alcohol swab,alcohol wipes,wet wipes etc. Disinfection Alcohol Swab Machine Alcohol Prep Pad Production Packaging Equipment 400pcs/min 6
