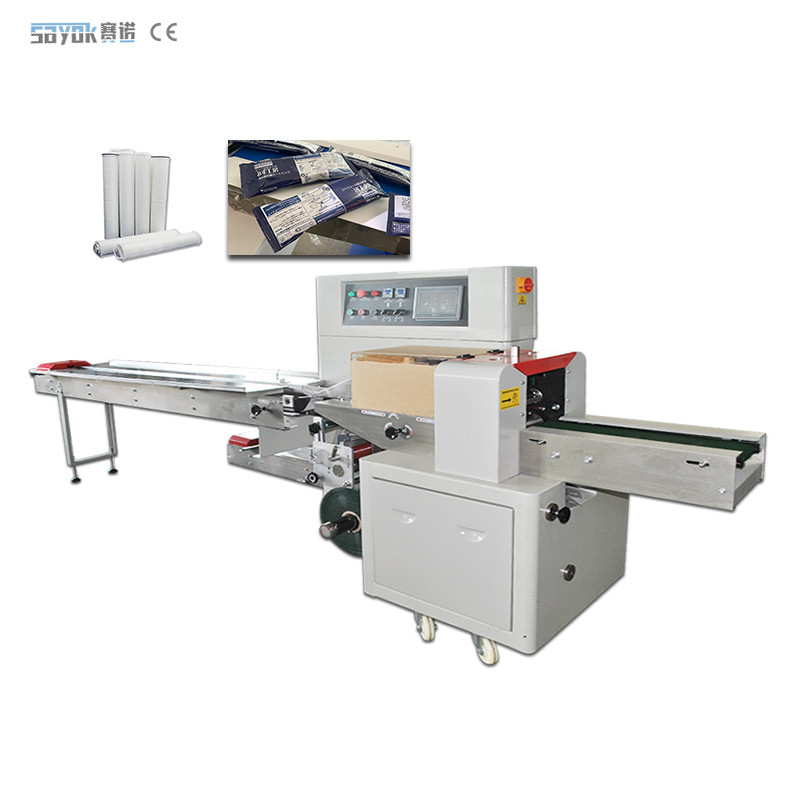

Automatic Horizontal Purification Cartridge Flow Packaging Machine 220v
Efficient And Easy To Operate Pillow Packing Machine For Plaster Stickers
Automatic Horizontal Wrapper Pillow Packing Machine Flow Wrapping Machine
It's important to note that while pillow packaging machines are versatile and widely applicable, the specific features and capabilities of each machine may vary depending on the manufacturer and the intended application. Different models may have additional features for specific industries or product requirements.
Facture:
1.Packaging Speed: This refers to the rate at which the machine can package products per minute or per hour. The speed can vary from a few dozen to hundreds of packages per minute, depending on the machine's design and capabilities.
2.Packaging Size Range: Pillow packing machines can accommodate a range of product sizes. The minimum and maximum dimensions of the products that can be packaged will be specified by the manufacturer. This includes the length, width, and height of the product.
3.Film Width: The maximum width of the packaging film that can be used with the machine. This determines the maximum size of the packages that can be produced.
4.Film Type: Pillow packing machines can handle various types of flexible films, including polyethylene (PE), polypropylene (PP), laminated films, and other plastic materials. The machine may be designed to work with specific film types, so it's important to ensure compatibility.
5.Electrical Requirements: The power supply requirements of the machine, including voltage, phase, and frequency. This information is crucial for proper installation and operation.
It's important to note that while pillow packaging machines are versatile and widely applicable, the specific features and capabilities of each machine may vary depending on the manufacturer and the intended application. Different models may have additional features for specific industries or product requirements.
Specifications:
Model | SN-250X/350X/450X/600X/700X |
Packing film | composite |
Packing Speed | 40-120bags/min |
Packing Size |
L*W 65-330mm*30-330mm |
Power Supply | 220v 50/60Hz |
Power | 2.5KW |
Machine size | L3770 × W670 × H1450mm(mm) |
Feeder | 1610*1030*1240mm |
Machine Weght | Approx 410kg |
Degree of automation | Automatic |
Processing customization | Customized processing is available |
Material Type | Solid |
Applicable objects | Gifts, crafts, food, clothing, home textiles, chemicals, toys, restaurants, daily chemicals, pharmaceuticals, hardware, machinery |
Machine Details:
1. Packaging machine appearance It can realize the one-step process of material release, packaging and sealing and cutting |
|
2.Linkage film winding Adopt multi-linked film rolls to coordinate film link, adapt to more rolled film materials. The rolled film is smoother and more effective in preventing the upper rolled film from running off. |
|
3. Conveyor device
Stainless steel operating platform cassette positioning conveyor belt device |
|
4.Fully automatic sealing and cutting The sealing and cutting shrinkage is completed in a single pass, realizing unmanned automatic operation. |
|
5. Self-locking gimbal Move at any time as required, press to self-lock and lock at any time |
|
6. Widely use in food, electric, toys, daily use, books, hardwares etc products' protective wrapping |
|
