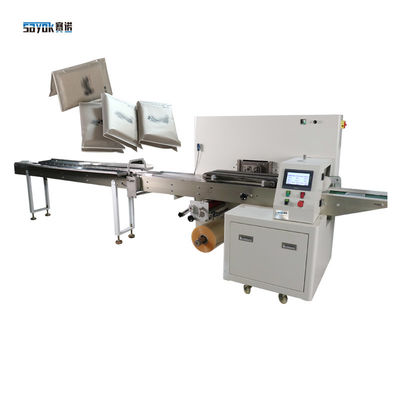

Horizontal 220V Wallet Type Advertising Tissue Paper Packaging Machine Low Energy
Facture:
1. Adopting three-axis full digital servo to control the film arrangement, sealing and cutting, and film wrapping respectively..
2. Structure is simplized, ensure of the precise of placement, then improving the packing speed and capacity.
3. Adopting high quality big brand accessory parts, make sure of equipment's high performance and stable operating.
4. Failure rate is low, then the maintenance cost is recudcing. Save time and cost accordingly.
5. Adopting film rolls and automatic bag forming design, reduce packing materials cost comparising with premade bag.
6. Separate PID control to temperature, suitable for various packing materials;
Quick Details:
1. Large PLC operating screen, easy for operating.
2. Can adjust bag length in operating screen directly, very convenient in changing data settings.
3. All the controls are achieved by software, convenient for function adjusting and upgrading.
4. Automatic counting is available to facilitate manual entry into the box.
5. Self diagnosis failure function, clear failure display, easy to elimate failure accordingly.
6. Simple driving system, reliable working, convenient maintenance.
Specifications:
Model | SN-350XW |
Packing film | 350MM |
Packing Speed | 30-100bags/min |
Bag length |
100mm-130mm |
Bag width |
80mm-120mm |
Power Supply | 220v 50/60Hz |
Power | 3.8KW |
Machine size | 4600x1200x1420mm |
Machine Weght | Approx 800kg |
Degree of automation | Automatic |
Processing customization | Customized processing is available |
Material Type | Solid |
Applicable objects | Gifts, crafts, food, clothing, home textiles, chemicals, toys, restaurants, daily chemicals, pharmaceuticals |
Machine Details:
1. Packaging machine appearance It can realize the one-step process of material release, packaging and sealing and cutting |
![]() |
2.Linkage film winding Adopt multi-linked film rolls to coordinate film link, adapt to more rolled film materials. The rolled film is smoother and more effective in preventing the upper rolled film from running off. |
![]() |
3. Conveyor device Stainless steel operating platform cassette positioning conveyor belt device |
![]() |
4.Fully automatic sealing and cutting The sealing and cutting shrinkage is completed in a single pass, realizing unmanned automatic operation. |
![]() |
5. Self-locking gimbal Move at any time as required, press to self-lock and lock at any time |
![]() |

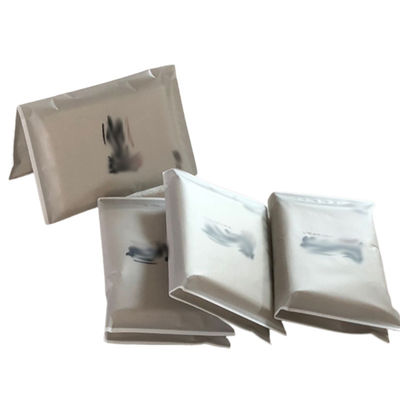

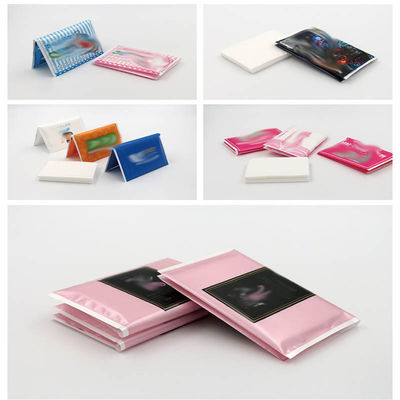

6. Flat and beautiful appearance of the finished package |
|
