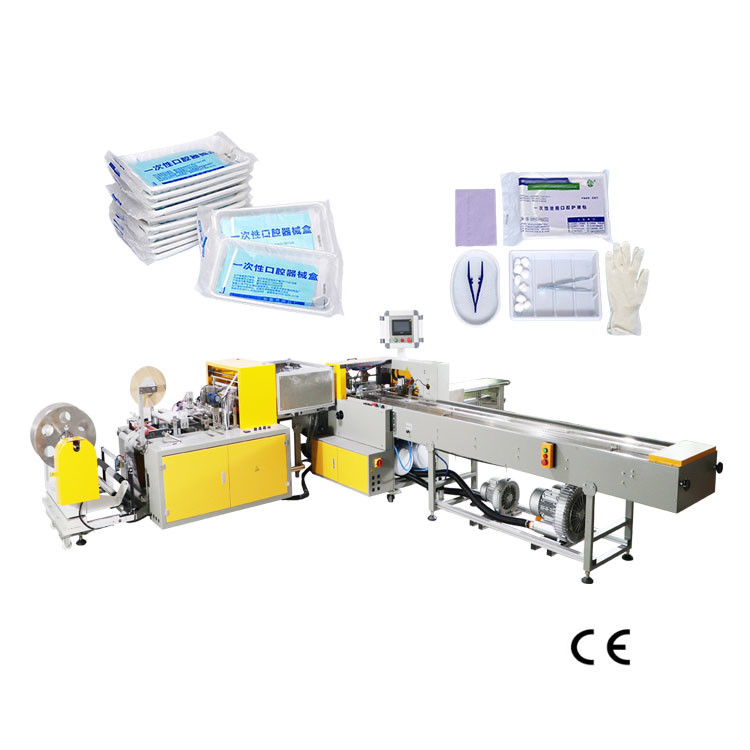

15kw Automatic Packing Machinery For Dental Instrument Kit Bag Filling Machine

1 set
MOQ
EXW US$33070 -38000/set
Price
15kw Automatic Packing Machinery For Dental Instrument Kit Bag Filling Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Specifications: Automatic Packing Machinery
Capacity: High
Noise: Low
Function: Filling, Bagging, Sealing
Automatic Grade: Full Automatic
Spare Parts: 1 Set Free With Machines
After-sales Service: Video Technical Support
After Warranty Service: Video Technical Support
Highlight:

15kw Automatic Packing Machinery

,

Automatic Packing Machinery For Dental Kit

Basic Infomation
Place of Origin: China
Brand Name: Sayok
Certification: CE
Model Number: SN-350ZD
Payment & Shipping Terms
Packaging Details: Exported wooden case
Delivery Time: 30 working days
Payment Terms: T/T,
Supply Ability: 50 set /month
Product Description

Widely Use Automatic Bagging Filling Machine For Dental Instrument Kit



Facture:





1. Can perform the packaging process automatically, reducing manual intercention and labors, and then improving the production efficiency.

2. Suitable for different specifications of bags and various products, it is premade bag design and meet many industries requires

3. Adjustability: It can be adjusted and optimized according to the size, shape and weight of different products to achieve the best packaging effect.

4. Through the control of light, electricity and gas, the fault can be self-diagnosed and displayed clearly..

5. Intermittent sealing is better to ensure the beauty of the sealing and avoid leakage.

6. Optional labeling machine to post product details.





Quick Details:



1. high-quality materials and components are used to ensure the durability and reliability of the machine.

2. can operate at high speed to achieve fast and continuous packaging.

3. Equipped with advanced sensors and control systems to ensure accurate positioning and filling of bags to achieve precise product packaging.

4. Automatic counting is available to facilitate manual entry into the box.

5. The packaging material is consumable.

6. Packaging machine can be adapted to specific requirements.







Specifications:



Model

SN-350ZD

Width of bag

100-280mm

Height of product 1-15 mm
Max length of bag 300 mm

Packing Film

OPP, CPP, PP material; it requires the use of a roll,, the inner shaft diameter of 75mm; the film surface is required to be flat, the edge should not be wave-shaped, contrast of color scale and packaging film background color is required to be obvious.

Film Thickness

0.025-0.06 mm
Film roll requirements

Need to fold in half,keep the tongue

Tongue length

≤30mm (Determined by bag length and bag width)

Packing Speed

20-45 bags/min (depends on product)

Rated air pressure

0.6mpa<pressure<0.8mpa

Power Supply

380v 50/60hz 15kw

Air Source

0.4-0.8MPa

Machine size

6000*4000*800mm
Operating Workbench 800 mm
Machine Weght Approx 1200 kg







Machine Details:



1.  Horizontal  packing machine

It can realize the one-step process of material release, packaging and sealing and cutting

15kw Automatic Packing Machinery For Dental Instrument Kit Bag Filling Machine 0

2.Automatic bag making

Roll film on the machine, automatic bag-making edge sealing beautiful, sticky bags seamless.

15kw Automatic Packing Machinery For Dental Instrument Kit Bag Filling Machine 1

3. Optional euro hole punching, date coding, cards automatic feeding, automatic counting etc.

15kw Automatic Packing Machinery For Dental Instrument Kit Bag Filling Machine 2



4.Intelligent pushing

The product is automatically pushed at the entrance end of the bag according to the different product configurations.

15kw Automatic Packing Machinery For Dental Instrument Kit Bag Filling Machine 3

5. Packaging

we adopt wooden case as package type. It's suitable for long-distance transport.According to customers' special demand, we could adopt sheet iron case and so on.

15kw Automatic Packing Machinery For Dental Instrument Kit Bag Filling Machine 4
6. Back Sealing Type Packing Machine, automatic adhesive back tape.

15kw Automatic Packing Machinery For Dental Instrument Kit Bag Filling Machine 515kw Automatic Packing Machinery For Dental Instrument Kit Bag Filling Machine 6
