Features Gallery Product Description Request A Quote

Features

Specifications

Attitude: Intact

Applicable Industries: Food, Beverage, Commodity, Medical, Chemical

Packaging Material: Cardboard Box

Key Selling Points: Long Service Life

Automatic Grade: Automatic

Driven Type: Mechanical

After-sales Service: Video Technical Support

OEM/ODM: YES

Highlight:

ODM Automatic Bottom Sealer

Carton Unpacking Automatic Bottom Sealer

Basic Infomation

Place of Origin: China

Brand Name: Sayok

Certification: CE

Model Number: SM K20TX

Payment & Shipping Terms

Packaging Details: Exported wooden case

Delivery Time: 15-30 working days

Payment Terms: T/T, Western Union, Western Union, Western Union

Supply Ability: 50 set /month

Gallery

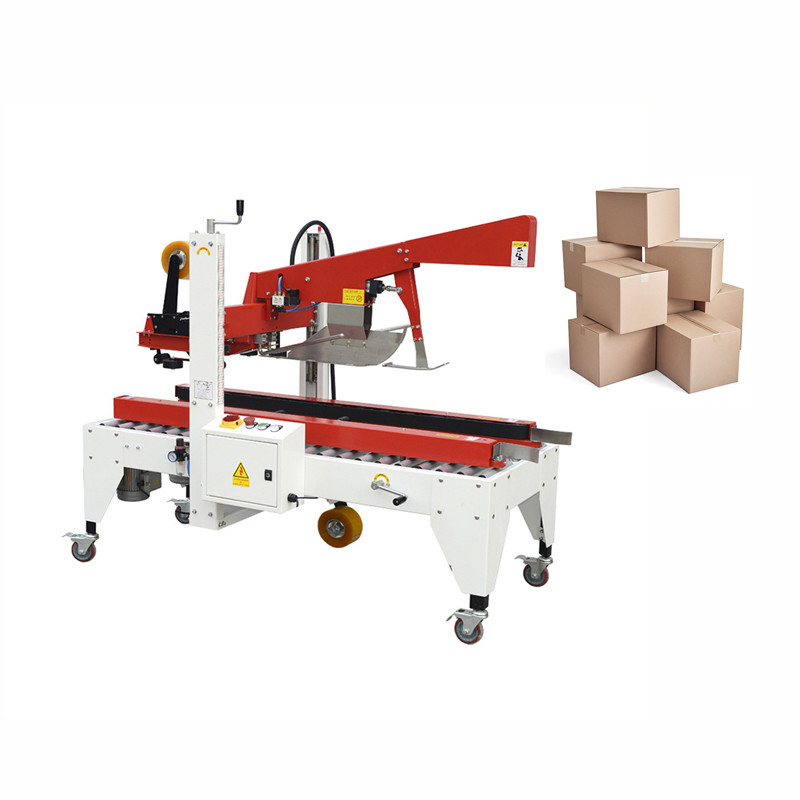

ODM Automatic Bottom Sealer Carton Box Unpacking And Sealing Unpack Machine

Product Description

Automatic Bottom Sealer Carton Box Unpacking and Sealing Unpack Machine

Name: ODM Automatic Bottom Sealer Carton Box Unpacking And Sealing Unpack Machine
Brand: Foshan Sayok Intelligent Machinery Co., Ltd.，
SKU: SM K20TX
Price: 10,950.00 USD
Availability: InStock

The sealing machine adopts high strength grip conveyor belt to both sides of the carton drive transmission smoothly, tape sealing centered. Scope of application: home appliances, textiles, food, cosmetics, daily-use department store, medicine, chemical and other manufacturing industries.

1. The upper sealing box can stand up, and it is more convenient to change the tape. The inner liner of the leading sealing machine is reasonably designed, and the length of the tape can be adjusted to fit the side of the carton.

2. Adopt high strength grip conveyor belt to both sides of the carton drive transmission is smooth, tape sealing centered, durable.

3.Conveying roller, easy flow, wear resistance and long life. Smoother and smoother conveying, suitable for any carton.

4. High quality configuration, wiring and layout in line with the design requirements, simple and beautiful process. Improve system automation and packaging speed to meet the production process requirements.

5. The liner is reasonably designed to adjust the length of the tape to fit the side of the carton equipped with blade guards to avoid accidental stab wounds during operation, better quality and more durable

ODM Automatic Bottom Sealer Carton Box Unpacking And Sealing Unpack Machine 0

Specifications:

Model	SN-
Packing film	Cardboard box
Packing Speed	20boxs/min
Suitable carton size range	L200-600mm, W150-500mm, H150-500mm
Power Supply	220 50Hz
Power	400W
Machine size	L1780W930H1600mm
Feeder	L1880W1030H1700mm
Machine Weght	Approx 500/600kg

Pressure	6kgf/cm2 , 450nl/min
Degree of automation	Automatic
Processing customization	Customized processing is available
Material Type	Corrugated paper
Applicable objects	Gifts, crafts, food, clothing, toys, restaurants, daily chemicals, pharmaceuticals, hardware, machinery

Machine Details:

1. Packaging machine appearance It can realize the one-step process of material release, packaging and sealing and cutting
2.Fully Automatic Flaps Folding CartonSealer Auto Adjust The Height And TheWidth For Different Size Of Cartons
3. Control Panel Simple operation and easy adjustment.With emergency stop switch,convenient and safe.
4.Thickened conveyor belt High power transmissionefficiency, not easy to wearand break.
5. Universal casters Wear resistance, easy to move. Withbrake, it is not easy to slide after fixing
6. Multiple sizes available

Tag:

Contact Person :	Ms. Jane
Tel :	86-13927265365
Fax :	86-757-8660-5060
