Easy to Operate Auto Case Erector Automatic Vertical Packing Machine

1 set
MOQ
EXW US$6900 -15000/set
Price
Easy to Operate Auto Case Erector Automatic Vertical Packing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Attitude: Intact
Applicable Industries: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
Packaging Material: Cardboard Box
Key Selling Points: Easy To Operate
Automatic Grade: Automatic
Driven Type: Mechanical
After-sales Service: Video Technical Support
OEM/ODM: YES
High Light:

Easy to Operate Auto Case Erector

,

Vertical Packing Auto Case Erector

,

Box Erector

Basic Infomation
Place of Origin: China
Brand Name: Sayok
Certification: CE
Model Number: SM K20TX
Payment & Shipping Terms
Packaging Details: Exported wooden case
Delivery Time: 15-30 working days
Payment Terms: T/T, Western Union, Western Union, Western Union
Supply Ability: 50 set /month
Product Description

Auto case erector box erector automatic vertical packing machine carton erector case carton sealer



Facture:

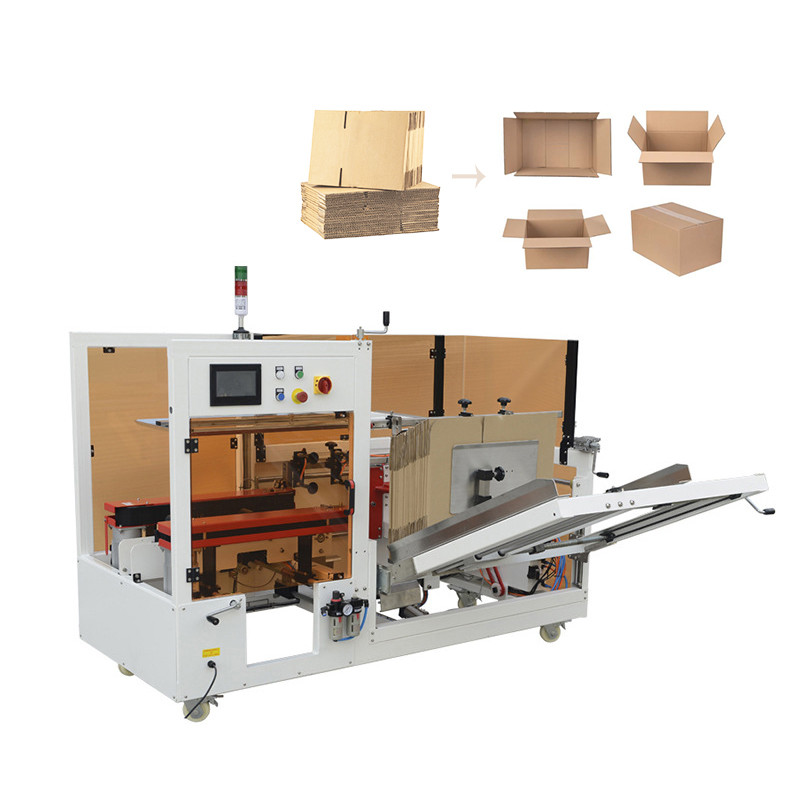

The Automatic Carton Erector is vertical carton box forming machine, speed up to 8-12 boxes/min. PLC with interface control,non stop in whole process,which is-suction box,forming,folding bottom and sealing, easy operation and maintenance,stable. Suitable in Food, Medicine, Beverage, Daily necessities, Hardware, Electronic and other industries.



Case Erector

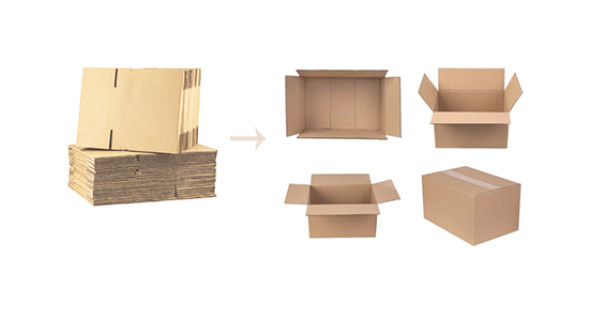

1. Automatically complete the unpacking, forming, bottom bending and bending, and at the same time complete the bottom tape sticking, saving time and labor
2, A wide range of short carton, easy adjustment of different sizes of carton
3, The whole operation is stable and reliable, the packaging effect is solid and beautiful
4, Configuration is high, the main components use international famous brands
5, The equipment is simple, easy to maintain
6, Automatically correct the carton straight angle






Easy to Operate Auto Case Erector Automatic Vertical Packing Machine 0

Easy to Operate Auto Case Erector Automatic Vertical Packing Machine 1



Specifications:



Model

SM K20TX

Packing film Cardboard box
Packing Speed

6-10baxes/min

Packinggdimensions

280≤L≤550mm 160≤W≤400mm

510≤L+W≤1000mm 285≤H+W/2≤620mm

Power Supply 220/380 50Hz
Power 400W
Machine size L2100mm*W2050mm*H1450mm
Feeder L2230mm*W2180mm*H1580mm
Machine Weght Approx 500/600kg





Pressure

6kgf/cm2 , 450nl/min

Degree of automation Automatic
Processing customization Customized processing is available
Material Type Corrugated paper
Applicable objects Gifts, crafts, food, clothing, toys, restaurants, daily chemicals, pharmaceuticals, hardware, machinery





Machine Details:



1. Packaging machine appearance

It can realize the one-step process of material release, packaging and sealing and cutting

Easy to Operate Auto Case Erector Automatic Vertical Packing Machine 2

2.Control panel
Easy to operate, withemergency stop switch

Easy to Operate Auto Case Erector Automatic Vertical Packing Machine 3

3. Gas source treatment
The pressure can beadjusted by drainingwater from the filter.

Easy to Operate Auto Case Erector Automatic Vertical Packing Machine 4

4.Thickened conveyor belt
High power transmissionefficiency, not easy to wearand break.

Easy to Operate Auto Case Erector Automatic Vertical Packing Machine 5

5. Pressure plateheight adjustment
The height of the pressingplate can be adjustedaccording to the top coverof the carton.

Easy to Operate Auto Case Erector Automatic Vertical Packing Machine 6
6. Multiple sizes available

Easy to Operate Auto Case Erector Automatic Vertical Packing Machine 7
