Plasticine Sealing Packing Cutting Machine Extruding Automatic

1 set
MOQ
EXW US$13538-15078/set
Price
Plasticine Sealing Packing Cutting Machine Extruding Automatic
Features Gallery Product Description Request A Quote
Features
Specifications
Function: Automatic Alarming
Spare Parts: 1 Set Free With Machine
Power Type: Electric
Condition: New
Automatic Grade: Automatic
Certification: CE
Warranty Period: 1 Year
After Sales: Video Technical Support
Highlight:

Plasticine Packing Cutting Machine

,

Packing Cutting Machine Extruding

,

Plasticine Sealing Packaging Machine

Basic Infomation
Place of Origin: China
Brand Name: Sayok
Certification: CE
Model Number: SN-350XT
Payment & Shipping Terms
Packaging Details: Exported wooden case
Delivery Time: 25-30 working days
Payment Terms: T/T
Supply Ability: 100 set /month
Product Description

Easy Mold Changing Automatic Extruding Cutting Sealing Packaging Machine Bucket Pack



Features:



1. Intelligent in extruding size and shape, only need to change squeeze mode, very easy to operate;

2. 8. All the controls are achieved by software, convenient for function adjusting and upgrading.;

3. Professional: independent thermostat and heat balance make different packaging materials;

4. Automatic stop function, safe operation and preservation of film;

5. Convenience: low loss, labor saving, easy to operate and maintain.

6. Suitable for all kinds of muds, plasticine, clay, play dough etc packing.



Quick details



1:  Obviously cautions and signs, alerting workers from injury.

2:  Anti-cutting design, when detecting will cut, cutter will reverse.

3.  Optional code printer for date or batch number printing.

4.  Optional sealing wheel direction, can be straight grain or net end seal

5.  Stainless steel / carbon steel material: color: stainless steel metal color / silver white.

6.  Packing mode can be fix length or color mark tracking.



Technical Parameter



Model  SN-350XL
Film width Max.350mm
Bag length (Depend on product)
Bag width 20~80mm
Product height 0-60mm
Film roll diameter Max. 320mm
Packaging rate 30-150Bags/min
Power 220V 50/60HZ
Machine size (L)3750×(W)1400×(H)750mm
Machine weight 1100Kg



Detail Drawings

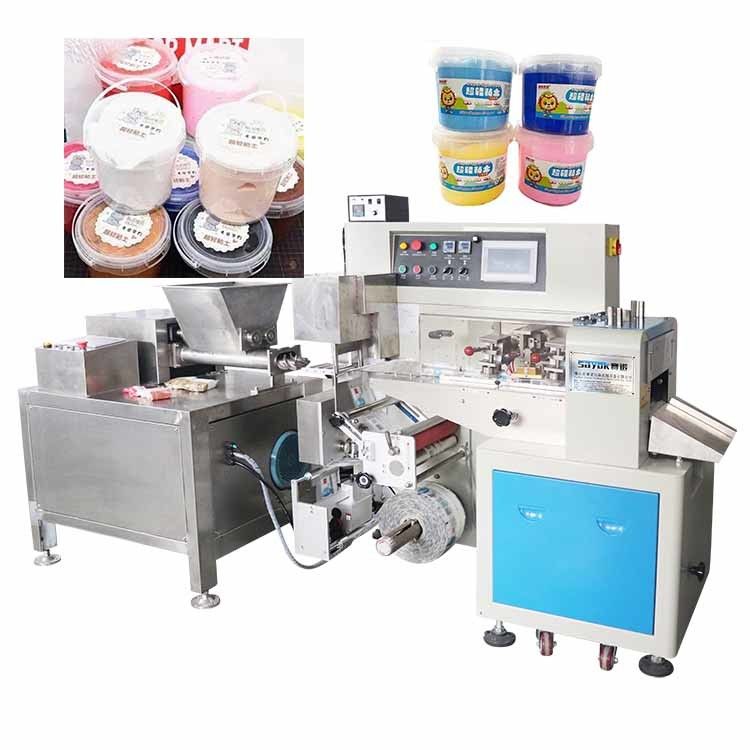

1. Group with extruder, cutting and packing machine, it is an intelligent full automatic packing line.



Function: bag - bag, filling, sealing, cutting, heating, date / batch number one-time implementation

Plasticine Sealing Packing Cutting Machine Extruding Automatic 0

2. Stainless steel or carbon steel appearance. PLC controller for extruding, cutting and packing, easy to operate and maintenance.



The packaging speed and the length of the bag can be set through the screen without change

Plasticine Sealing Packing Cutting Machine Extruding Automatic 1Plasticine Sealing Packing Cutting Machine Extruding Automatic 2
3. Workbench for extruder is 750mm from floor, easy for operators to replenish materials. Extruders can be increases according to buyer's color and weight requirements. Plasticine Sealing Packing Cutting Machine Extruding Automatic 3
4. Extrusion Outlet will be with model to control the extruded shape, size as requested. One machine will be with one model, other shape or size can be achieved by changing models, which is very easy to change. And settings can be change from PLC settings. Plasticine Sealing Packing Cutting Machine Extruding Automatic 4

5. Extruder is linking with packing machine, extruding then cutting and packing, no manual intervention. Full automatic and very safe in operation.  Packing machine mode will be different according to the packing size and weight.



Separate PID control to temperature, suitable for various packing materials

Plasticine Sealing Packing Cutting Machine Extruding Automatic 5

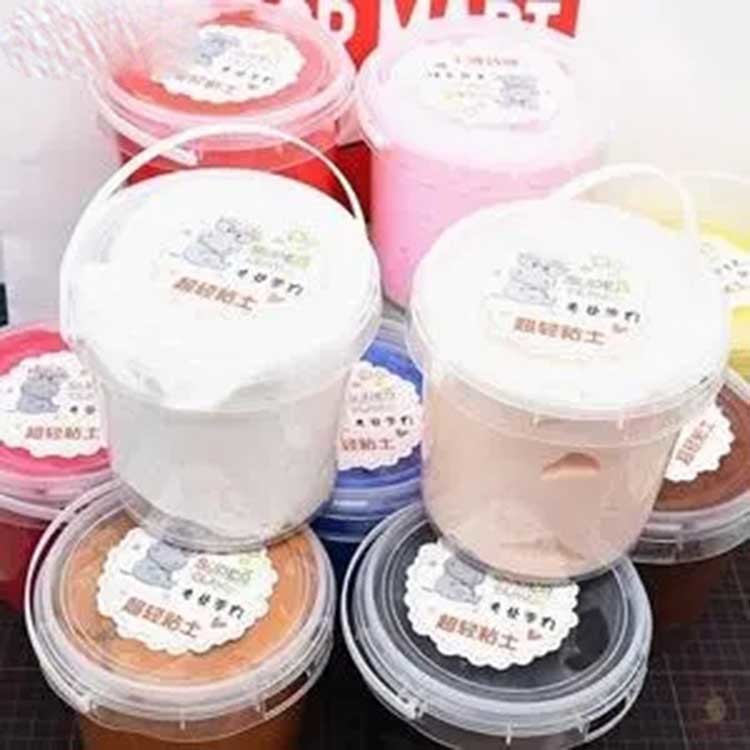

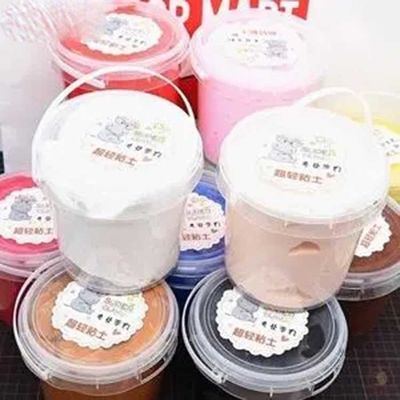

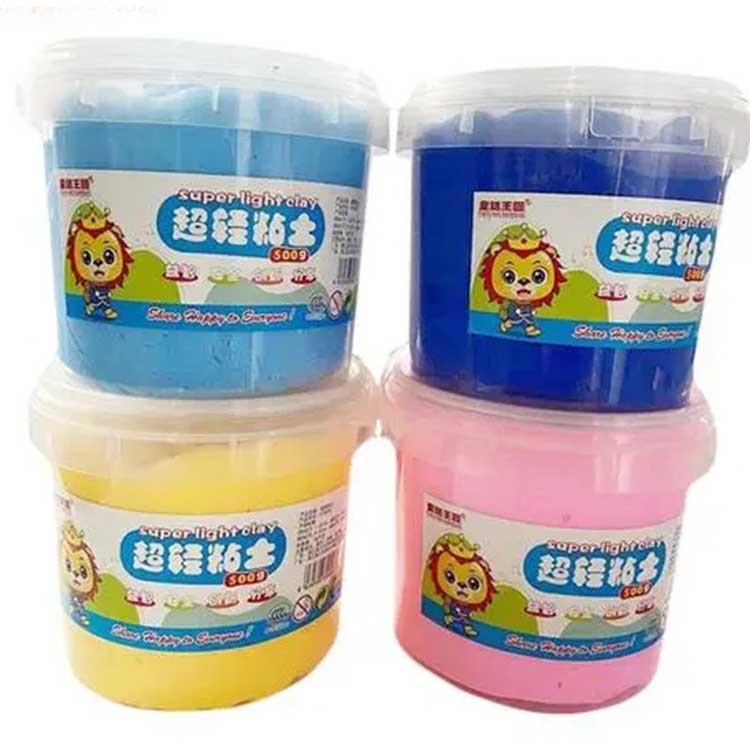

6. Applications: Light clay, color clay, plasticine, sealing clay, crystal mud, play dough, pottery clay and other special clay extruding and packaging. Can be pillow bag packing and barrel packing. Plasticine Sealing Packing Cutting Machine Extruding Automatic 6
