Clay Plasticine Automated Packaging Machine Line Extruding Cutting

1 set
MOQ
EXW US$13538-15078/set
Price
Clay Plasticine Automated Packaging Machine Line Extruding Cutting
Features Gallery Product Description Request A Quote
Features
Specifications
Function: Formulation Saving
Extruder: Volume And Power Can Be Customized
Power Type: Electric
Condition: New
Automatic Grade: Automated
Certification: CE
Warranty Period: 1 Year
After Sales: Video Technical Support
Highlight:

Plasticine Automated Packaging Line

,

Automated Packaging Line Extruding

,

Automated Packaging Machine Extruding

Basic Infomation
Place of Origin: China
Brand Name: Sayok
Certification: CE
Model Number: SN-350XT
Payment & Shipping Terms
Packaging Details: Exported wooden case
Delivery Time: 25-30 working days
Payment Terms: T/T
Supply Ability: 100 set /month
Product Description

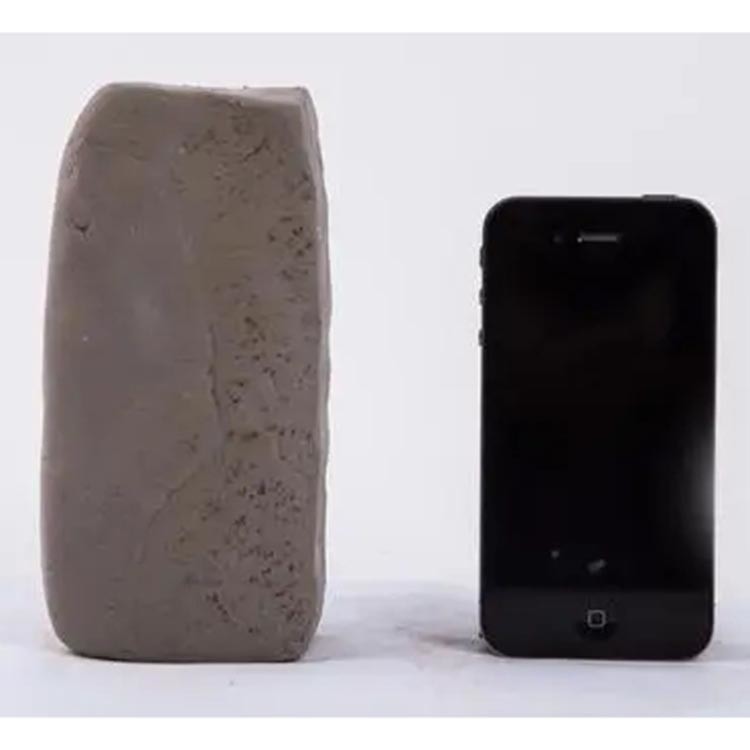

2KG Heavier Pottery Clay Mud Automatic Extruding Cutting Packaging Machine Line



Features:



1.  Automatic alarming once there are something wrong, and display the fault in screen, easy to find and remove;

2. Software with hot film dodging function to prevent packing film broken under long time waiting & touching with hot cutter;

3. Professional: independent thermostat and heat balance make different packaging materials;

4. Automatic stop function, safe operation and preservation of film;

5. Convenience: low loss, labor saving, easy to operate and maintain.

6. Suitable for all kinds of muds, plasticine, clay, play dough etc packing.



Quick details



1:  Extruder size can be customized according to product packed size and customer requirements.

2:  Quantitative production function, once reaching the set qty, machine stops automatically.

3. Optional code printer for date or batch number printing.

4. Optional sealing wheel direction, can be straight grain or net end seal

5. Stainless steel / carbon steel material: color: stainless steel metal color / silver white.

6. Packing mode can be fix length or color mark tracking.



Technical Parameter



Model  SN-350XL
Film width Max.350mm
Bag length (Depend on product)
Bag width 20~80mm
Product height 0-60mm
Film roll diameter Max. 320mm
Packaging rate 30-150Bags/min
Power 220V 50/60HZ
Machine size (L)3750×(W)1400×(H)750mm
Machine weight 1100Kg



Detail Drawings

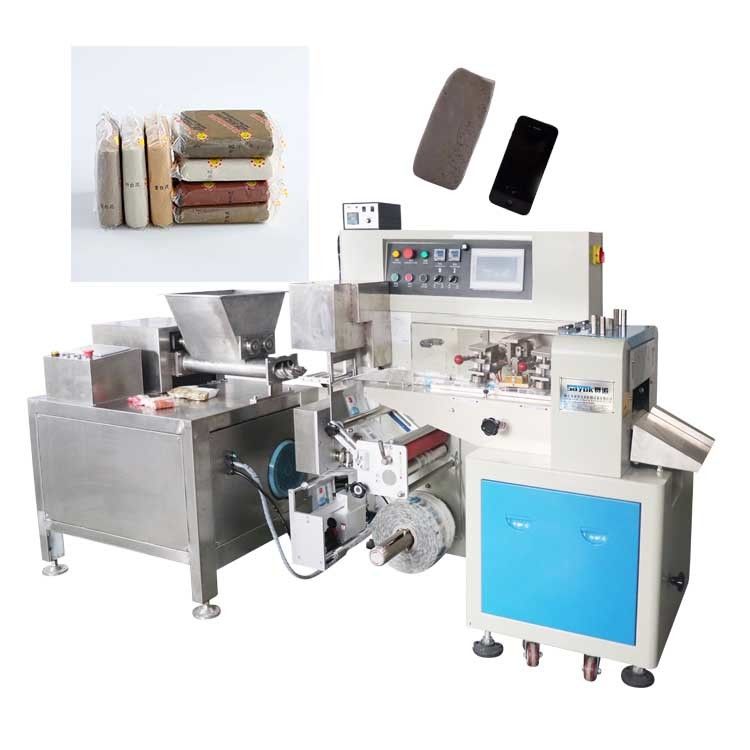

1. Group with extruder, cutting and packing machine, it is an intelligent full automatic packing line.



Function: bag - bag, filling, sealing, cutting, heating, date / batch number one-time implementation

Clay Plasticine Automated Packaging Machine Line Extruding Cutting 0

2. Stainless steel or carbon steel appearance. PLC controller for extruding, cutting and packing, easy to operate and maintenance.



The packaging speed and the length of the bag can be set through the screen without change

Clay Plasticine Automated Packaging Machine Line Extruding Cutting 1Clay Plasticine Automated Packaging Machine Line Extruding Cutting 2
3. Workbench for extruder is 750mm from floor, easy for operators to replenish materials. Extruders can be increases according to buyer's color and weight requirements. Clay Plasticine Automated Packaging Machine Line Extruding Cutting 3
4. Extrusion Outlet will be with model to control the extruded shape, size as requested. One machine will be with one model, other shape or size can be achieved by changing models, which is very easy to change. And settings can be change from PLC settings. Clay Plasticine Automated Packaging Machine Line Extruding Cutting 4

5. Extruder is linking with packing machine, extruding then cutting and packing, no manual intervention. Full automatic and very safe in operation.  Packing machine mode will be different according to the packing size and weight.



Separate PID control to temperature, suitable for various packing materials

Clay Plasticine Automated Packaging Machine Line Extruding Cutting 5

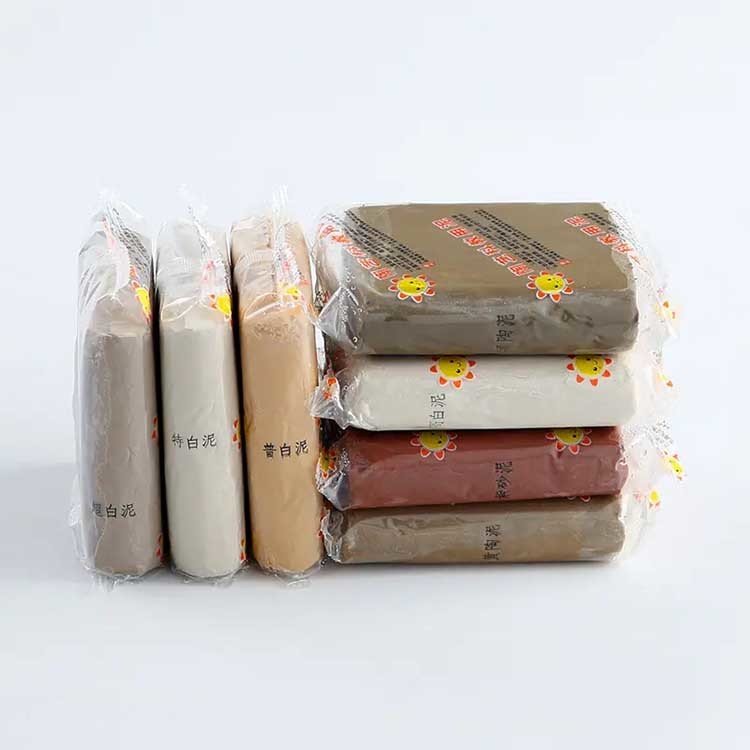

6. Applications: Light clay, color clay, plasticine, sealing clay, crystal mud, play dough, pottery clay and other special clay extruding and packaging. Can be pillow bag packing and barrel packing. Clay Plasticine Automated Packaging Machine Line Extruding Cutting 6
