Continuous Sealing Automatic Sausage Pillow Type Packer flow packing machine
Facture:
1. Double frequency conversioncontrol, bag length can be set and cut in one step saving time and films.
2. Interface features easy and quick setting and operation.
3. Self failure diagnosis , clear failure display.
4. High sensitivity photolelectric eye color tracking ,numerical input of cutting sealing position for extra accuracy.
5. Separate PID control to temperature, suitable for various packing materials.
6. Recoprocating type sealing device, firmer sealing, no wasting in mould sealing cutter.
7. Terminal sealing device, more beautiful bag shape, improving products level.
8. Positioned stop function,without sticking knife or wasting film.
9. Simple driving system, reliable working, convenient maintenance.
10. All control is realized through software,easy for function adjustting, and technical upgrade.
Our Services
1) Any inquiries will be replied within 12 hours.
2) Quality of products will be strictly checked and every machine will be test to confirm whether it works well before packing.
3) All the machines have 1 year warranty .
4) We have professional engineers , after-sales staff and a high-quality sales team to service you.
Suitable for packaging biscuits, chocolate, bread, vermicelli, instant noodles, moon cakes, medicine, daily necessities, industrial supplies, paper boxes, paper towels, trays, towels, egg rolls, preserved fruits, hawthorn slices, sausages and other sticky or bulk products, etc.
Specifications:
| Model | SN-250D/350D/450D |
| Packing film | composite |
| Packing Speed | 30-120bags/min |
| Packing Size |
L*W 65-330mm*30-110mm |
| Power Supply | 220 50/60Hz |
| Power | 2.5KW |
| Machine size | 4300x2100x1800mm |
| Feeder | 4400*2200*1900mm |
| Machine Weght | Approx 550kg |
| Degree of automation | Automatic |
| Processing customization | Customized processing is available |
| Material Type | Solid |
| Applicable objects | Gifts, crafts, food, clothing, home textiles, chemicals, toys, restaurants, daily chemicals, pharmaceuticals, hardware, machinery |
Machine Details:
|

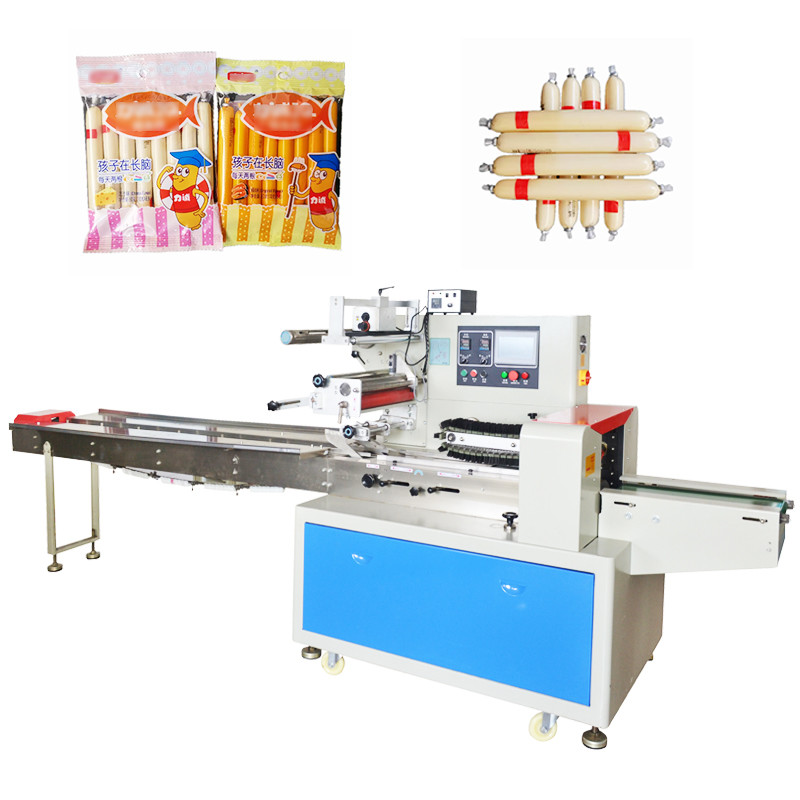

1. Packaging machine appearance It can realize the one-step process of material release, packaging and sealing and cutting |
 |
|
2.Linkage film winding Adopt multi-linked film rolls to coordinate film link, adapt to more rolled film materials. The rolled film is smoother and more effective in preventing the upper rolled film from running off. |
|
|
3. Conveyor device
Stainless steel operating platform cassette positioning conveyor belt device |
|
|
4.Fully automatic sealing and cutting The sealing and cutting shrinkage is completed in a single pass, realizing unmanned automatic operation. |
|
|
5. Self-locking gimbal Move at any time as required, press to self-lock and lock at any time |
|
| 6. Finished packaging, multiple bag types available |
|
