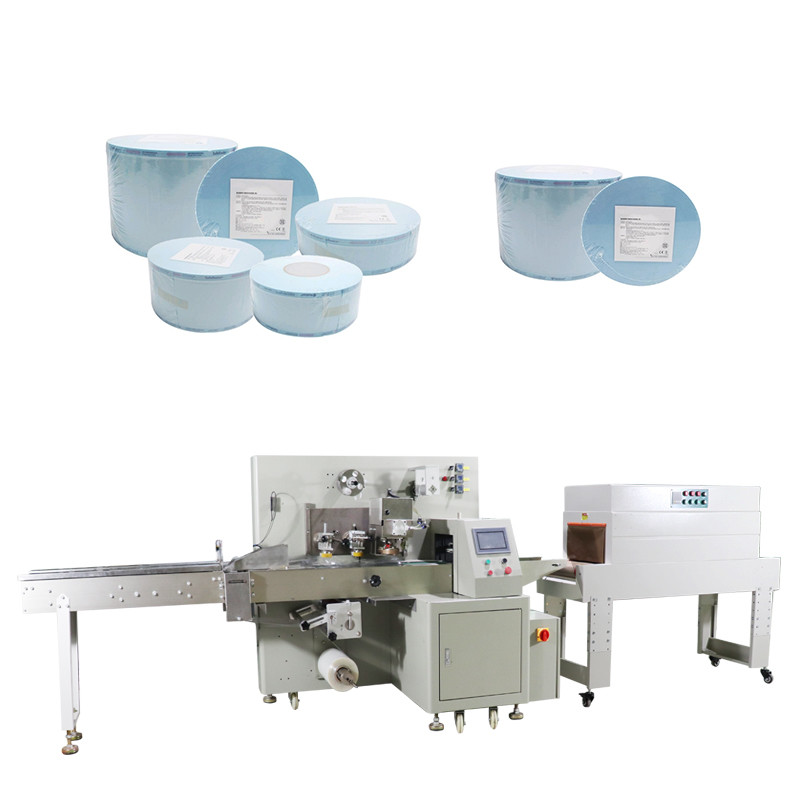

Automatic Heat Shrink Wrapping Packaging Machine Cutting Shrink Tunnel
Food, medicine, beverage group packaging, bowl noodles, milk tea, mosquito coils, wallpaper, exercise books, filters, electrical switches, plastic wrap, garbage bags, various stationery, industrial parts and daily cosmetics skin packaging, etc.
Facture:
1.imported PLC control, reduce the mechanical contact, the system more stable, reliable, easier maintenance.
2.Low failure rate; long bag, speed and temperature can be adjusted independently, easy to operate and accurate.
4.Cut-proof safety clutch device, does not damage the packaging.
6.High sensitivity photoelectric eye color mark tracking, mathematically input the sealing position, so that the sealing position is more accurate.
7.With digital display, can directly display the film size, packaging speed, output, temperature, etc.
Quick Details:
1. Widely use in daily necessities, cosmetics, food, medical etc many industries.
2. Adjust width of bag forming according to the product height width.
3. With waste collection, make the enviroment neat and clean.
4. Automatic counting is available to facilitate manual entry into the box.
5. The packaging material is consumable.
6. Packaging machine can be adapted to specific requirements.
Specifications:
| Model |
SN-450A/550A/650A/750A |
| Packing film |
PVC/POF/PE |
| Packing Speed |
5-30bags/min |
| Packing Size |
L*W*H <500mm*190mm*<150mm |
| Power Supply | 220v 50/60Hz |
| Power | 6KW |
| Machine size | 1650*800*1450mm,1100*560*660mm |
| Feeder | 1750*900*1550mm ,1200*660*760mm |
| Machine Weght | Approx 380kg,150kg |
| Degree of automation | Automatic |
| Processing customization | Customized processing is available |
| Material Type | Solid |
| Applicable objects | Gifts, crafts, food, clothing, toys, restaurants, daily chemicals, pharmaceuticals, hardware, machinery |
Machine Details:
|
1. Packaging machine appearance It can realize the one-step process of material release, packaging and sealing and cutting |
 |
|
2.Linkage film winding Adopt multi-linked film rolls to coordinate film link, adapt to more rolled film materials. The rolled film is smoother and more effective in preventing the upper rolled film from running off. |
|
|
3. Conveyor device
Stainless steel operating platform cassette positioning conveyor belt device |
|
|
4.Three types of conveyor belts are available Chain conveyor, Net conveyor Teflon mesh conveyor,
|
|
|
5. Self-locking gimbal Move at any time as required, press to self-lock and lock at any time |
|
| 6. Packing neat and good looking |
|
