220V Horizontal Plasticine Packing Machine 60HZ For Candy Mud Child Mud

1 set
MOQ
EXW US$13538-15078/set
Price
220V Horizontal Plasticine Packing Machine 60HZ For Candy Mud Child Mud
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Blank Or Printed Plastic Film
Machine Quality: Stainless Steel
Power Type: Electric
Condition: New
Automatic Grade: Automatic
Certification: CE
Warranty Period: 1 Year
After Sales: Video Technical Support
Highlight:

220V Plasticine Packing Machine

,

Horizontal Plasticine Packing Machine

,

Horizontal Packing Machine 60HZ

Basic Infomation
Place of Origin: China
Brand Name: Sayok
Certification: CE
Model Number: SN-350XT
Payment & Shipping Terms
Packaging Details: Exported wooden case
Delivery Time: 25-30 working days
Payment Terms: T/T
Supply Ability: 100 set /month
Product Description

Factory Hot Sale Horizontal Packing Machine For Plasticine Candy Mud Child Mud



Features:

1. Function: bag - bag, filling, sealing, cutting, heating, date / batch number one-time implementation;

2. Intelligence: the packaging speed and the length of the bag can be set through the screen without change;

3. Professional: independent thermostat and heat balance make different packaging materials;

4. Features: automatic stop function, safe operation and preservation of film;

5. Convenience: low loss, labor saving, easy to operate and maintain.

6. Suitable for all kinds of muds, plasticine, clay, play dough etc packing.



Quick details



1. Food grade SUS#304 contact parts

2. Two color touch screen 7", one for packing machine, another for extruder.

3. Can extruder out different product shapes

4. With safety guards

5. Accurate length cutting

6. With technical patent

7. Easy to operate and clean

8. Cutting can be change for different material

9. Can be modified to servo control

10.Only need 1 person to operate the machine, reduce labor costs



Technical Parameter



Model  SN-350XL
Film width Max.350mm
Bag length (Depend on product)
Bag width 20~80mm
Product height 0-60mm
Film roll diameter Max. 320mm
Packaging rate 30-150Bags/min
Power 220V 50/60HZ
Machine size (L)3750×(W)1400×(H)750mm
Machine weight 1100Kg



Detail Drawings

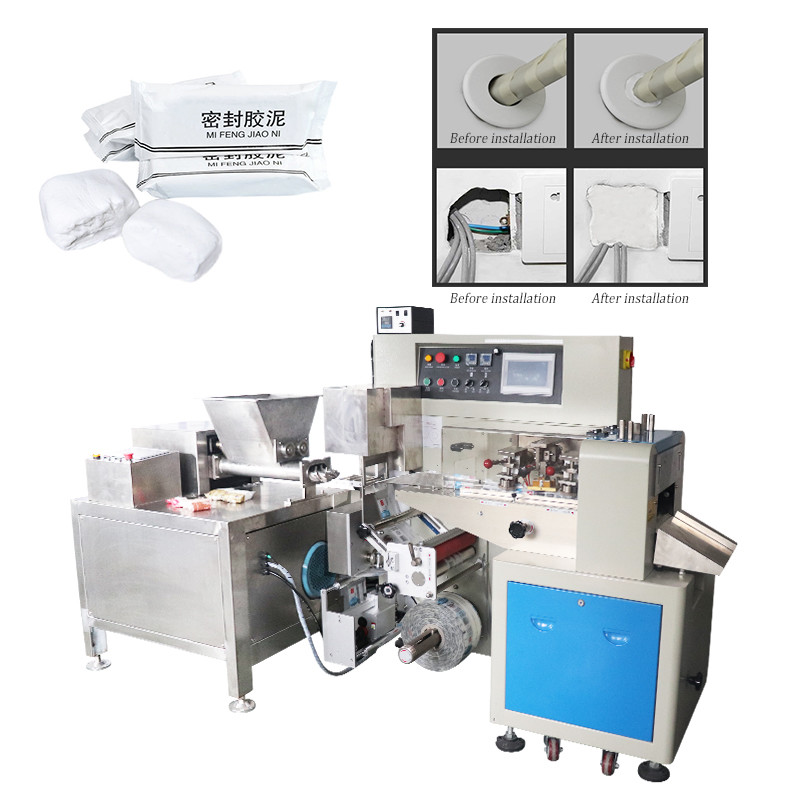

1. Group with extruder, cutting and packing machine, it is an intelligent full automatic packing line.



Function: bag - bag, filling, sealing, cutting, heating, date / batch number one-time implementation

220V Horizontal Plasticine Packing Machine 60HZ For Candy Mud Child Mud 0

2. Stainless steel or carbon steel appearance. PLC controller for extruding, cutting and packing, easy to operate and maintenance.



The packaging speed and the length of the bag can be set through the screen without change

220V Horizontal Plasticine Packing Machine 60HZ For Candy Mud Child Mud 1220V Horizontal Plasticine Packing Machine 60HZ For Candy Mud Child Mud 2
3. Workbench for extruder is 750mm from floor, easy for operators to replenish materials. Extruders can be increases according to buyer's color and weight requirements. 220V Horizontal Plasticine Packing Machine 60HZ For Candy Mud Child Mud 3
4. Extrusion Outlet will be with model to control the extruded shape, size as requested. One machine will be with one model, other shape or size can be achieved by changing models, which is very easy to change. And settings can be change from PLC settings. 220V Horizontal Plasticine Packing Machine 60HZ For Candy Mud Child Mud 4

5. Extruder is linking with packing machine, extruding then cutting and packing, no manual intervention. Full automatic and very safe in operation.  Packing machine mode will be different according to the packing size and weight.



Separate PID control to temperature, suitable for various packing materials

220V Horizontal Plasticine Packing Machine 60HZ For Candy Mud Child Mud 5
6. Applications: Light clay, color clay, plasticine, sealing clay, crystal mud, play dough, pottery clay and other special clay extruding and packaging. Can be pillow bag packing and barrel packing. 220V Horizontal Plasticine Packing Machine 60HZ For Candy Mud Child Mud 6
