Automatic Horizontal Wrapper Pillow Packing Machine Flow Wrapping Machine
Facture:
1.3 Servo motors , PLC controller , flexible bag length setting and cutting , saving time film.
2.Touchable human –machine operation , convenient and quick parameter seyying.
3.Self diagnosis failure function , clear failure display.
4.High sensitivity optical electical color mark tracking and digital input cut position which makes the sealing and cutting more accurate.
5.Separete PID control to temperature , suitable for various packing materials.
6.Stopping the machine in selected position , no , sticking to the knife and no waste packing film.
7.Simple driving system , reliable working , convenient maintenance.
8.All the controls is are achieved by software , convenient for function adjusting and upgrading.
9.Automatic detect material length , automatic packaging products , no product no packaging , don’t need to adjust the bag length.
Optional device:
1.Date coder
2.Automatic punching Device
3.Full Stainless
4.Large Touch Screen
5.Air filling device
6.Release the air
7.No empty bag function
8.Customized sealing patterns and notch
9.Automatic feeder
10. Automatic feeding device
Scope Of Application:
Food: cake, bread, biscuits, cookies, meat muffin, flaky pastry, moon cake, several sausage in a bag, noodles, beef jerky, egg roll, etc
Vegetables and Fruits: apples, bananas, lettuce, potatoes, tomatoes, peppers, cucumbers
Hardwares: hinge, stainless steel pipe,bearings , screw, nuts and washer, etc
Hotel Supplies: soap, disposable comb, tooth paste and brush in one set.
Stationary: pencil, eraser, notebook, paper card, adhensive tape
Electric Products: battery, usb cable, earphone, user manual and accessories in one set.
Medical: face mask, glove, gauze, capsule, disposable syringe.
Daily use: plastic knife, fork, plate, sponge, scourer, wipes, several straws in a bag, cups, bottles, napkin, baby diaper, etc.
Specifications:
| Model | SN-250X/350X/450X/600X/700X |
| Packing film | composite |
| Packing Speed | 40-120bags/min |
| Packing Size |
L*W 65-330mm*30-330mm |
| Power Supply | 220 50/60Hz |
| Power | 2.5KW |
| Machine size | L3770 × W670 × H1450mm(mm) |
| Feeder | 1610*1030*1240mm |
| Machine Weght | Approx 410kg |
| Degree of automation | Automatic |
| Processing customization | Customized processing is available |
| Material Type | Solid |
| Applicable objects | Gifts, crafts, food, clothing, home textiles, chemicals, toys, restaurants, daily chemicals, pharmaceuticals, hardware, machinery |
Machine Details:
|

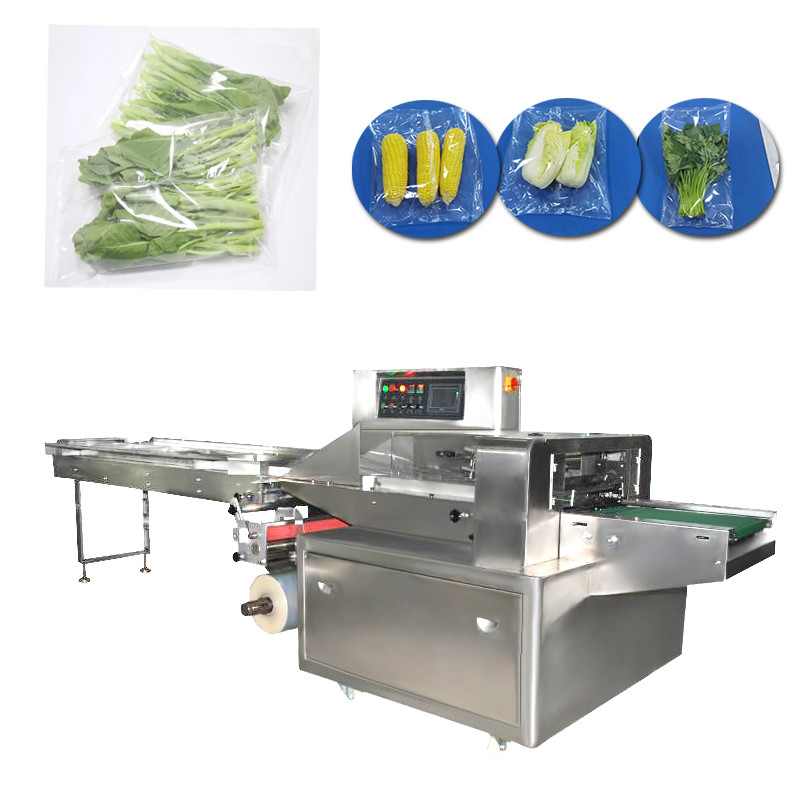

1. Packaging machine appearance It can realize the one-step process of material release, packaging and sealing and cutting |
 |
|
2.Linkage film winding Adopt multi-linked film rolls to coordinate film link, adapt to more rolled film materials. The rolled film is smoother and more effective in preventing the upper rolled film from running off. |
|
|
3. Conveyor device Stainless steel operating platform cassette positioning conveyor belt device |
|
|
4.Fully automatic sealing and cutting The sealing and cutting shrinkage is completed in a single pass, realizing unmanned automatic operation. |
|
|
5. Self-locking gimbal Move at any time as required, press to self-lock and lock at any time |
|
| 6. Packing neat and good looking |
|
