Automatic Horizontal Wrapper Pillow Packing Machine Flow Wrapping Machine
Pillow packaging machine is an automatic continuous shrink packaging equipment, using ordinary electric furnace wire heatingmethod, which is characterized by fast temperature, good stability, low maintenance costs, etc., shrinkage temperature and motor drive speed is stable and adjustable, and a wide range of adjustment; the original drum self-rotating device, can work continuously.
Facture:
1. Double frequency control, the bag length is set and cut, no need to adjust the empty walk, one-step, save time and film.
2. Text-based man-machine interface, convenient and quick parameter setting.
3. Fault self-diagnosis function, fault display at a glance.
4. Positioning stop function, no sticky knife, no film consumption.
5. High-sensitivity photoelectric color-coded tracking and digital input of cutting position make sealing and cutting more accurate.
6. Timing belt is adopted to make the machine work with low noise.
7. Simple driving system, reliable work and easy maintenance.
Scope Of Application:
Food: cakes, bread, cookies, cookies, meat muffins, flaky pastries, mooncakes, several sausages in bags, noodles, beef jerky, egg rolls, etc.
Vegetables and fruits: apples, bananas, lettuce, potatoes, tomatoes, peppers, cucumbers
Hardware: hinges, stainless steel tubes, bearings, screws, nuts and washers, etc.
Hotel supplies: soap, disposable combs, toothpaste and brush set
Stationery: pencils, erasers, notebooks, paper cards, adhesive tape
Electrical products: a set of batteries, USB cables, headphones, user manuals and accessories
Medical supplies: masks, gloves, gauze, capsules, disposable syringes
Daily necessities: plastic knives, forks, plates, sponges, rags, wet wipes, bags of several straws, cups, bottles, napkins, baby diapers, etc.
Specifications:
| Model | SN-250X/350X/450X/600X/700X |
| Packing film | composite |
| Packing Speed | 40-120bags/min |
| Packing Size |
L*W 65-330mm*30-330mm |
| Power Supply | 220v 50/60Hz |
| Power | 2.5KW |
| Machine size | L3770 × W670 × H1450mm(mm) |
| Feeder | 1610*1030*1240mm |
| Machine Weght | Approx 410kg |
| Degree of automation | Automatic |
| Processing customization | Customized processing is available |
| Material Type | Solid |
| Applicable objects | Gifts, crafts, food, clothing, home textiles, chemicals, toys, restaurants, daily chemicals, pharmaceuticals, hardware, machinery |
Machine Details:
|

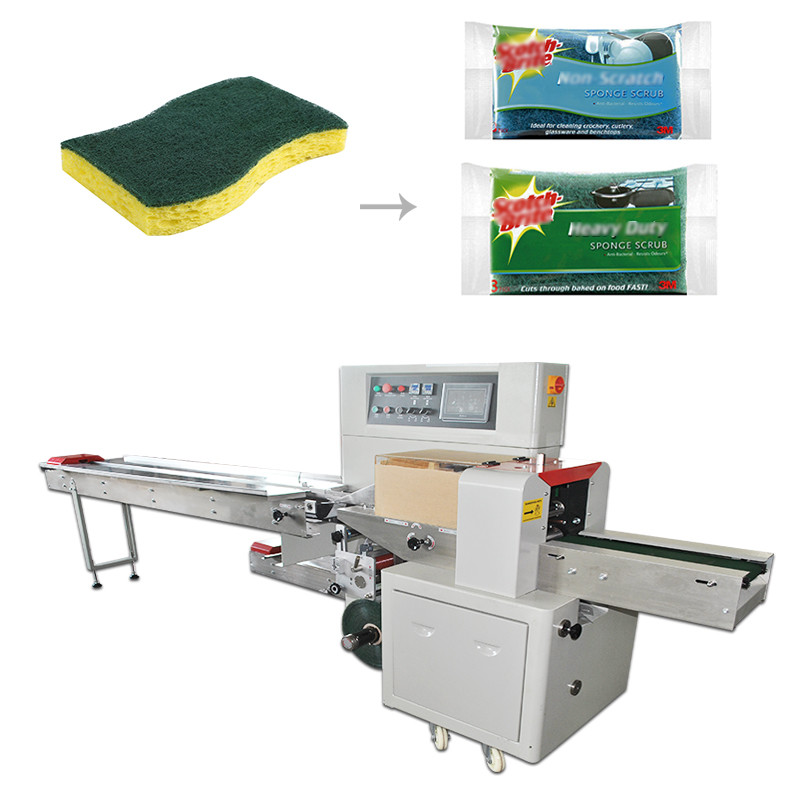

1. Packaging machine appearance It can realize the one-step process of material release, packaging and sealing and cutting |
 |
|
2.Linkage film winding Adopt multi-linked film rolls to coordinate film link, adapt to more rolled film materials. The rolled film is smoother and more effective in preventing the upper rolled film from running off. |
|
|
3. Conveyor device
Stainless steel operating platform cassette positioning conveyor belt device |
|
|
4.Fully automatic sealing and cutting The sealing and cutting shrinkage is completed in a single pass, realizing unmanned automatic operation. |
|
|
5. Self-locking gimbal Move at any time as required, press to self-lock and lock at any time |
|
| 6. Widely use in food, electric, toys, daily use, books, hardwares etc products' protective wrapping |
|
