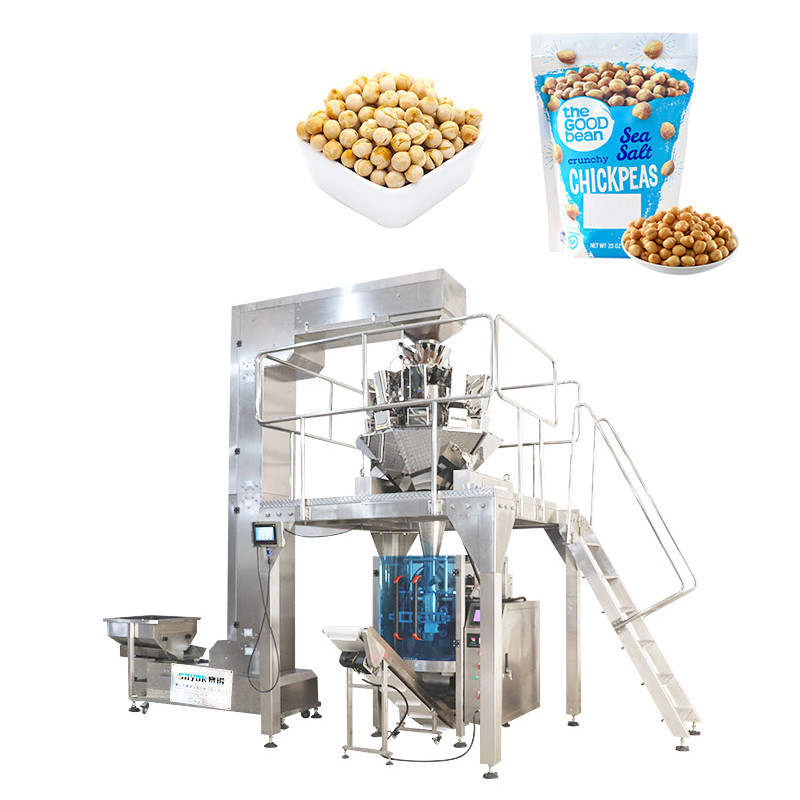

Automatic Chickpeas Bag Making, Weighing, Filling And Sealing Packaging Machinery
Combined parts
1.SN series main frame 2.10/14 heads weigher
3.Z type bucket elevator 4.Vibration feeder
Facture:
1. PLC control with stable,reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple .
4.Double servo control, high precision orientation, size more nicety.
5. High-sensitivity photoelectric eye tracking and digital input of sealing and cutting positions for more accurate sealing and cutting positions.
6. Close down type mechanism , defending powder into inside of machine.
1. The machine structure is compact, solid, stable, simple operation, easy maintenance.
2. This machine adopts programmable control system, large touch screen, intuitive and easy to understand.
3. Use servo film transporting system, accurate positioning, attractive packaging.
4. Automatic printing from measuring, filling, bag-making, date to the product delivery at once.
5. According to customer needs with a single package and even more bags of cut-off function, you can configure the punching device.
Specifications:
| Model | SN -420/520/720/820 |
| Packing Speed | 5-60 pack/min |
| Max width of roll film | 420mm/520mm/720mm/820mm |
| Bag length |
80-320mm/80-420mm/100-500mm/100-550mm |
|
Bag width |
50-200mm/50-250mm/100-350mm/180-400mm |
| Packing Size | L*W*H 60-280 * 60-200 * 30-100 mm |
| Power Supply | 220/380V 50/60Hz |
| Power | 5.5KW |
| Machine size | 1388*1116*1536 mm |
| Machine Weght | Approx 500kg |
Auxiliary equipment
| Feature |
SN series main frame |
| Power Supply | 220/380V 50/60 Hz |
| Power | Approx5.5 KW |
| Transmission method | Z-Lift Loader |
| Metering equipment | 0/14 head computerized combination scales |
| Packing Film | OPP, CPP, PE, PET |
Machine Details:
| 1. Horizonal design, fully automatic packing shrinking line |  |
|
2.Dosing device Multiple combination scales mainframe |
|
|
3. Auxiliary equipment Customized operating platform |
|
|
4.Auxiliary equipment Z-type bucket elevator has theadvantages of flexible composition,small damage to the material itselfand reduction of scrap rate.The shell of the whole machineis sealed to reduce dust flying |
|
| 5. Auxiliary equipment Finished product conveyor belt | |
|
6. Self-locking gimbal Move at any time as required, press to self-lock and lock at any time |
|
| 6.Multi-purpose machine for a variety of products |
|
