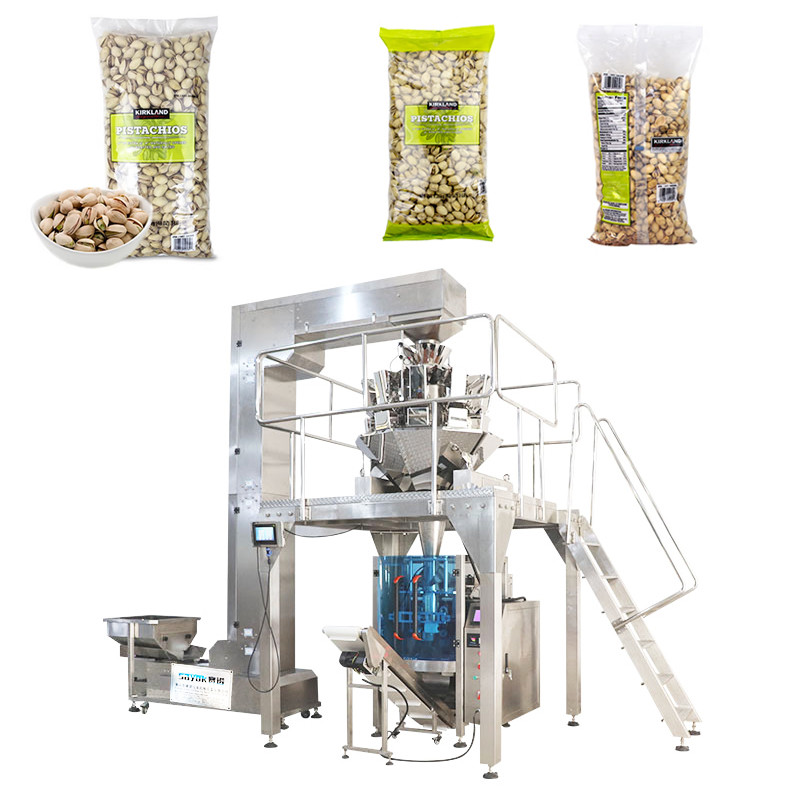

Automatic Pistachio vertical bag making, weighing, filling and sealing packaging machinery
Combined parts
1.SN series main frame 2.10/14 heads weigher
3.Z type bucket elevator 4.Vibration feeder
Facture:
1. PLC control with stable,reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
4. External film releasing mechanism: simpler and easier installation of packing film.
Quick Details:
1. Widely use in daily necessities, cosmetics, food, medical agriculture pastoralism etc many industries.
2. Adjust width of bag forming according to the product height width.
3. With waste collection, make the enviroment neat and clean.
4. Automatic counting is available to facilitate manual entry into the box.
5. The packaging material is consumable.
6. Packaging machine can be adapted to specific requirements.
7. Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple .
Application
Suitable for packaging many different kinds of products; such as puffy food, shrimp roll, peanut, popcorn, cornmeal, dried fruit, seed, small hardware,dumplings, vegetable, fruits and sugar etc.which shape is roll, slice and granule.
Specifications:
| Model | SN -420/520/720/820 |
| Packing Speed | 5-60 pack/min |
| Max width of roll film | 420mm/520mm/720mm/820mm
|
| Bag length |
80-320mm/80-420mm/100-500mm/100-550mm |
|
Bag width |
50-200mm/50-250mm/100-350mm/180-400mm |
| Packing Size | L*W*H 60-280 * 60-200 * 30-100 mm |
| Power Supply | 220/380V 50/60Hz |
| Power | 5.5KW |
| Machine size | 1388*1116*1536 mm |
| Machine Weght | Approx 500kg |
Auxiliary equipment
| Feature |
SN series main frame |
| Power Supply | 220/380V 50/60 Hz |
| Power | Approx5.5 KW |
| Transmission method | Z-Lift Loader |
| Metering equipment | 0/14 head computerized combination scales |
| Packing Film | OPP, CPP, PE, PET |
Machine Details:
| 1. Horizonal design, fully automatic packing shrinking line |  |
|
2.Dosing device Multiple combination scales mainframe |
|
|
3. Auxiliary equipment Customized operating platform |
|
|
4.Auxiliary equipment Z-Lift Loader |
|
| 5. Auxiliary equipment Finished product conveyor belt | |
|
6. Self-locking gimbal Move at any time as required, press to self-lock and lock at any time |
|
| 6.Multi-purpose machine for a variety of products |
|
