Electronic Accessories PE film composite packing machine machinery packing machine
Facture:
1. The machine adopts one axis all-digital and the same server to control the sheet arrangement, sealing and cutting, and coating respectively.
2. The mechanical structure is simplified, the positioning accuracy is ensured, and the speed and yield are improved.
3. Low maintenance cost, high reliability, using this machine can save labor (10-15 people),
4. Reduce material cost (bag making and gluing cost), improve production efficiency, reduce cost by 5 cents per bag,
5. The cost of purchasing equipment can be recovered in the month of normal production, and the problem of labor difficulties can be solved.
6. The machine adopts three servo CNC linkage, which is easy to adjust. The packaging size can be realized by directly modifying the parameters of the touch screen, and the adjustment range;
7. The main engine of the purse paper packaging machine is the turret that pushes the paper embryos from the fader through the conveyor belt into the machine, and then goes through the procedures of compression, packaging, folding, heat sealing, etc., until the purse paper is finished. Integrated packaging equipment.
Product scope of use:
Others: applicable to the hardware, medical and other industries with regular items and materials.
It is suitable for product packaging in the food industry, daily necessities industry, daily necessities industry, catering supplies industry, hardware industry, industrial supplies industry, plastic products industry, medical supplies industry, stationery and sports goods industry, toy products industry and other industries.
Specifications:
| Model |
SN-350xw |
| Packing film | composite |
| Packing Speed |
30-100 bags/min |
| Packing Size |
L*W 65-190mm*50-150mm |
| Power Supply | 220 50/60Hz |
| Power | 3KW |
| Machine size | 4020*720*1320mm |
| Feeder | 4100*820*1400mm |
| Machine Weght | Approx 550kg |
| Degree of automation | Automatic |
| Processing customization | Customized processing is available |
| Material Type | Solid |
| Applicable objects | Gifts, crafts, food, clothing, toys, restaurants, daily chemicals, pharmaceuticals, hardware, machinery |
Machine Details:
|

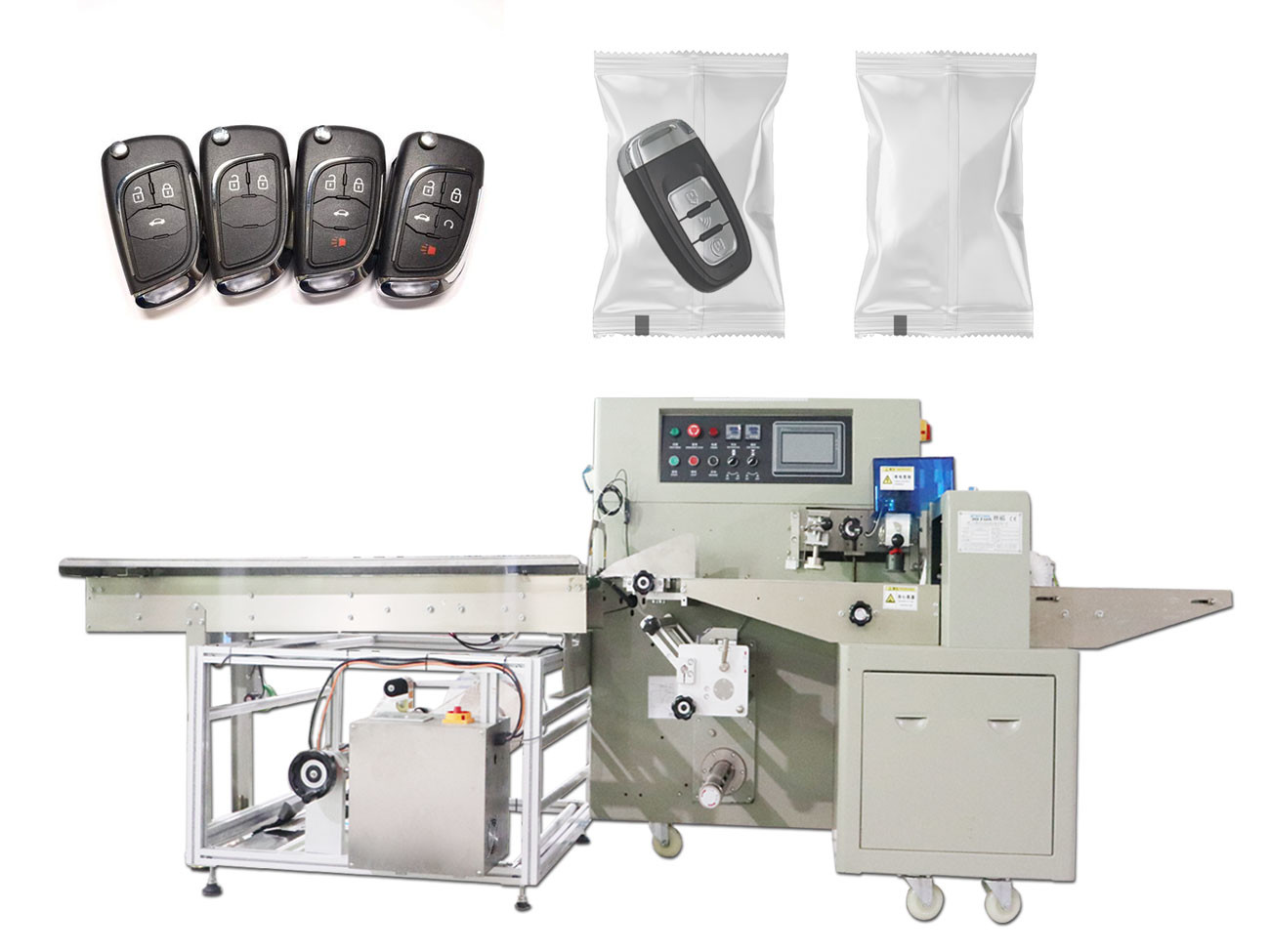

1. Packaging machine appearance It can realize the one-step process of material release, packaging and sealing and cutting |
 |
|
2.Linkage film winding Adopt multi-linked film rolls to coordinate film link, adapt to more rolled film materials. The rolled film is smoother and more effective in preventing the upper rolled film from running off. |
|
|
3. Conveyor device
Stainless steel operating platform cassette positioning conveyor belt device |
|
|
4.Fully automatic sealing and cutting The sealing and cutting shrinkage is completed in a single pass, realizing unmanned automatic operation. |
|
|
5. Self-locking gimbal Move at any time as required, press to self-lock and lock at any time |
|

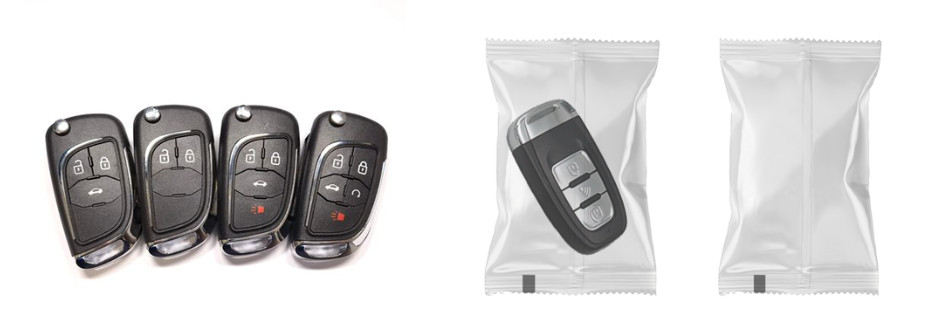

| 6. Packing neat and intact |
|
