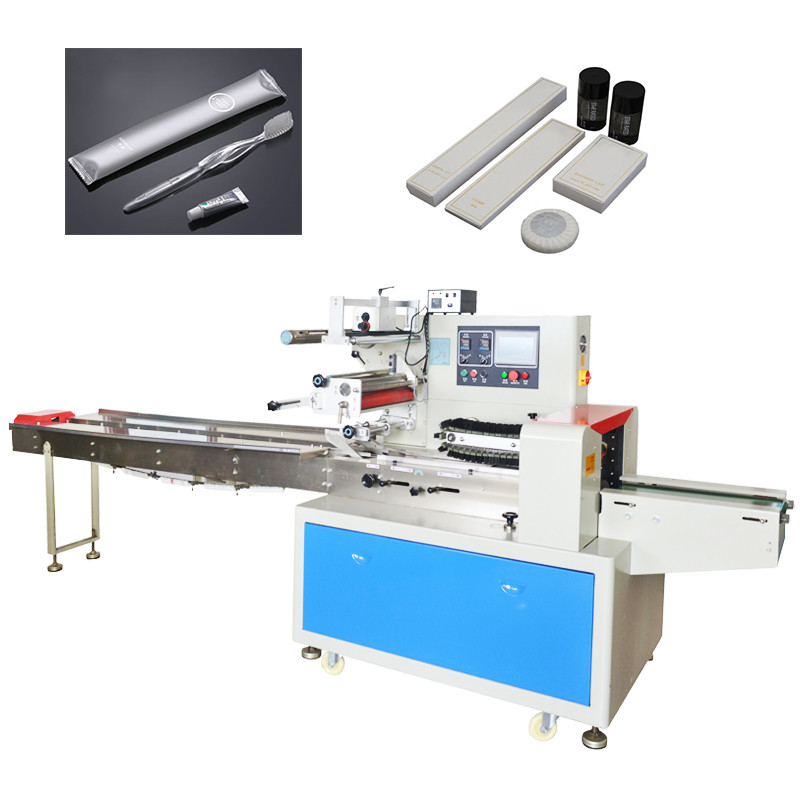

Continuous Sealing Automatic toothbrush Pillow Type Packer flow Disposable hotel supplies packing machine
Facture:
1.Double transducer control, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and saving films
2.human-machine operation, convenient and quick parameter setting.
3. Self diagnosis failure function, clear failure display.
4.High sensitivity optical electric color mark tracking &digital input cut position which makes the sealing&cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
Quick Details:
1. Widely use in daily necessities, cosmetics, food, medical etc many industries.
2. Adjust width of bag forming according to the product height width.
3. With waste collection, make the enviroment neat and clean.
4. Automatic counting is available to facilitate manual entry into the box.
5. The packaging material is consumable.
6. Packaging machine can be adapted to specific requirements.
Suitable for packaging biscuits, chocolate, bread, vermicelli, instant noodles, moon cakes, medicine, daily necessities, industrial supplies, paper boxes, paper towels, trays, towels, egg rolls, preserved fruits, hawthorn slices, sausages and other sticky or bulk products, etc.
Specifications:
| Model | SN-250D/350D/450D |
| Packing film | composite |
| Packing Speed | 30-120bags/min |
| Packing Size |
L*W 65-330mm*30-110mm |
| Power Supply | 220 50/60Hz |
| Power | 2.5KW |
| Machine size | 4300x2100x1800mm |
| Feeder | 4400*2200*1900mm |
| Machine Weght | Approx 550kg |
| Degree of automation | Automatic |
| Processing customization | Customized processing is available |
| Material Type | Solid |
| Applicable objects | Gifts, crafts, food, clothing, home textiles, chemicals, toys, restaurants, daily chemicals, pharmaceuticals, hardware, machinery |
Machine Details:
|
1. Packaging machine appearance It can realize the one-step process of material release, packaging and sealing and cutting |
 |
|
2.Linkage film winding Adopt multi-linked film rolls to coordinate film link, adapt to more rolled film materials. The rolled film is smoother and more effective in preventing the upper rolled film from running off. |
|
|
3. Conveyor device
Stainless steel operating platform cassette positioning conveyor belt device |
|
|
4.Fully automatic sealing and cutting The sealing and cutting shrinkage is completed in a single pass, realizing unmanned automatic operation. |
|
|
5. Self-locking gimbal Move at any time as required, press to self-lock and lock at any time |
|

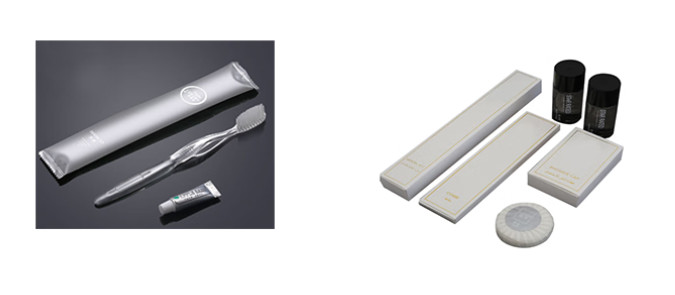

| 6. Packing neat and good looking |
|
