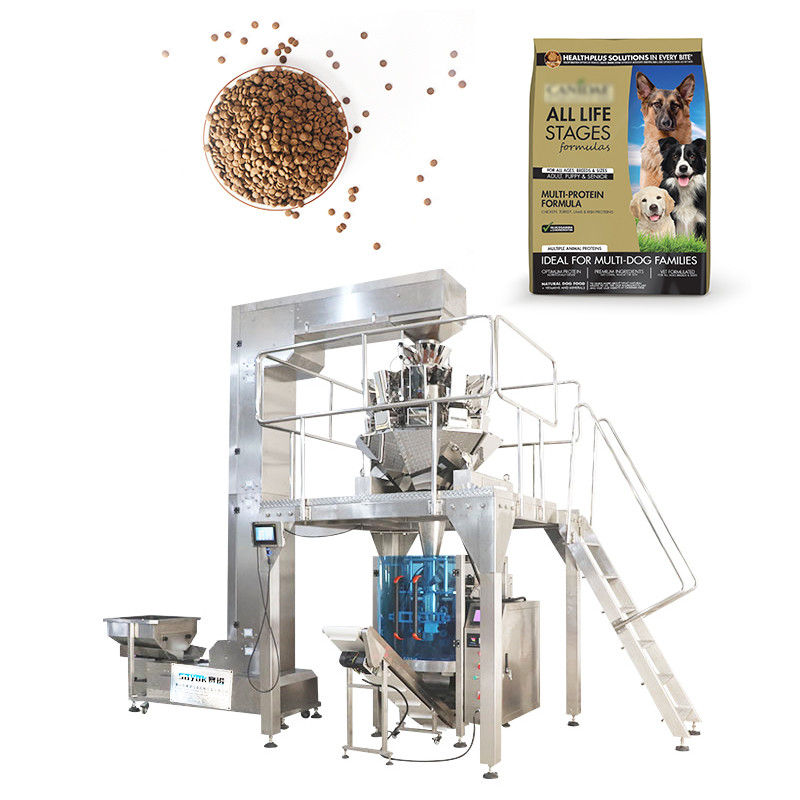

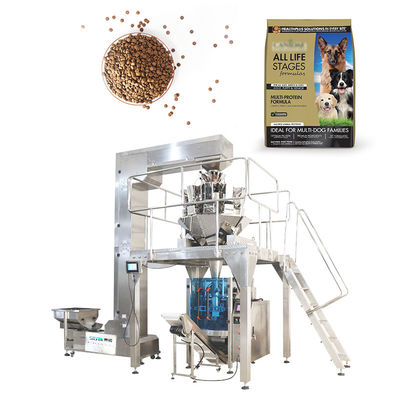

Automatic Pet Rations bag making, weighing, filling and sealing packaging machinery
Combined parts
1.SN series main frame 2.10/14 heads weigher
3.Z type bucket elevator 4.Vibration feeder
Facture:
1. PLC control with stable,reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple .
4.Double servo control, high precision orientation, size more nicety.
5. High-sensitivity photoelectric eye tracking and digital input of sealing and cutting positions for more accurate sealing and cutting positions.
6. Close down type mechanism , defending powder into inside of machine.
Essential details
Type: Multi-Function Packaging Machine, Packing Machine
Production Capacity : 20bag/min, 40bag/min, 25bag/min, 50bag/min, 30bag/min
Applicable Industries:Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining, Food & Beverage Shops
Application
It’s suitable to use in packing the high accuracy and easy fragile material ,such as:puffy food.crispy rice,jelly,candy,pistachio, apple SNices,dumpling,chocolate , pet food,small hardware,Medicine,etc.
Specifications:
| Model |
SN -420/520/720 |
| Packing Speed |
5-60 pack/min |
| Max width of roll film |
420mm/520mm/720mm/820mm |
| Bag length |
80-320mm/80-420mm/100-500mm/100-550mm
|
|
Bag width
|
50-200mm/50-250mm/100-350mm/180-400mm
|
| Packing Size |
L*W*H 60-280 * 60-200 * 30-100 mm |
| Power Supply |
220/380V 50/60Hz |
| Power |
5.5KW |
| Machine size |
1388*1116*1536 mm |
| Machine Weght |
Approx 500kg |
Auxiliary equipment
| Feature |
SN series main frame
|
| Power Supply |
220/380V 50/60 Hz |
| Power |
Approx5.5 KW |
| Transmission method |
Z-Lift Loader |
| Metering equipment |
0/14 head computerized combination scales |
| Packing Film |
OPP, CPP, PE, PET |
Machine Details:
| 1. Horizonal design, fully automatic packing shrinking line |
 |
|
2.Dosing device
Multiple combination scales mainframe
|
|
|
3. Auxiliary equipment
Customized operating platform
|
|
|
4.Auxiliary equipment
Z-type bucket elevator has theadvantages of flexible composition,small damage to the material itselfand reduction of scrap rate.The shell of the whole machineis sealed to reduce dust flying
|
|
| 5. Auxiliary equipment Finished product conveyor belt |
|
|
6. Self-locking gimbal
Move at any time as required, press to self-lock and lock at any time
|
|
|
6.Multi-purpose machine for a variety
of products
|
|
