50Hz / 60Hz Automatic Packing Machinery 5.5KW Chocolate Bag Packaging Machinery

1 set
MOQ
EXW US$39999-49999/set
Price
50Hz / 60Hz Automatic Packing Machinery 5.5KW Chocolate Bag Packaging Machinery
Features Gallery Product Description Request A Quote
Features
Specifications
Appearance: New
Applicable Industries: Food
Packing Film: PE, PET
Machine Material:: Stainless Steel Or Mild Steel
Automatic Grade: Automatic
Driven Type: Mechanical
After-sales Service: Video Technical Support
After Warranty Service: Video Technical Support
High Light:

50Hz Automatic Packing Machinery

,

60Hz Automatic Packing Machinery

,

5.5KW Bag Packaging Machinery

Basic Infomation
Place of Origin: China
Brand Name: Sayok
Certification: CE
Model Number: SN -420/520/720/820
Payment & Shipping Terms
Packaging Details: Exported wooden case
Delivery Time: 35-45 working days
Payment Terms: T/T
Supply Ability: 50 set /month
Product Description

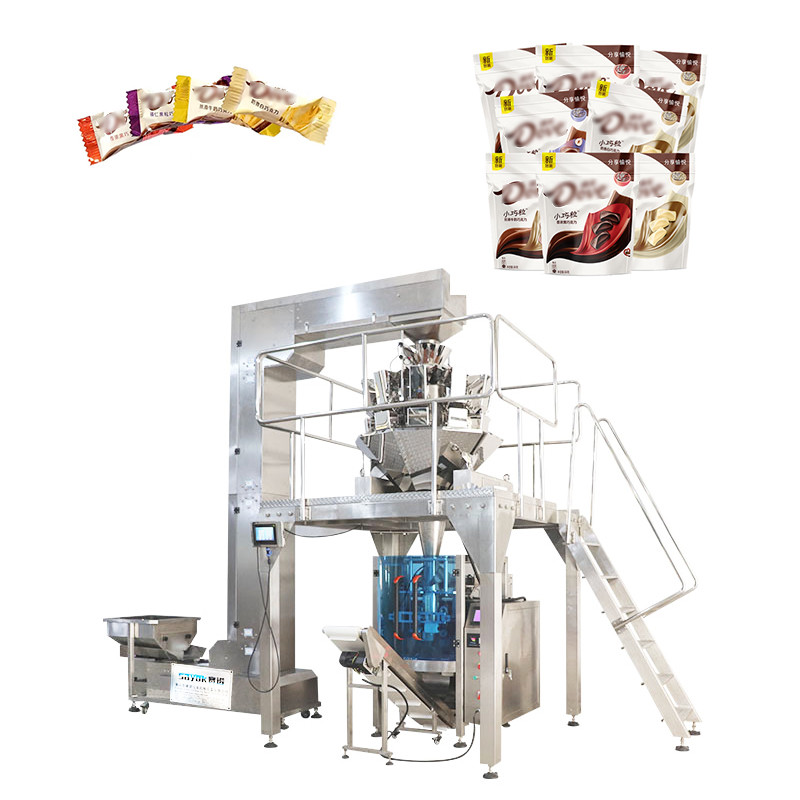

Automatic Chocolate bag making, weighing, filling and sealing packaging machinery



Combined parts

1.SN series main frame 2.10/14 heads weigher

3.Z type bucket elevator 4.Vibration feeder



Facture:



1. PLC control with stable,reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished in one operation.

2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.

3. Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple .

4. External film releasing mechanism: simpler and easier installation of packing film.

5. High-sensitivity photoelectric eye tracking and digital input of sealing and cutting positions for more accurate sealing and cutting positions.
6. Close down type mechanism , defending powder into inside of machine.



Quick Details:



1. Widely use in  daily necessities, cosmetics, food, medical agriculture pastoralism etc many industries.

2. Adjust width of bag forming according to the product height width.

3. With waste collection, make the enviroment neat and clean.

4. Automatic counting is available to facilitate manual entry into the box.

5. The packaging material is consumable.

6. Packaging machine can be adapted to specific requirements.



Application

It’s suitable to use in packing the high accuracy and easy fragile material ,such as:puffy food.crispy rice,jelly,candy,pistachio, apple SNices,dumpling,chocolate , pet food,small hardware,Medicine,etc.



Specifications:



Model SN -420/520/720/820
Packing Speed 5-60 pack/min
Max width of roll film 420mm/520mm/720mm/820mm



Bag length

80-320mm/80-420mm/100-500mm/100-550mm

Bag width

50-200mm/50-250mm/100-350mm/180-400mm

Packing Size L*W*H 60-280 * 60-200 * 30-100 mm
Power Supply 220/380V 50/60Hz
Power 5.5KW
Machine size 1388*1116*1536 mm
Machine Weght Approx 500kg



Auxiliary equipment



Feature

SN series main frame

Power Supply 220/380V 50/60Hz
Power Approx5.5 KW
Transmission method Z-Lift Loader
Metering equipment 0/14 head computerized combination scales
Packing Film OPP/CPP,CPP/PE,MST/PE,PET/PE



Machine Details:



1. Horizonal design, fully automatic packing shrinking line 50Hz / 60Hz Automatic Packing Machinery 5.5KW Chocolate Bag Packaging Machinery 0

2.Dosing device

Multiple combination scales mainframe

50Hz / 60Hz Automatic Packing Machinery 5.5KW Chocolate Bag Packaging Machinery 1

3. Auxiliary equipment

Customized operating platform

      50Hz / 60Hz Automatic Packing Machinery 5.5KW Chocolate Bag Packaging Machinery 2

4.Auxiliary equipment

Z-Lift Loader

50Hz / 60Hz Automatic Packing Machinery 5.5KW Chocolate Bag Packaging Machinery 3
5. Auxiliary equipment Finished product conveyor belt 50Hz / 60Hz Automatic Packing Machinery 5.5KW Chocolate Bag Packaging Machinery 4

6. Self-locking gimbal

Move at any time as required, press to self-lock and lock at any time

50Hz / 60Hz Automatic Packing Machinery 5.5KW Chocolate Bag Packaging Machinery 5
6.Multi-purpose machine for a variety of products

50Hz / 60Hz Automatic Packing Machinery 5.5KW Chocolate Bag Packaging Machinery 6

50Hz / 60Hz Automatic Packing Machinery 5.5KW Chocolate Bag Packaging Machinery 7
