Electric Cartoner Packing Machine Creams Automatic Horizontal Cartoning Machine

1 set
MOQ
EXW US$9400 -16000/set
Price
Electric Cartoner Packing Machine Creams Automatic Horizontal Cartoning Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Attitude: Intact
Applicable Industries: Chemical, Daily Chemical
Packing Film: Cardboard
Tunnel: Adopt Advanced Foreign Technology
Automatic Grade: Automatic
Driven Type: Mechanical
After-sales Service: Video Technical Support
After Warranty Service: Video Technical Support
Highlight:

Electric Cartoner Packing Machine

,

Cartoner Packing Machine

,

Automatic Horizontal Cartoning Machine

Basic Infomation
Place of Origin: China
Brand Name: Sayok
Certification: CE
Model Number: SN-120
Payment & Shipping Terms
Packaging Details: Exported wooden case
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 50 set /month
Product Description

Horizontal Cartoner Machine Electric Automatic Cartoning Creams Packing Machine



Facture:



1. Auto box feeding, opening, entering, sealing, waste removing together packing form compact and reasonable structure,

simple operation and adjustment.

2. Servo/stepper motor and touch screen, PLC control system, Man-machine interface display operation would be more

clearer and simpler. High degree of automation, more humanized.

3. Photoelectric detector automatic detection and tracking system,no feed no packing,the packing material is saved to

the maximum extent.

4. Wide range of packing, easy to adjust, fast conversion can be realized between various specifications and sizes.

5. There is no need to change molds for changing specifications, just adjust it.

6. Feeding improperly would auto stop, main drive motor overload protection device. It is more safe and reliable.

7. According to customer requirements, upturn safety cover is adopted, easy to operate and beautiful appearance.

8. Can linkage production with aluminum-plastic packing machine, pillow type packing machine, 3D packing machine,

bottled line, filling packing machine, labeling machine, ink-jet printing machine, on-line weighing machine and other production lines or equipment.

9. Can be designed according to the packaging requirements of all kinds of automatic feeding and entering box systems.



Quick Details:



1. Widely use in  daily necessities, cosmetics, food, medical etc many industries.

2. Adjust width of bag forming according to the product height width.

3. With waste collection, make the enviroment neat and clean.

4. Automatic counting is available to facilitate manual entry into the box.

5. The packaging material is consumable.

6. Packaging machine can be adapted to specific requirements.







Specifications:



Model

SN-120

Packing film composite
Packing Speed

40-70box/min

Rated air pressure

0.5-0.8mpa

Power Supply 220 50/60Hz
Power 1.5KW
Machine size 3400*1450*1800mm



Feeder 3500*1450*1800mm
Machine Weght Approx 1200kg

Paper box paper requirements

Gray paperboard: 300-350g/m3

White cardboard : 250-350g/m3

Corrugated paper

Take the sample to confirm



Degree of automation Automatic
Processing customization Customized processing is available
Applicable objects chemical, daily chemical





Machine Details:

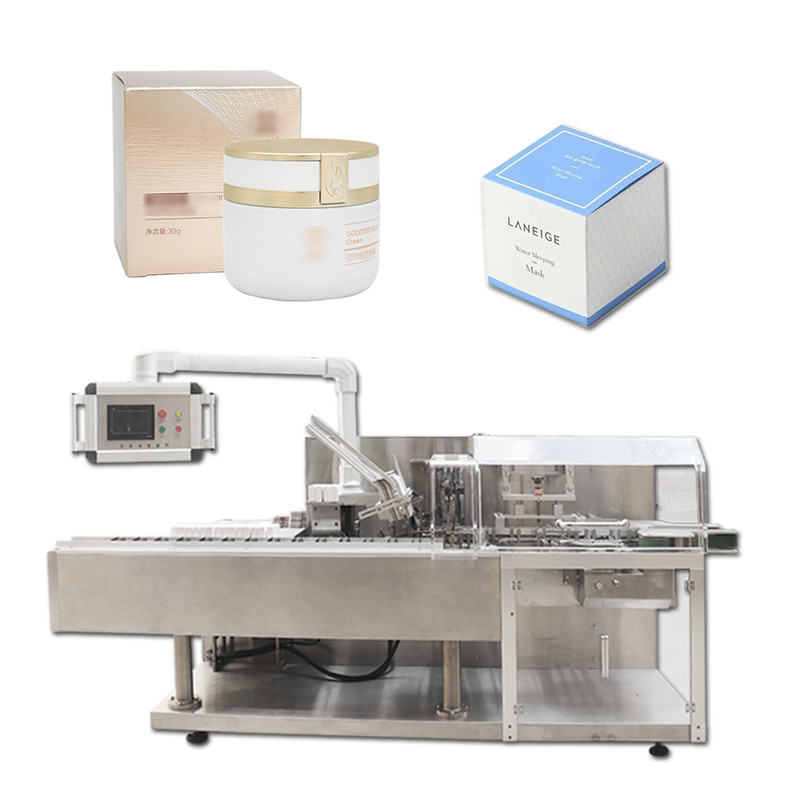

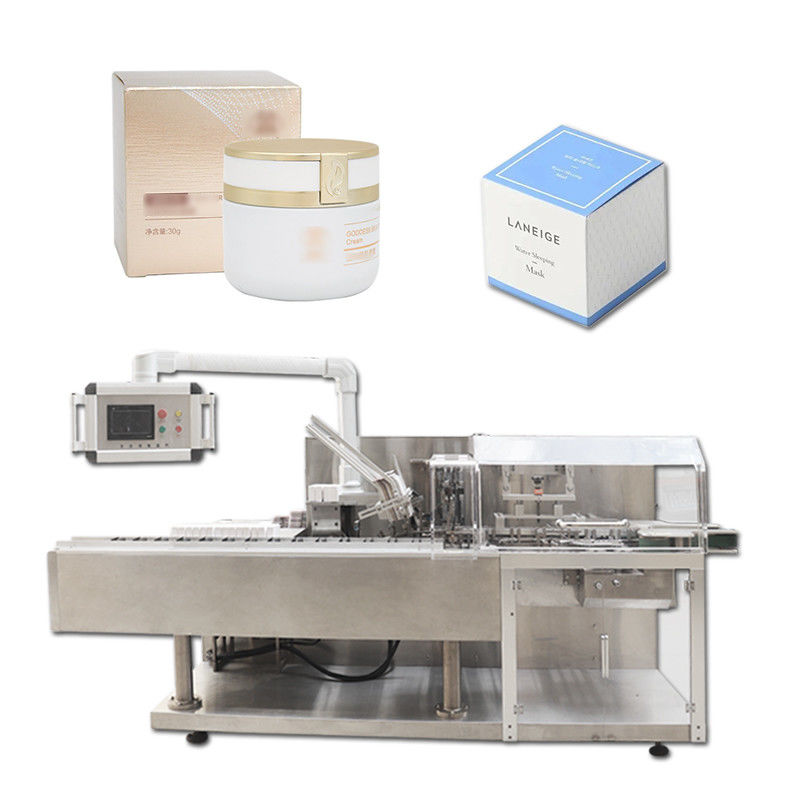

1. Packaging machine appearance

It can realize the one-step process of material release, packaging and sealing and cutting

Electric Cartoner Packing Machine Creams Automatic Horizontal Cartoning Machine 0

2.PROVIDE DEMAND

product, size, packing method, speed, quantity, etc. Please send the information to our customer service staff.

Electric Cartoner Packing Machine Creams Automatic Horizontal Cartoning Machine 1

3. Explanation of running steps

Electric Cartoner Packing Machine Creams Automatic Horizontal Cartoning Machine 2

4.Multi-functional customized mechanical devices enjoy quality service

Electric Cartoner Packing Machine Creams Automatic Horizontal Cartoning Machine 3

Electric Cartoner Packing Machine Creams Automatic Horizontal Cartoning Machine 4

5. Self-locking gimbal

Move at any time as required, press to self-lock and lock at any time

Electric Cartoner Packing Machine Creams Automatic Horizontal Cartoning Machine 5
6. Packing neat and aesthetics

Electric Cartoner Packing Machine Creams Automatic Horizontal Cartoning Machine 6
