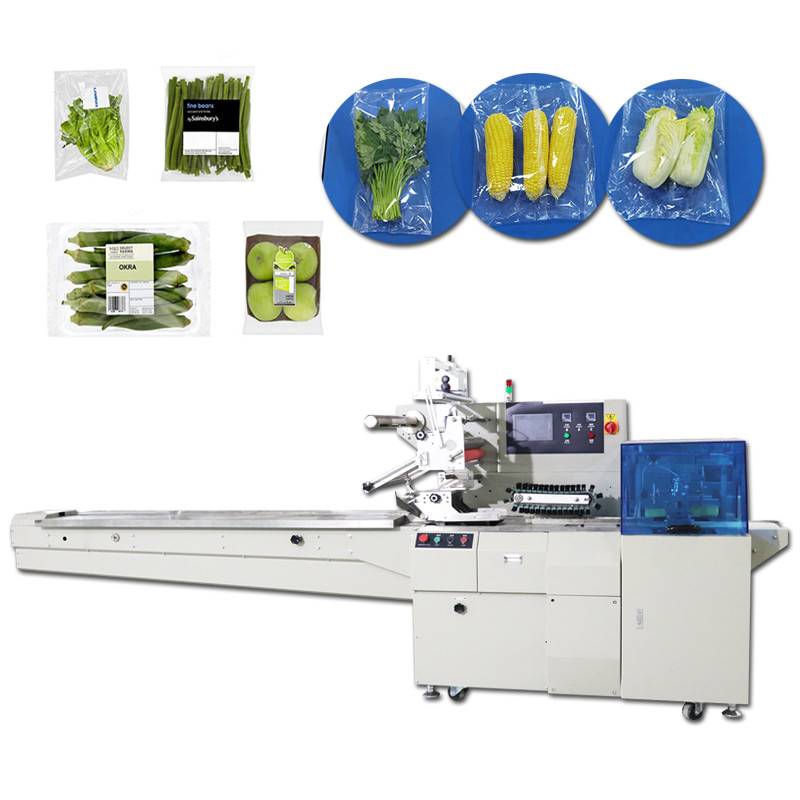

Automatic Induction Bag Length Reciprocating Horizontal Vegetable and Fruit Packaging Machine
Facture:
1. Dual frequency conversion control ,bag length can be set and cut in one step,saving time and films.
2. Colorful touch screen,easy and quick setting and operation.
3. Self diagnosis failure function,clear failure display.
4. High sensitivity photoelectric eye color trace the bag,numerical input of cutting sealing position to be more accurate.
5. The temperature of each seal is independent. PID control is suitable to various packaging materials.
6.Reciprocating type sealing device,firmer sealing,no wasting in mould sealing cutter.
7.Terminal sealing device,more beautiful bag shape,improving products level.
8. Positioning stop function without sticking knife, cutting and wasting envelope.
9. Simple driving system,reliable working,convenient maintenance.
Quick Details:
1. Widely use in daily necessities, cosmetics, food, medical etc many industries.
2. Adjust width of bag forming according to the product height width.
3. With waste collection, make the enviroment neat and clean.
4. Automatic counting is available to facilitate manual entry into the box.
5. The packaging material is consumable.
6. Packaging machine can be adapted to specific requirements.
Specifications:
| Model |
SN-350xw |
| Packing film | composite |
| Packing Speed |
30-100 bags/min |
| Packing Size |
L*W 65-190mm*50-150mm |
| Power Supply | 220 50/60Hz |
| Power | 3KW |
| Machine size | 4020*720*1320mm |
| Feeder | 4100*820*1400mm |
| Machine Weght | Approx 550kg |
| Degree of automation | Automatic |
| Processing customization | Customized processing is available |
| Material Type | Solid |
| Applicable objects | Gifts, crafts, food, clothing, toys, restaurants, daily chemicals, pharmaceuticals, hardware, machinery |
Machine Details:
|
1. Packaging machine appearance It can realize the one-step process of material release, packaging and sealing and cutting |
 |
|
2.Linkage film winding Adopt multi-linked film rolls to coordinate film link, adapt to more rolled film materials. The rolled film is smoother and more effective in preventing the upper rolled film from running off. |
|
|
3. Conveyor device
Stainless steel operating platform cassette positioning conveyor belt device |
|
|
4.Customized bag maker Customized packaging size according to the actual product |
|
|
5. Self-locking gimbal Move at any time as required, press to self-lock and lock at any time |
|
| 6. Packing neat and intact |
|
