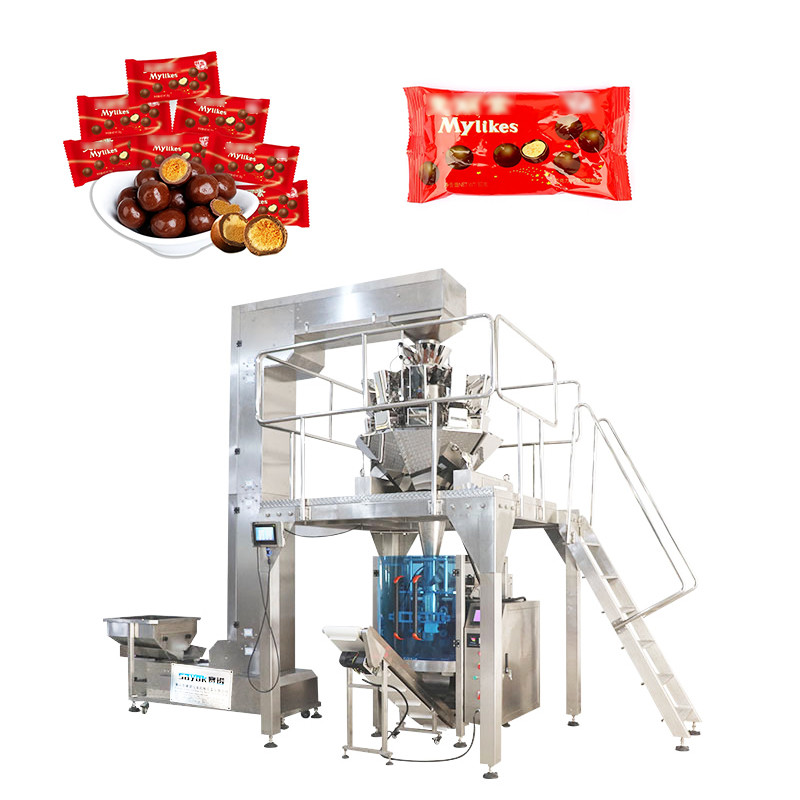

Automatic Mellitus vertical bag making, weighing, filling and sealing packaging machinery
Combined parts
1.SN series main frame 2.10/14 heads weigher
3.Z type bucket elevator 4.Vibration feeder
Facture:
1. PLC control with stable,reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple .
4. External film releasing mechanism: simpler and easier installation of packing film.
5. High-sensitivity photoelectric eye tracking and digital input of sealing and cutting positions for more accurate sealing and cutting positions.
6. Close down type mechanism , defending powder into inside of machine.
Condition: New
Function: FILLING, Wrapping, Sealing, packing
Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
Packaging Type: Bags, Film, Pouch
Packaging Material: Plastic, Paper, Metal
Automatic Grade : Automatic
Packaging & delivery
Packaging Details1)Dedust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6)Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested
Application
It’s suitable to use in packing the high accuracy and easy fragile material ,such as:puffy food.crispy rice,jelly,candy,pistachio, apple SNices,dumpling,chocolate , pet food,small hardware,Medicine,etc.
Specifications:
| Model | SN -420/520/720/820 |
| Packing Speed | 5-60 pack/min |
| Max width of roll film | 420mm/520mm/720mm/820mm |
| Bag length |
80-320mm/80-420mm/100-500mm/100-550mm |
|
Bag width |
50-200mm/50-250mm/100-350mm/180-400mm |
| Packing Size | L*W*H 60-280 * 60-200 * 30-100 mm |
| Power Supply | 220/380V 50/60Hz |
| Power | 5.5KW |
| Machine size | 1388*1116*1536 mm |
| Machine Weght | Approx 500kg |
Auxiliary equipment
| Feature |
SN series main frame |
| Power Supply | 220/380V 50/60 Hz |
| Power | Approx5.5 KW |
| Transmission method | Z-Lift Loader |
| Metering equipment | 0/14 head computerized combination scales |
| Packing Film | OPP, CPP, PE, PET |
Machine Details:
| 1. Horizonal design, fully automatic packing shrinking line |  |
|
2.Dosing device Multiple combination scales mainframe |
|
|
3. Auxiliary equipment Customized operating platform |
|
|
4.Auxiliary equipment Z-Lift Loader |
|
| 5. Auxiliary equipment Finished product conveyor belt | |
|
6. Self-locking gimbal Move at any time as required, press to self-lock and lock at any time |
|
| 6.Multi-purpose machine for a variety of products |
|
