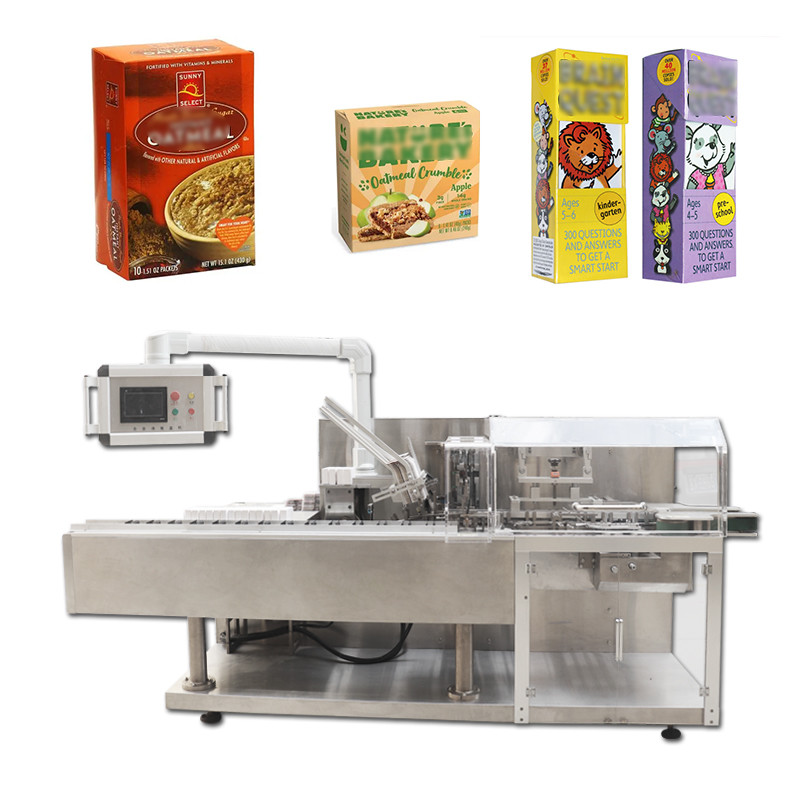

Horizontal Cartoner Machine Electric Automatic Cartoning Box Packaging Machine
The machine may be used independently, or work with the paper re-folding machine and flow packaging machine to unite into a production line., moreover equipped with transmit and fall system and automatic coding device, It is suitable to package of medicines, cosmetics, leisure food, toothpaste and the corresponding chemical products packed in the hose, plate and bottle etc. greatly improved the production efficiency.
Facture:
1. Auto box feeding, opening, entering, sealing, waste removing together packing form compact and reasonable structure,
simple operation and adjustment.
2. Servo/stepper motor and touch screen, PLC control system, Man-machine interface display operation would be more
clearer and simpler. High degree of automation, more humanized.
3. Photoelectric detector automatic detection and tracking system,no feed no packing,the packing material is saved to
the maximum extent.
4. Wide range of packing, easy to adjust, fast conversion can be realized between various specifications and sizes.
5. There is no need to change molds for changing specifications, just adjust it.
6. Feeding improperly would auto stop, main drive motor overload protection device. It is more safe and reliable.
7. According to customer requirements, upturn safety cover is adopted, easy to operate and beautiful appearance.
8. Can linkage production with aluminum-plastic packing machine, pillow type packing machine, 3D packing machine,
bottled line, filling packing machine, labeling machine, ink-jet printing machine, on-line weighing machine and other production lines or equipment.
9. Can be designed according to the packaging requirements of all kinds of automatic feeding and entering box systems.
Specifications:
| Model | SN-120 |
| Packing speed | 40-70box/min |
| The carton size | L70-180 W35-80 mm(to be customized) |
|
Paper box paper requirements
|
Gray paperboard: 300-350g/m3 White cardboard : 250-350g/m3 Corrugated paper: finalized after reviewing the actual sample
|
| The motor power | 1.5KW |
| Power source type | 220V 50/60Hz |
| The machine noise | ≤80 dB |
| Air source | 0.5-0.8 Mpa |
| Air consumption |
20m3/h
|
| Overall dimensions |
3400*1450*1800 mm
|
| Machine weight | 1200Kg |
Machine Details:
|
1. Packaging machine appearance It can realize the one-step process of material release, packaging and sealing and cutting |
 |
|
2.PROVIDE DEMAND product, size, packing method, speed, quantity, etc. Please send the information to our customer service staff. |
|
|
3. Explanation of running steps |
|
|
4.Multi-functional customized mechanical devices enjoy quality service |
|
|
5. Self-locking gimbal Move at any time as required, press to self-lock and lock at any time |
|
| 6. Packing neat and aesthetics |
|
