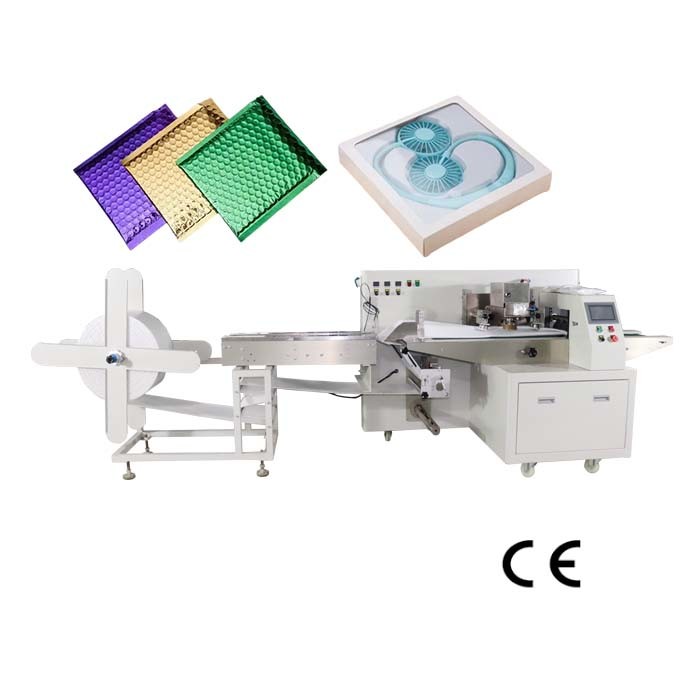

Cloud Warehouse Hanging Fans Express Anti-Breakage Bubble Film Packaging Machine
Feature:
1. Big storage system, can save over 40 different product data setting.
2. High-sensitivity sensor to track and digital input of the sealing and cutting position for more accurate sealing and cutting positions..
3. Self diagnosis failure function , clear failure display.
4. Separate PID control to temperature, suitable for various packing materials.
5. All the controls is are achieved by software , convenient for function adjusting and upgrading.
6. Optional labeling machine for automatic labels posting.
Quickly Details
1. Large film roll holder, saving time in film changing;
2. 7" large touch screen, easy to operating;
3. Simple driving system, reliable working, convenient maintenance.
4. 1m feeding conveyor, machine is more stable;
5. Optional sealing direction to be horizontal or vertical;
6. Optional real time label printing and posting.
Technical Parameter
| Model | SN-350XQ |
| Film width | Max.350mm |
| Bag length | (Depend on product) |
| Bag width | 50~150mm |
| Product height | 0-65mm |
| Film roll diameter | Max. 1200mm |
| Packaging rate | 5-30m/min |
| Power | 220V 50/60HZ |
| Machine size |
(W)670×(H)1450mm Machine length will be depend on product |
| Machine weight | 1100Kg |
Machine Details
| 1. Adjustable large film roll holder, saving film roll changing time. |  |
| 2. Proximity sensors to detect product & related length, improving precision of bag length setting and cutting. | |
| 3. Reasonable middle sealing design, adjust angle of sealing wheels for perfect central back sealing. | |
| 4. Optional to link with labeling machine for automatic AWB label posting. | |
| 5. Can link with checkweigher, printer and labeling machine for a automatic real time packing line. | |
| 6. Widely use in food, electric, toys, daily use, books, hardwares etc products' protective wrapping | |
