Automatic Servo Inspection Gloves Medical Gauze PE Film Composite Packing Machine
Facture:
1. The machine adopts one axis all-digital and the same server to control the sheet arrangement, sealing and cutting, and coating respectively.
2. The mechanical structure is simplified, the positioning accuracy is ensured, and the speed and yield are improved.
3. Low maintenance cost, high reliability, using this machine can save labor (10-15 people),
4. Reduce material cost (bag making and gluing cost), improve production efficiency, reduce cost by 5 cents per bag,
5. The cost of purchasing equipment can be recovered in the month of normal production, and the problem of labor difficulties can be solved.
6. The machine adopts three servo CNC linkage, which is easy to adjust. The packaging size can be realized by directly modifying the parameters of the touch screen, and the adjustment range;
7. The main engine of the purse paper packaging machine is the turret that pushes the paper embryos from the fader through the conveyor belt into the machine, and then goes through the procedures of compression, packaging, folding, heat sealing, etc., until the purse paper is finished. Integrated packaging equipment.
Quick Details:
1. Equipped with touch screen control panel,visual working parameter makes it is more convenient to debug machine.
2. According to the sealing method of middle side,this machine can be customized for top side sealing and bottom side sealing.This can improves packaging effect.Extra date coder can be equipped with to code production date or batch number.
3. Sealing structure is made of high quality material,the sealing temperature and time can be adjusted according to different kinds of packaging film
4. Automatic counting is available to facilitate manual entry into the box.
5. The packaging material is consumable.
6. Packaging machine can be adapted to specific requirements.
Specifications:
| Model |
SN-350xw |
| Packing film | composite |
| Packing Speed |
30-100 bags/min |
| Packing Size |
L*W 65-190mm*50-150mm |
| Power Supply | 220 50/60Hz |
| Power | 3KW |
| Machine size | 4020*720*1320mm |
| Feeder | 4100*820*1400mm |
| Machine Weght | Approx 550kg |
| Degree of automation | Automatic |
| Processing customization | Customized processing is available |
| Material Type | Solid |
| Applicable objects | Gifts, crafts, food, clothing, toys, restaurants, daily chemicals, pharmaceuticals, hardware, machinery |
Machine Details:
|

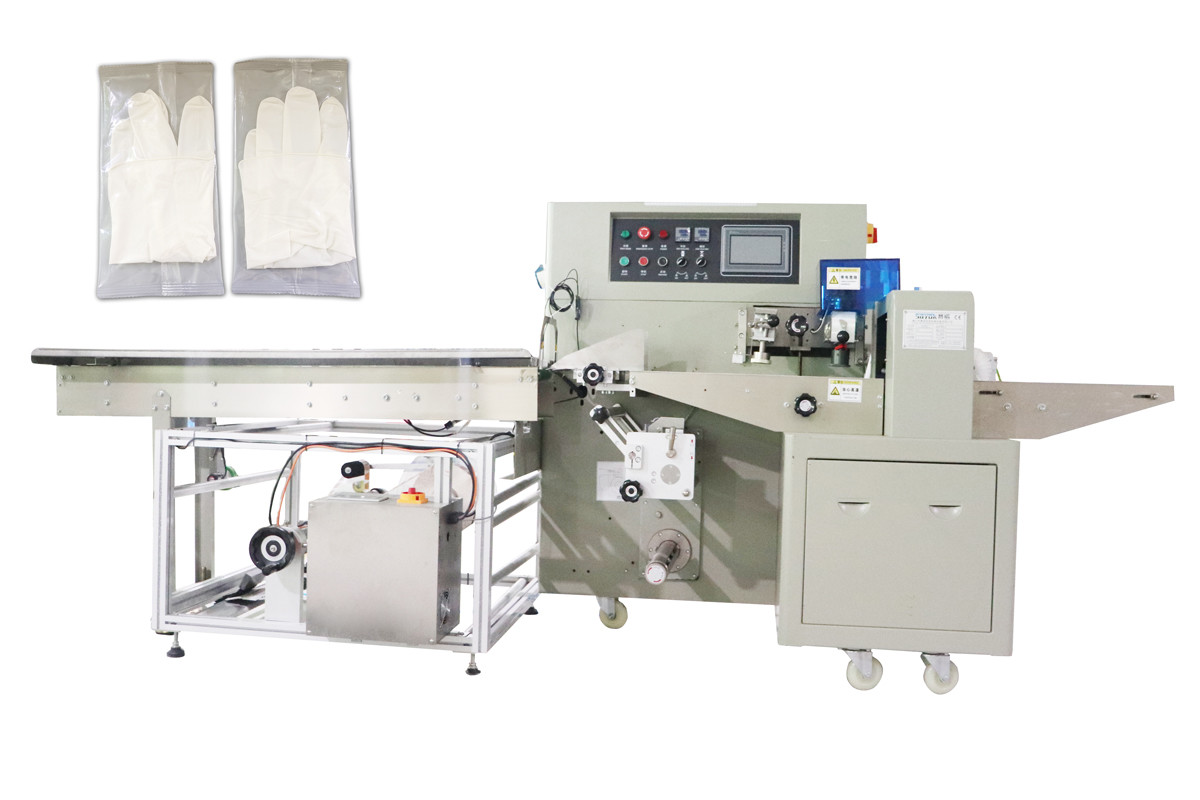

1. Packaging machine appearance It can realize the one-step process of material release, packaging and sealing and cutting |
 |
|
2.Linkage film winding Adopt multi-linked film rolls to coordinate film link, adapt to more rolled film materials. The rolled film is smoother and more effective in preventing the upper rolled film from running off. |
|
|
3. Conveyor device
Stainless steel operating platform cassette positioning conveyor belt device |
|
|
4.Fully automatic sealing and cutting The sealing and cutting shrinkage is completed in a single pass, realizing unmanned automatic operation. |
|
|
5. Self-locking gimbal Move at any time as required, press to self-lock and lock at any time |
|
| 6. Packing neat and intact |
|
