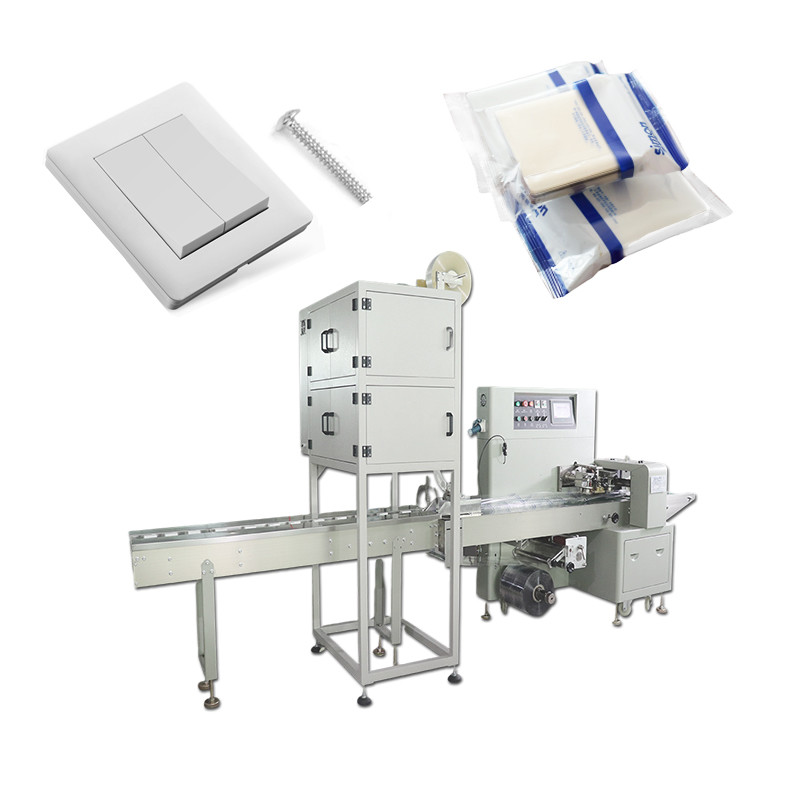

Panel Screw Automatic Combination Feeding And Packing Machine
Facture:
1. The equipment adopts touch screen man-machine interface and PLC control.
2. Independent temperature control to control the temperature.
3. Fault self-diagnosis function, fault display is clear at a glance.
4. The main parts in contact are made of stainless steel or anti-rust materials.
5. The drive system is simple, reliable, and easy to maintain.
6. All controls are realized by software, which is convenient for function adjustment and upgrade.
Quick Details:
1. Widely use in daily necessities, cosmetics, food, medical etc many industries.
2. Adjust width of bag forming according to the product height width.
3. With waste collection, make the enviroment neat and clean.
4. Automatic counting is available to facilitate manual entry into the box.
5. The packaging material is consumable.
6. Packaging machine can be adapted to specific requirements.
Details:
1. Preparing and checking the toolbox wearing part and the manualbook.
2. Cleaning the dust and the scrap after testing the machine with the air pump.
3. Apply rust-proof liquid.
4. Disassemble some certain part of the machine.
5. All the disassemble part, toolbox, main machine pack by film
6. There will have screw fix the machine at the bottom of the wooden case
conventional process
Packaging process: conveying and unloading (automatically throwing screw packs) → outer film wrapping → heat sealing → bag making → sealing → slitting → finished product output
Specifications:
| Model |
SN-350XM |
| Packing film | PE |
| Packing Speed |
30-80bags/min |
| Packing Size |
Customization |
|
Product’s height |
Max.65mm |
|
Film width |
350MM |
| Power Supply | 220 50/60Hz |
| Power | 2.8KW |
| Machine size | 4020*720*1320mm |
| Feeder | 4100*820*1400mm |
| Machine Weght | Approx 550kg |
| Degree of automation | Automatic |
| Processing customization | Customized processing is available |
| Material Type | Solid |
| Applicable objects | Gifts, crafts, food, clothing, toys, restaurants, daily chemicals, pharmaceuticals, hardware, machinery |
Machine Details:
|
1. Packaging machine appearance It can realize the one-step process of material release, packaging and sealing and cutting |
 |
|
2.All-in-one packaging machine Multifunctional pillow packaging machine with automatic feeding, automatic heat sealing and automatic receiving in one |
|
|
3. Conveyor device
Stainless steel operating platform cassette positioning conveyor belt device |
|
|
4.Fully automatic sealing and cutting The sealing and cutting shrinkage is completed in a single pass, realizing unmanned automatic operation. |
|
|
5. Self-locking gimbal Move at any time as required, press to self-lock and lock at any time |
|

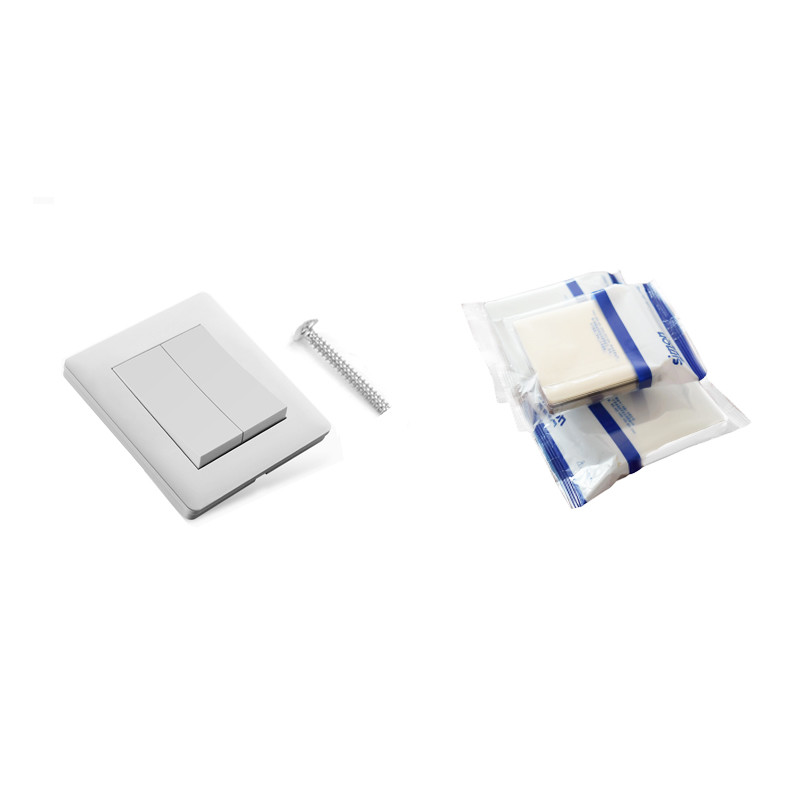

| 6. Packing neat and aesthetics |
|
