Intelligent Shrinking Packing Machine Rag Film Shrink Wrap Machine

Intelligent Shrinking Packing Machine Rag Film Shrink Wrap Machine

Brand Name:	Sayok
Model Number:	SN-590SP
MOQ:	1 set
Price:	EXW US$13850 -15388/set
Payment Terms:	T/T
Supply Ability:	50 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Controller:

Servo Motor

Cutter:

Teflon Cutter

Tunnel:

Adopt Advanced Foreign Technology

Automatic Grade:

Automatic

Driven Type:

Mechanical

After-sales Service:

Video Technical Support

After Warranty Service:

Video Technical Support

Packaging Details:

Exported wooden case

Highlight:

Intelligent Shrinking Packing Machine

Shrinking Packing Machine Rag

Film Shrink Wrap Machine

Product Description

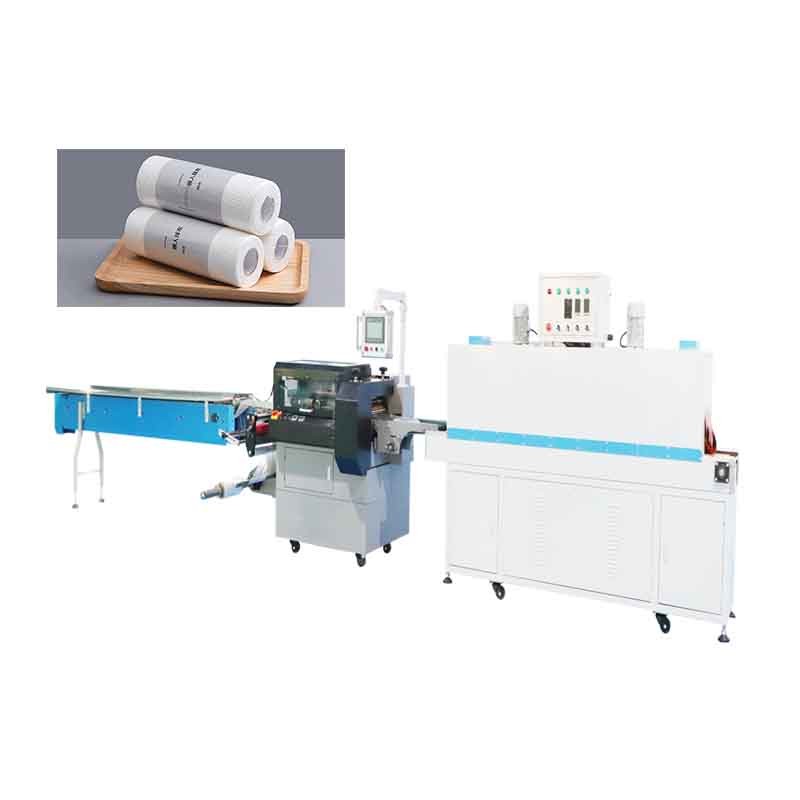

Touch Screen And PLC Controlled Intelligent Disposable Rag Film Shrink Wrapping Machine

Facture:

1. Equipped with teflon cutter, rust-free and firmly sealing.
2. Opto-electronic design, automatic fault alarm and safety control commands.
3. Servo driven, gear turning belt, operate stable.
4. Fault self-diagnostic function with fault indication at a glance
5. High-sensitivity photoelectric eye tracking and digital input of sealing and cutting positions for more accurate sealing and cutting positions
6. Intelligent control, easy to turn off and stop, easy to operate

Quick Details:

1. Thermostatic design inside to save electricity consumption.

2. Motor control for high precision and stability.

3. With waste collection, make the enviroment neat and clean.

4. Automatic counting is available to facilitate manual entry into the box.

5. The packaging material is consumable.

6. Packaging machine can be adapted to specific requirements.

Specifications:

Model	SN -590SP
Packing Speed	5-120 pack/min
Packing Size	LWH 60-280 * 60-200 * 30-100 mm
Power Supply	220/380V 50/60Hz
Power	5.5KW
Machine size	270010001680 mm
Feeder	3050 * 500 * 900 mm
Machine Weght	Approx 800kg

Heat Tunnel

Model	SN-240T
Power Supply	380V 50/60 Hz
Power	Approx. 15 KW
Packing Speed	0-30 m / min
Machine size	2400 * 710 * 1400 mm
Machine Weight	Approx. 400 KG
Packing Film	PVC, POF, PE shrinking film

Machine Details:

1. Horizonal design, fully automatic packing shrinking line
2. Compression device Controlled gaps between products and flat conveyance into the cut-out work
3. Rotating the cutter Cutter position can be adjusted to the size of the product
4.Dual fan design Internal circulation technology, strong wind, constant temperature, good uniformity of heat
5. Roller conveyor belts Fluorine rubber sleeve rollers, high temperature and wear resistant, will not burn the product, will not stick film under high temperature
6. Self-locking gimbal Move at any time as required, press to self-lock and lock at any time
6. Packing neat and good looking
