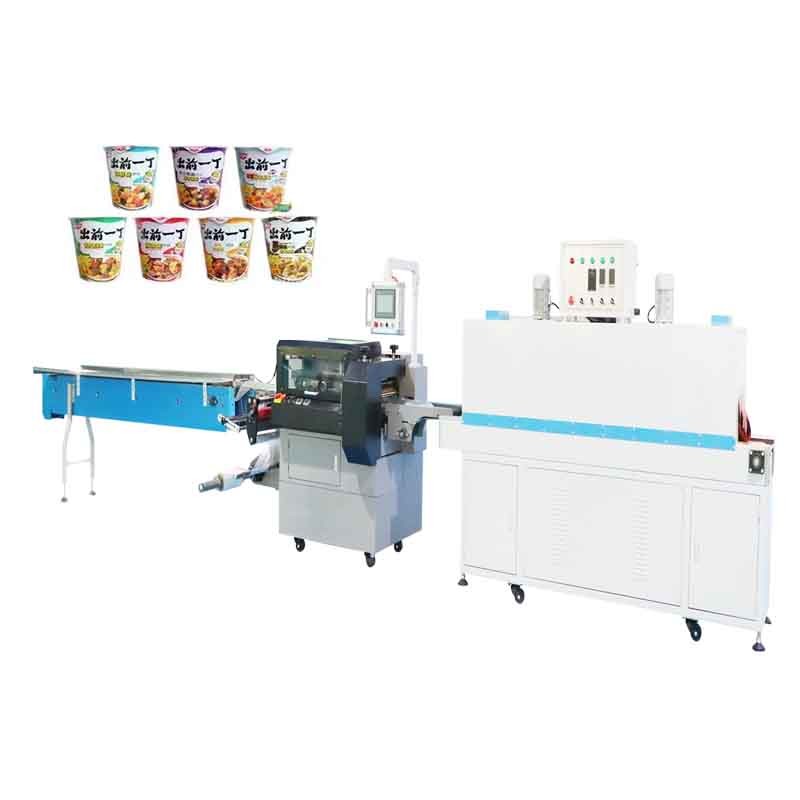

POF Film Horizontal Shrink Wrapping Machine Instant Noodle Cup Packing Machine
Facture:
1. Large touch screen, more simple and intelligent;
2. Roller conveyor belts can turn freely, protecting product from burning by high temperature.
3. Servo driven, gear turning belt, operate stable.
4. Fault self-diagnostic function with fault indication at a glance
5. High-sensitivity photoelectric eye tracking and digital input of sealing and cutting positions for more accurate sealing and cutting positions
6. Intelligent control, easy to turn off and stop, easy to operate
Quick Details:
1. Forming table hardened for longer life.
2. Triple internal insulation.
3. With waste collection, make the enviroment neat and clean.
4. Automatic counting is available to facilitate manual entry into the box.
5. The packaging material is consumable.
6. Packaging machine can be adapted to specific requirements.
Specifications:
| Model | SN -590SP |
| Packing Speed | 5-120 pack/min |
| Packing Size | L*W*H 60-280 * 60-200 * 30-100 mm |
| Power Supply | 220/380V 50/60Hz |
| Power | 5.5KW |
| Machine size | 2700*1000*1680 mm |
| Feeder | 3050 * 500 * 900 mm |
| Machine Weght | Approx 800kg |
Heat Tunnel
| Model | SN-240T |
| Power Supply | 380V 50/60 Hz |
| Power | Approx. 15 KW |
| Packing Speed | 0-30 m / min |
| Machine size | 2400 * 710 * 1400 mm |
| Machine Weight | Approx. 400 KG |
| Packing Film | PVC, POF, PE shrinking film |
Machine Details:
| 1. Horizonal design, fully automatic packing shrinking line |  |
|
2. Compression device Controlled gaps between products and flat conveyance into the cut-out work |
|
|
3. Rotating the cutter Cutter position can be adjusted to the size of the product |
|
|
4.Dual fan design Internal circulation technology, strong wind, constant temperature, good uniformity of heat |
|
| 5. Roller conveyor belts Fluorine rubber sleeve rollers, high temperature and wear resistant, will not burn the product, will not stick film under high temperature | |
|
6. Self-locking gimbal Move at any time as required, press to self-lock and lock at any time |
|
| 6. Packing neat and good looking | |
