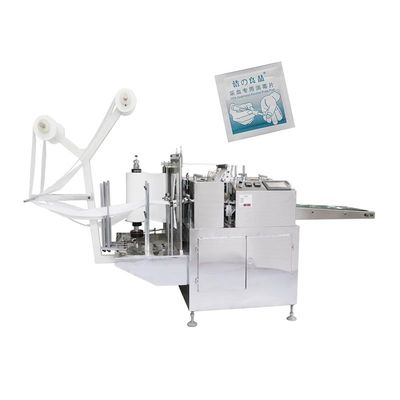

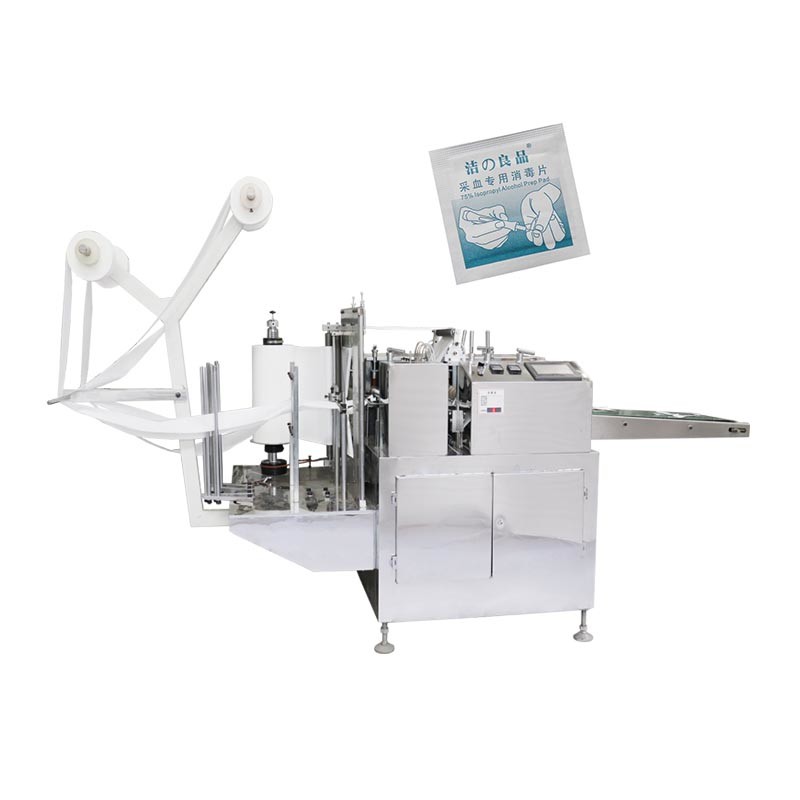

Blood Collection Alcohol Swab Machine Disinfection Tablet Packaging Machine
Facture:
1. 7" large size touch screen, flexible and easy operation
2. Modern servo technology as the core, combined with PLC programmable controller intelligent control of the whole machine operation.
3. Servo motor control is adopted to make slitting more intelligent.
4. Fault self-diagnostic function with fault indication at a glance
5. High-sensitivity photoelectric eye tracking and digital input of sealing and cutting positions for more accurate sealing and cutting positions
6. Punching and labelling positions can be operated on the touch screen for convenience
Quick Details:

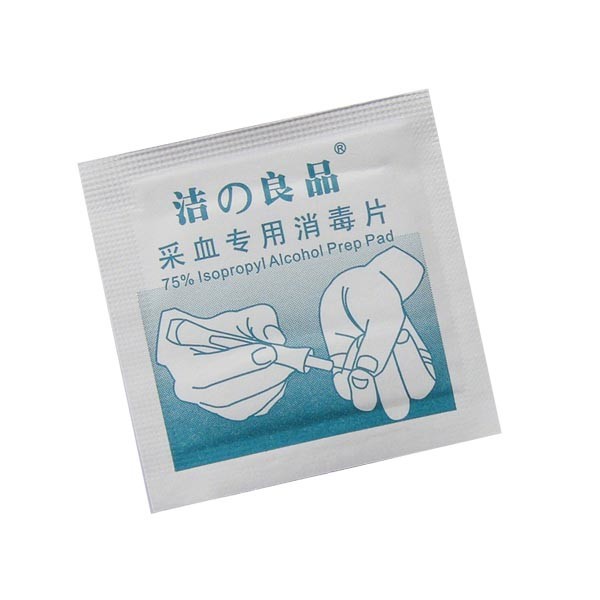

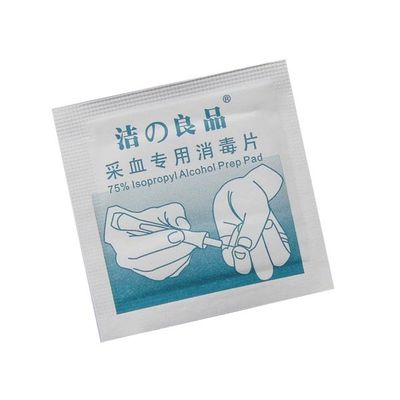

1. Suitable for the alcohol pre pads with 30*30 mm folded size.
2. Liquid filling mode can be customized.
3. The cutter is made of strong steel for a more exquisite cut-off.
4. Automatic counting is available to facilitate manual entry into the box.
5. The packaging material is consumable.
6. Packaging machine can be adapted to specific requirements.
Specifications:
| Alcoholic swabs unfolded size | L*H:60×30mm |
| Alcoholic swabs folded size | L*H:30×30mm |
| Folding method of lcoholic swabs | Vertical folded N/W type |
| Bag size Single | bag:L*W:50×50mm |
| Production date | Equipped with ink wheel coding device (low cost, easy to replace) |
| Processing capacity | 280-350 bags/min |
| Packaging film requirements | 70-130g/㎡ aluminum film packaging paper, Φ≤400mm, width 200-380mm |
| Inner diameter of raw paper core | Φ 76.2mm (=3") |
| Total power | 220V 50Hz 3KW |
| Drive chain | Main drive chain with tensioner as required |
| Machine weight | about 1200 kg |
| Dimensions | L*W*H:3800×1200×1800mm |
Machine Details:
| 1. Stainless steel quality, good in appearance and machine is more durable |  |
| 2. 4 slitting lanes design, fast and stable. | |
| 3. Dosing liquid filling container, adjustable to control the wet. | |
| 4.A precision pump body is used to make the liquid more precise. | |
| 5. Multi-group pressing for tighter packaging | |
| 6. 4 side seal packing type | |
