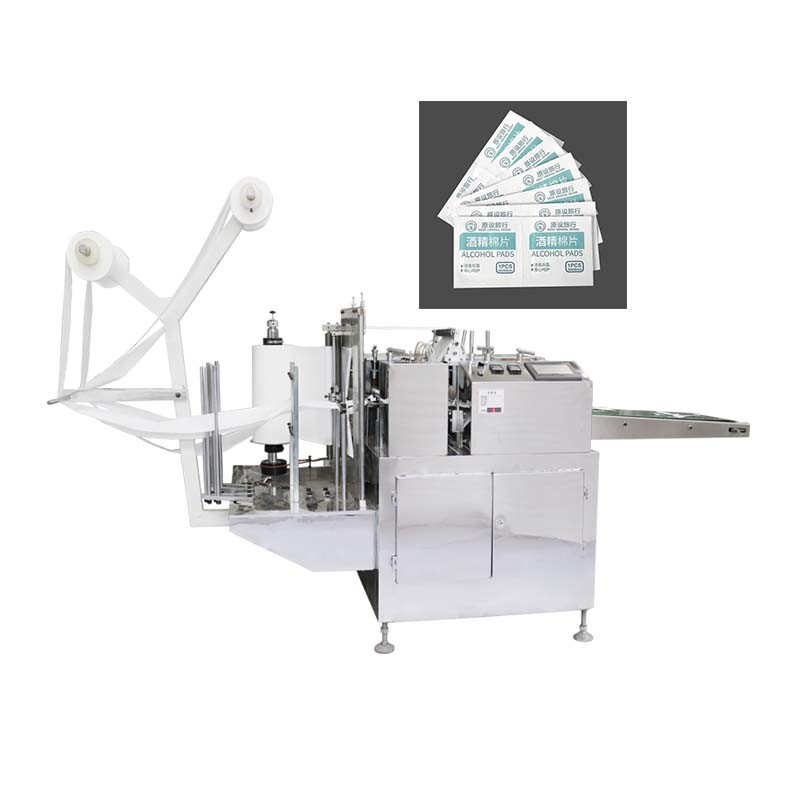

50Hz / 60Hz Alcohol Prep Pad Machine 220V Horizontal Sealing Machine

1 set
MOQ
EXW US$13850 -15388/set
Price
50Hz / 60Hz Alcohol Prep Pad Machine 220V Horizontal Sealing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Capability: 280-350 Bag/min
Voltage: 220V 50/60 Hz
Folding Method: V And Cruciform
Automatic Grade: Automatic
Function: Slitting, Folding, Filling, Sealing
Driven Type: Mechanical
After-sales Service: Video Technical Support
After Warranty Service: Video Technical Support
High Light:

50Hz Alcohol Prep Pad Machine

,

60Hz Alcohol Prep Pad Machine

,

220V Horizontal Sealing Machine

Basic Infomation
Place of Origin: China
Brand Name: Sayok
Certification: CE
Model Number: SN-450WL
Payment & Shipping Terms
Packaging Details: Exported wooden case
Delivery Time: 35-45 working days
Payment Terms: T/T
Supply Ability: 50 set /month
Product Description

Horizontal Good Sealing Alcohol Swab Machine 4 Side Sealing Packing Line





Facture:



1. Reasonable design of raw material holder, cloths stretch most to be more stable in operating.
2. Independent temperature control for a wide range of packaging materials.
3. Servo motor control is adopted to make slitting more intelligent.
4. Fault self-diagnostic function with fault indication at a glance
5. High-sensitivity photoelectric eye tracking and digital input of sealing and cutting positions for more accurate sealing and cutting positions
6. Punching and labelling positions can be operated on the touch screen for convenience



Quick Details:



1. Full automatic alcohol prep pad production and packing line, 2 in 1 machine.

2. Important parts with protective shield, protect workers from injury.

3. The cutter is made of strong steel for a more exquisite cut-off.

4. Automatic counting is available to facilitate manual entry into the box.

5. The packaging material is consumable.

6. Packaging machine can be adapted to specific requirements.





Specifications:



Alcoholic swabs unfolded size L*H:60×30mm
Alcoholic swabs folded size L*H:30×30mm
Folding method of lcoholic swabs Vertically folded N/W type
Bag size Single bag:L*W:50×50mm
Production date Equipped with ink wheel coding device (low cost, easy to replace)
Processing capacity 280-350 bags/min
Packaging film requirements 70-130g/㎡ aluminum film packaging paper, Φ≤400mm, width 200-380mm
Inner diameter of raw paper core Φ 76.2mm (=3")
Total power 220V 50Hz 3KW
Drive chain Main drive chain with tensioner as required
Machine weight about 1200 kg
Dimensions L*W*H:3800×1200×1800mm





Machine Details:



1. Stainless steel quality, good in appearance and machine is more durable 50Hz / 60Hz Alcohol Prep Pad Machine 220V Horizontal Sealing Machine 0
2. 4 slitting lanes design, fast and stable. 50Hz / 60Hz Alcohol Prep Pad Machine 220V Horizontal Sealing Machine 1
3. Dosing liquid filling container, adjustable to control the wet. 50Hz / 60Hz Alcohol Prep Pad Machine 220V Horizontal Sealing Machine 2
4.A precision pump body is used to make the liquid more precise. 50Hz / 60Hz Alcohol Prep Pad Machine 220V Horizontal Sealing Machine 3
5. Multi-group pressing for tighter packaging 50Hz / 60Hz Alcohol Prep Pad Machine 220V Horizontal Sealing Machine 4
6. 4 side seal packing type 50Hz / 60Hz Alcohol Prep Pad Machine 220V Horizontal Sealing Machine 5
