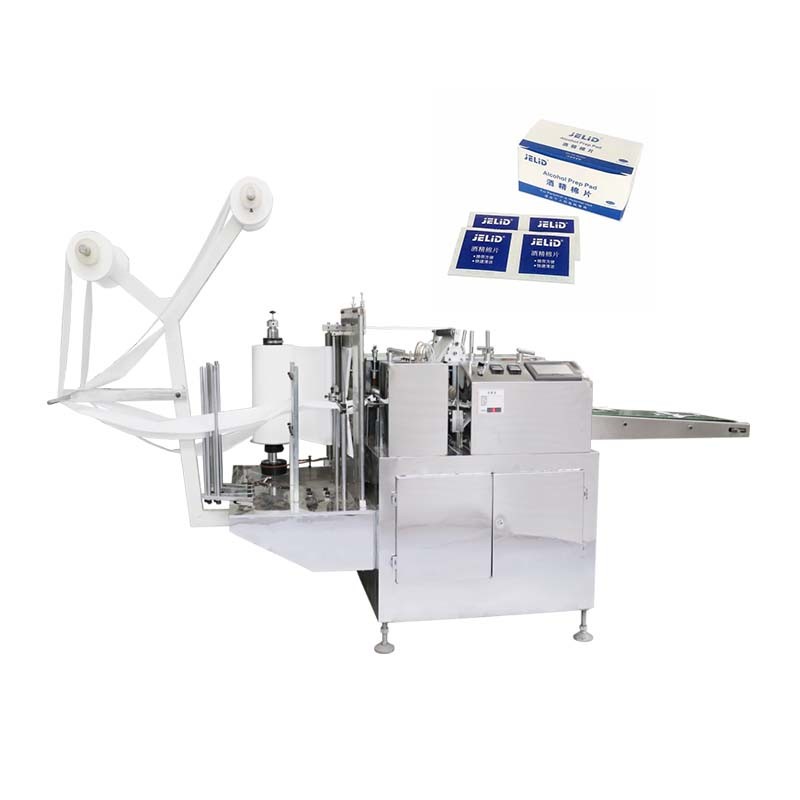

Stainless Steel Alcohol Swab Machine 4 Side Sealing Packing Pouch
Facture:
1. Full automatic line from folding, slitting, liquid filling sealing and packing etc.
2. Liquid filling with peristaltic pump, can change to other ways depends on concrete requirements.
3. Servo motor control is adopted to make slitting more intelligent.
4. Fault self-diagnostic function with fault indication at a glance
5. High-sensitivity photoelectric eye tracking and digital input of sealing and cutting positions for more accurate sealing and cutting positions
6. Punching and labelling positions can be operated on the touch screen for convenience
Quick Details:
1. Optional servo driven or dual frequency control.
2. High sensitive sensor to track and cut, which make cutting and sealing position more accurate.
3. The cutter is made of strong steel for a more exquisite cut-off.
4. Automatic counting is available to facilitate manual entry into the box.
5. The packaging material is consumable.
6. Packaging machine can be adapted to specific requirements.
Specifications:
| Alcoholic swabs unfolded size | L*H:60×30mm |
| Alcoholic swabs folded size | L*H:30×30mm |
| Folding method of lcoholic swabs | Vertically folded N/W type |
| Bag size Single | bag:L*W:50×50mm |
| Production date | Equipped with ink wheel coding device (low cost, easy to replace) |
| Processing capacity | 280-350 bags/min |
| Packaging film requirements | 70-130g/㎡ aluminum film packaging paper, Φ≤400mm, width 200-380mm |
| Inner diameter of raw paper core | Φ 76.2mm (=3") |
| Total power | 220V 50Hz 3KW |
| Drive chain | Main drive chain with tensioner as required |
| Machine weight | about 1200 kg |
| Dimensions | L*W*H:3800×1200×1800mm |
Machine Details:
| 1. Stainless steel quality, good in appearance and machine is more durable |  |
| 2. 4 slitting lanes design, fast and stable. | |
| 3. Dosing liquid filling container, adjustable to control the wet. | |
| 4.A precision pump body is used to make the liquid more precise. | |
| 5. Multi-group pressing for tighter packaging | |
| 6. 4 side seal packing type | |
