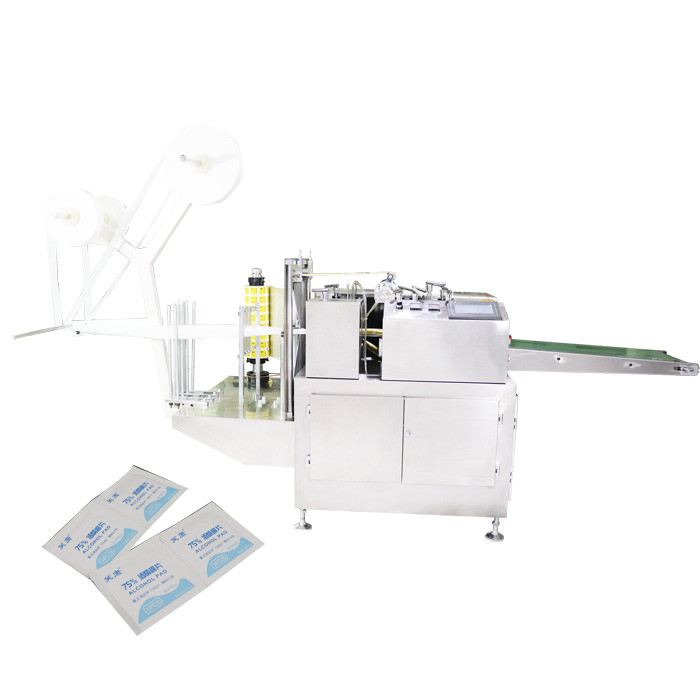

Automatic production and packaging line for the manufacture of alcoholic cotton tablets
Facture:
1. Each wipe is filled with liquid quantitatively and evenly wet;
2. Full online monitoring of non-wovens, labels, film rolls, liquids, weights and packaging;
3. Selection of unique production materials
4. Fault self-diagnosis function, fault display at a glance.
5. High-sensitivity photoelectric eye tracking, digital input of the cutting and sealing position, more accurate of the sealing and cutting position.
6. Punching and labelling positions can be operated on the touch screen, making it easy and fast to do so..
Quick Details:
1. Mixing reservoir: Stainless steel raw liquid mixing tank;
2. Crossover detection: cloth, membrane and standard interfaces are detected separately
3. Liquid level control: Electronic detection automatic control
4. Date printer is optional item;
5. plastic cover is optional item;
6. packing machine is adjustable according to concrete requirements.
Specifications:
| Alcoholic swabs unfolded size | L*H:60×30mm |
| Alcoholic swabs folded size | L*H:30×30mm |
| Folding method of lcoholic swabs | Vertically folded N/W type |

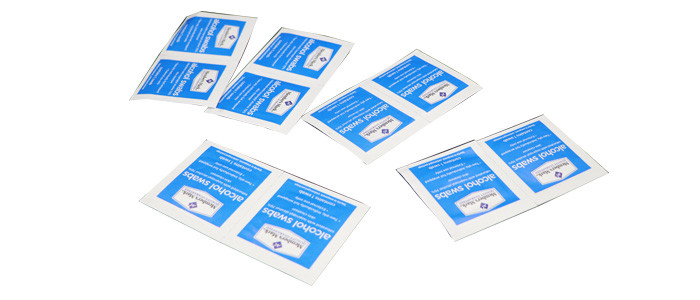

| Bag size Single | bag:L*W:50×50mm |
| Production date | Equipped with ink wheel coding device (low cost, easy to replace) |
| Processing capacity | 280-350 bags/min |
| Packaging film requirements | 70-130g/㎡ aluminum film packaging paper, Φ≤400mm, width 200-380mm |
| Inner diameter of raw paper core | Φ 76.2mm (=3") |
| Total power | 220V 50Hz 3KW |
| Drive chain | Main drive chain with tensioner as required |
| Machine weight | about 1200 kg |
| Dimensions | L*W*H:3800×1200×1800mm |
Machine Details:
| 1. Stainless steel quality, good in appearance and machine is more durable |  |
| 2. 4 slitting lanes design, fast and stable. | |
| 3. Dosing liquid filling container, adjustable to control the wet. | |
| 4.A precision pump body is used to make the liquid more precise. | |
| 5. Multi-group pressing for tighter packaging | |
| 6. 4 side seal packing type | |
