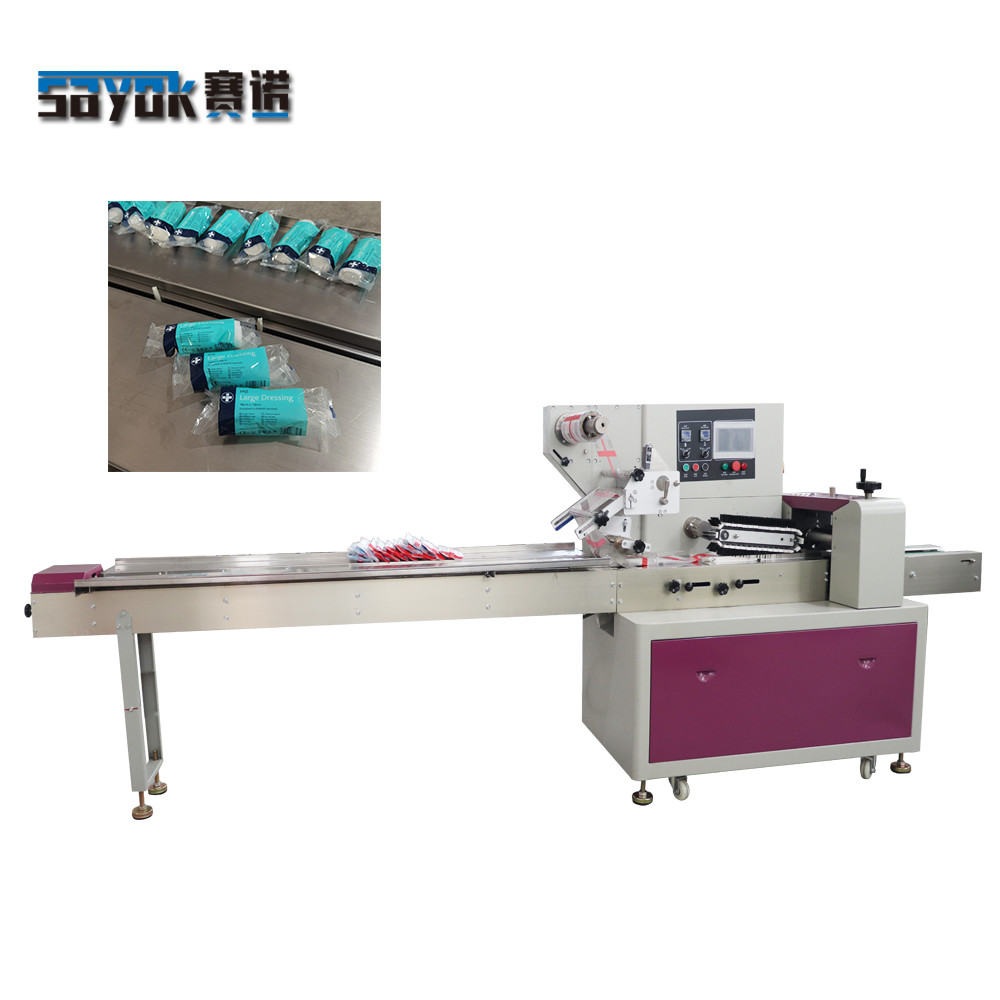

Multi Functional Rotary Up Flow Packaging Machine Medical Use Bandage Roll Pillow
Main performance and structure features:
1. Double transducer control, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and saving films
2. human-machine operation, convenient and quick parameter setting.
3. Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking &digital input cut position which makes the sealing&cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. All the controls are achieved by software, convenient for function adjusting and upgrading.
Quick Details:
Specifications:
| Model | SN-250B/D | SN-350B/D | SN-450 B/D | SN-600 B/D | SN-700 B/D |
| Film width | Max.250mm | Max.350mm | Max.450mm | Max.600mm | Max.700mm |
| Bag length |
65-190mm/90-280mm 90-220mm/120-330mm |
65-190mm /90-280mm 90-220mm/120-330mm |
120-500mm | 120-500mm | 120-500mm |
| Bag width | 30-110mm | 50-160mm | 50-180mm | 100-280mm | 100-330mm |
|
Product’s height |
Max.45mm | Max.60mm | Max.80mm | Max.80mm | Max.80mm |
|
Packing speed |
40-120bags/min | 40-120bags/min | 30-100bags/min | 20-80bags/min | 20-80bags/min |
| Power | 220V 50/60HZ 2.4KW | 220V 50/60HZ 2.6KW | 220V 50/60HZ 2.8KW | 220V 50/60HZ 2.8KW | 220V 50/60HZ 2.8KW |
|
Machine dimension |
3770x670x1450 | 4020x770x1450 | 3920x670x1320 | 4020x720x1320 | 4020x720x1320 |
|
Machine weight |
500kg | 580kg | 650kg | 680kg | 720kg |
Application:
Suitable for packaging biscuits, chocolate, bread, vermicelli, instant noodles, moon cakes, medicine, daily necessities, industrial supplies, paper boxes, paper towels, trays, towels, egg rolls, preserved fruits, hawthorn slices, sausages and other sticky or bulk products, etc.
