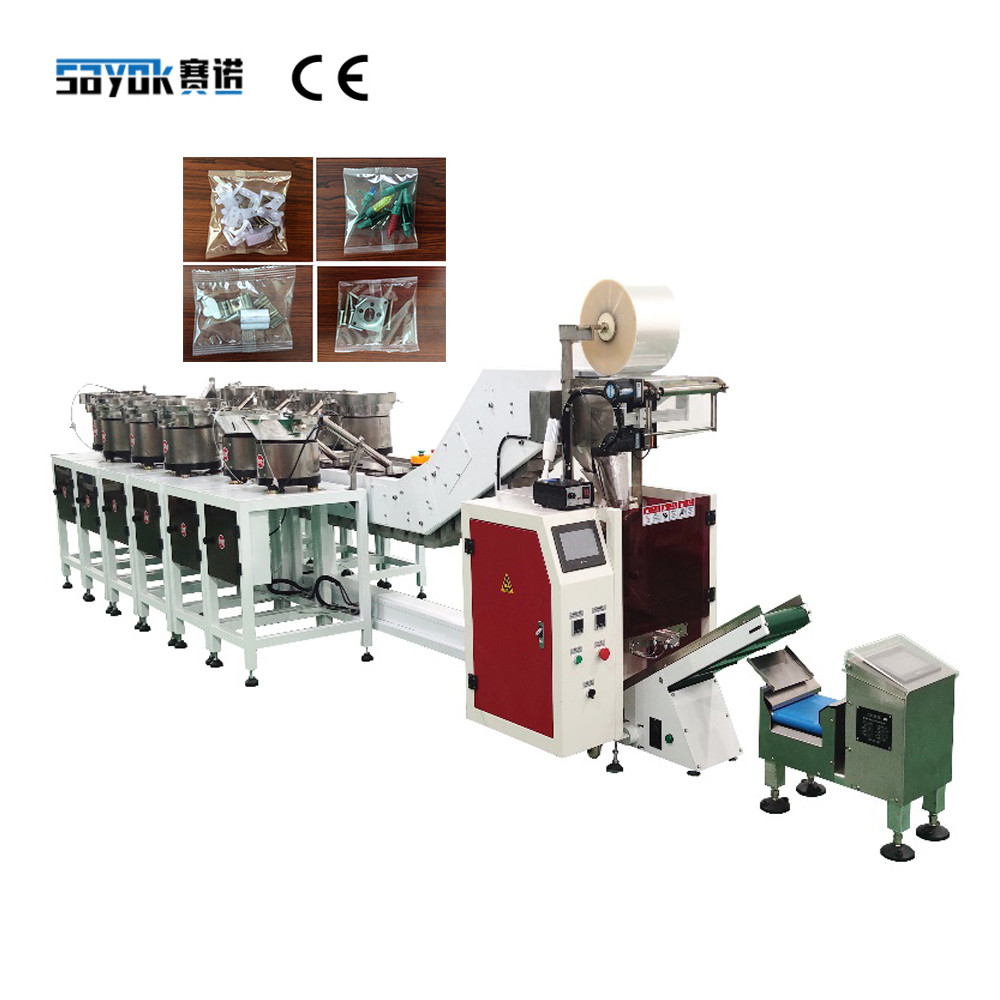

Hardware Parts Packaging Machine Automatic Screw Vibrating Type Counting Packing Machine
Feature:
1. Mainly consisting of main frame, vibrating disc mechanisms. Vibrater customized according to the packing material, the linear vibration alignment device and high precision counting control device, make sure each packing bag accurate.
2. Intelligent temperature controller two ways control the horizontal and vertical sealing, to make firm sealing, flat bag shape, exquisit and high efficiency.
3. Bagging system use the stepper motor subdivision technology, automatically track and locate the bag color code(optional),easy to bagging, fast adjustment, stable running, and low noise.
4. High packing efficieny, long life time, can be equipped with vibrater PMMA cover, exhaust device, code printer(optional), finished product conveyor(optional).
5. With automatic detection function, automatically shut down and alarm when there is no material, each vibrator can be turn ON and turn OFF arbitrarily, to meet the production needs.
6. With reliable security protection(install safety protect devices at all dangerous parts)
Quickly Details
1. Large 7" touch screen, easy to operate.
2. HMI operating system, Simple and easy to operate.
3. Adopting big domestic brand PLC, long life use and more stable in operating.
4. Optional checkweigher to check packed bags weight, increasing packing product's precision.
5. Optional date coder for data / batch number printing.
6. Spare Parts: one blade, one heat pipe, one thermocouple, one set of packaging machine tools, one toolbox
Technical Parameter
|
Model |
SN-370Z |
|
Voltage |
220V/50HZ |
|
Power |
2.0KW |
|
Air consumption |
0.4-0.6MPa |
|
Bag size |
L:50-140mm W:40-140mm |
|
Bag type |
3 side sealing bag,back side sealing |
|
Packing speed |
10-60 bags/min |
|
Measurement range |
1-20 tablets (can be customized according to customer requirements) |
| Dimension | L1100*W700*H1600mm |
|
Machine weight |
200KG |
Machine Details:
|

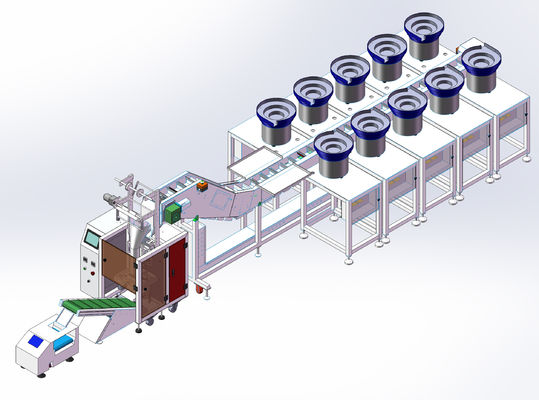

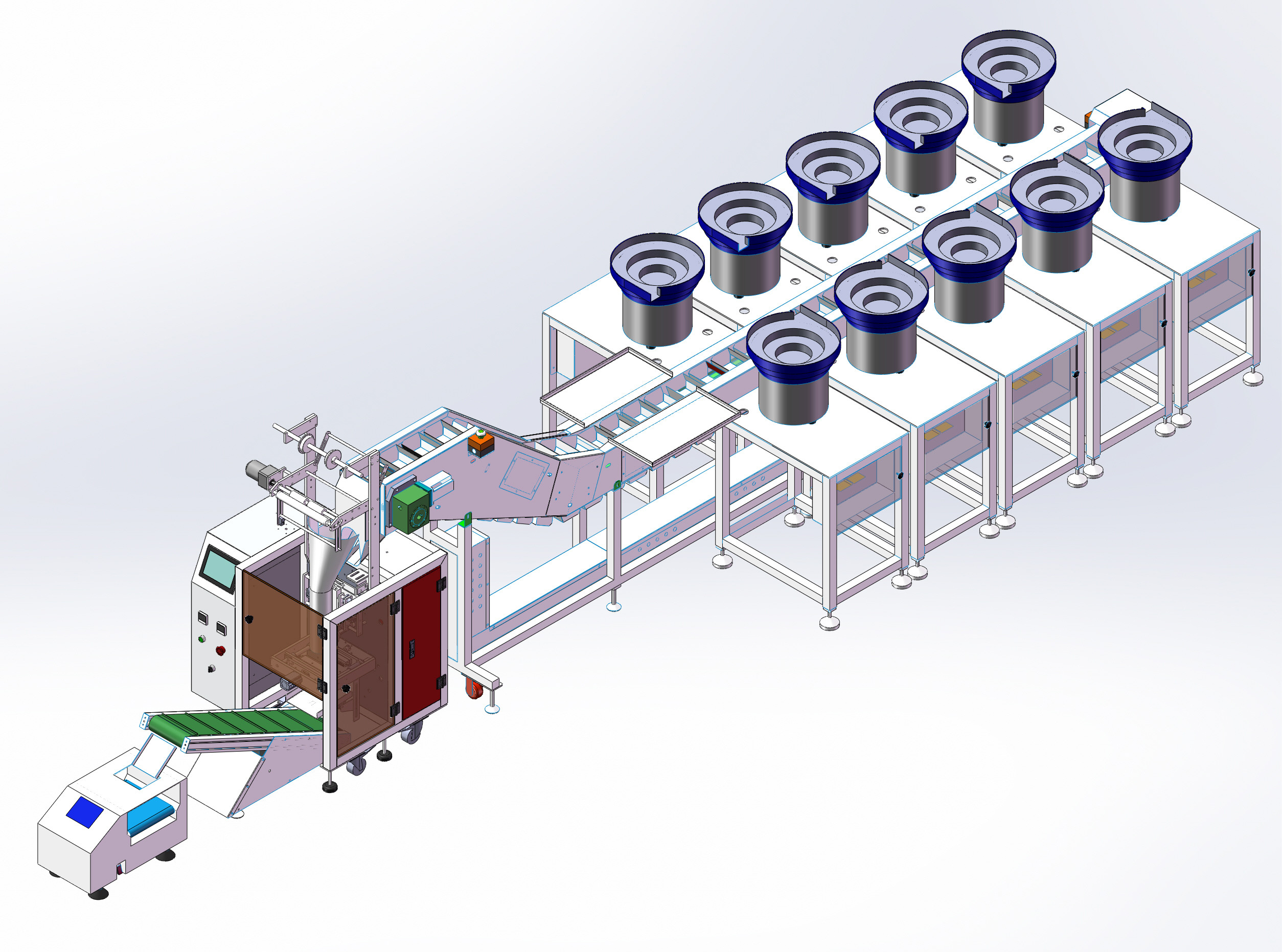

1. Vertical screw packing machine It can realize the one-step process of material release, feeding, sealing and cutting.
Group with vertial packing machine and vibration discs, and over 3 discs, there will be trailers added, easier to operate. |
 |
|
2. Customized multiple material distribution discs To achieve different material distribution points packaging.
All discs are cutomized by products, can be increased or decreased by actual product requirements. |
|
|
3. Customized molding
Suitable for all sizes of packages.
Bag width 40-140 (width change formers), length 50-140 mm (length adjustable) |
|
|
4.Double-sided heating and sealing
Intelligent temperature controller two ways control the horizontal and vertical sealing, to make firm sealing, flat bag shape, exquisit and high efficiency |
|
|
5. Checkweigher
Optional link with checkweigher for checking product weight and sorting
3 weight zones: underweight, normal, overweight (optional 4-zone sorting function requires external structure and separate configuration) |
|
|

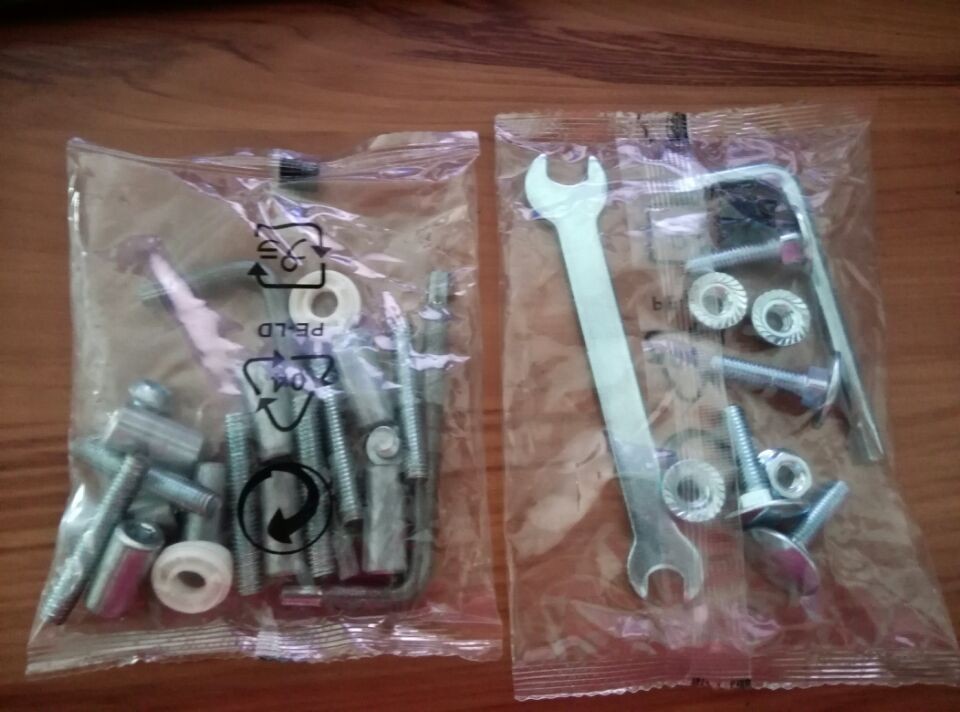

6. Applications:
Widely used in hardware industry, fastener industry, standard parts industry, hardware stamping parts, rubber rubber and plastic industry, lighting industry, electronic appliances industry, decorative fittings, door and window fittings, furniture and cabinet hardware fittings, communication equipment fittings, railway and highway equipment fittings, antenna hardware fittings, home appliance hardware fittings, sofa hardware fittings, fitness equipment fittings, monitoring equipment fittings, bicycle fittings, automobile fittings, toilet and bathroom hardware fittings, solar energy fittings, various electrical appliances fittings, household appliances accessories, wardrobe kitchen and bathroom equipment fittings, fittings metal small products, etc. |
|
