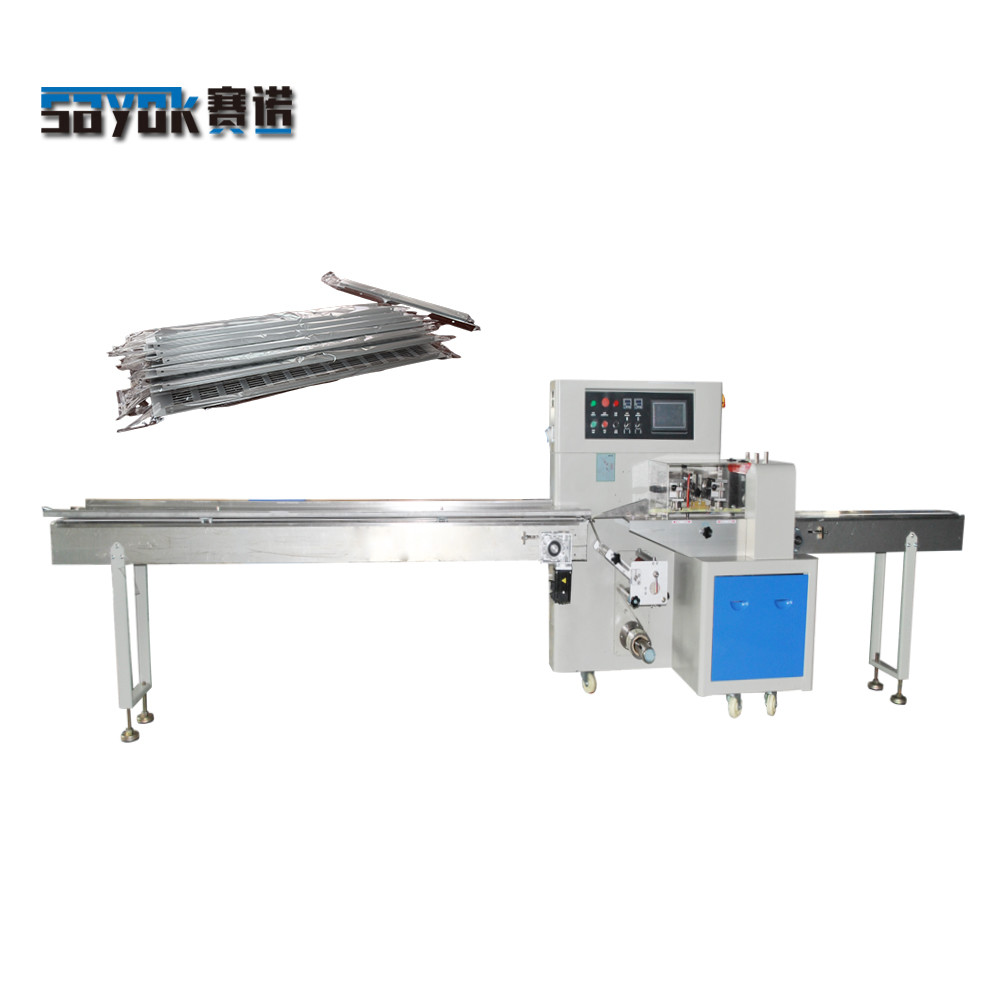

Multifunction Hardware Parts Packaging Machine Aluminum Tube Servo Driven PE Film Packing Machine
Feature:
1.3 Servo motors , PLC controller , flexible bag length setting and cutting , saving time film.
2.Touchable human –machine operation , convenient and quick parameter setting.
3.Self diagnosis failure function , clear failure display.
4.High sensitivity optical electrical color mark tracking and digital input cut position which makes the sealing and cutting more accurate.
5.Separate PID control to temperature , suitable for various packing materials.
6.Stopping the machine in selected position , no , sticking to the knife and no waste packing film.
7.Simple driving system , reliable working , convenient maintenance.
8.All the controls is are achieved by software , convenient for function adjusting and upgrading.
9.Automatic sense material length , automatic packaging products , no product no packaging , don’t need to adjust the bag length.
Scope of application

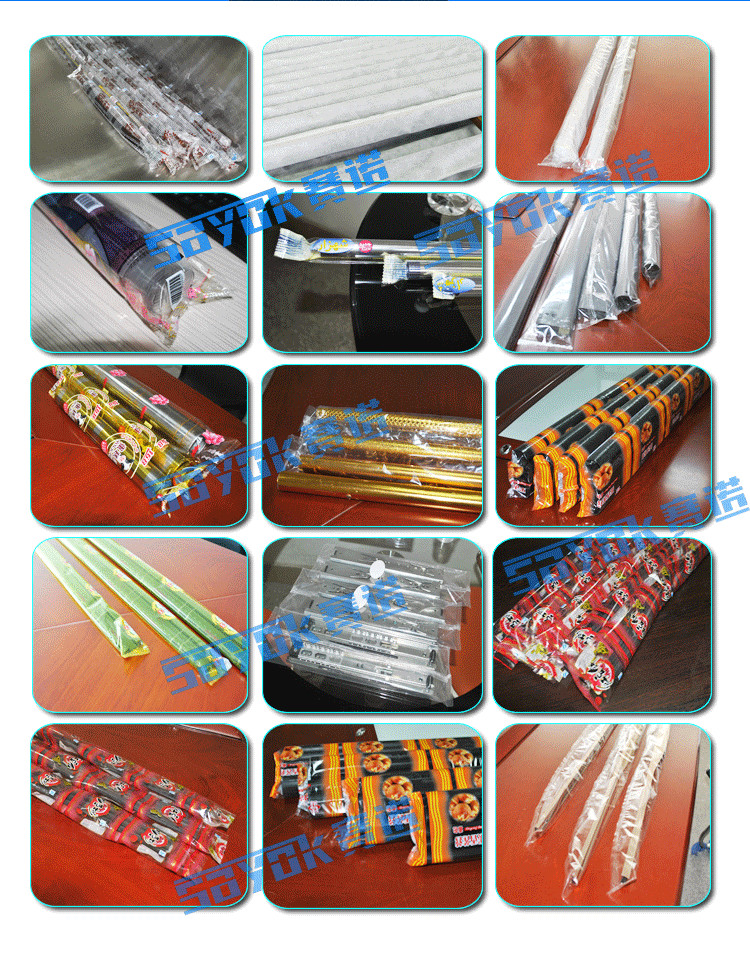

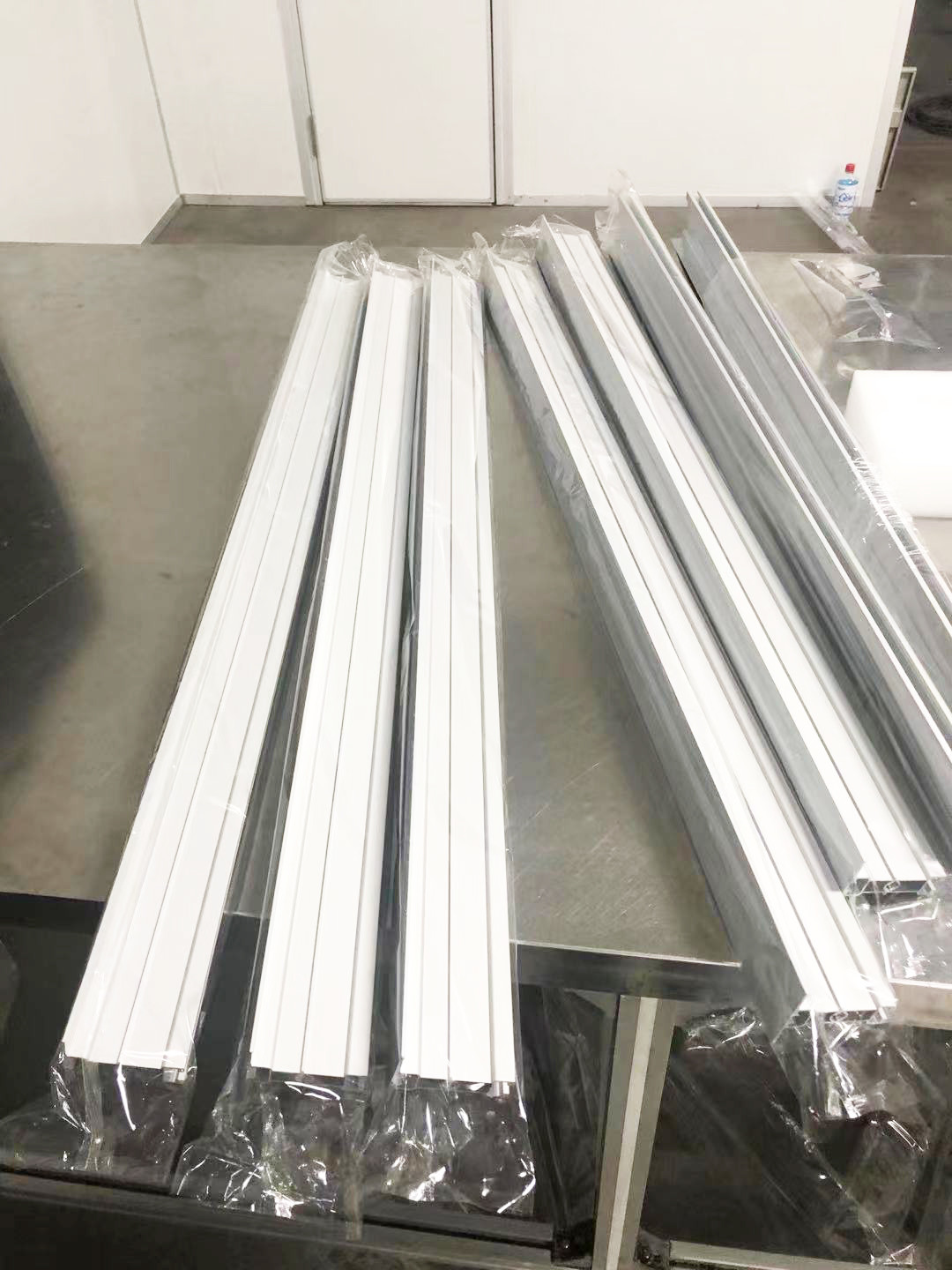

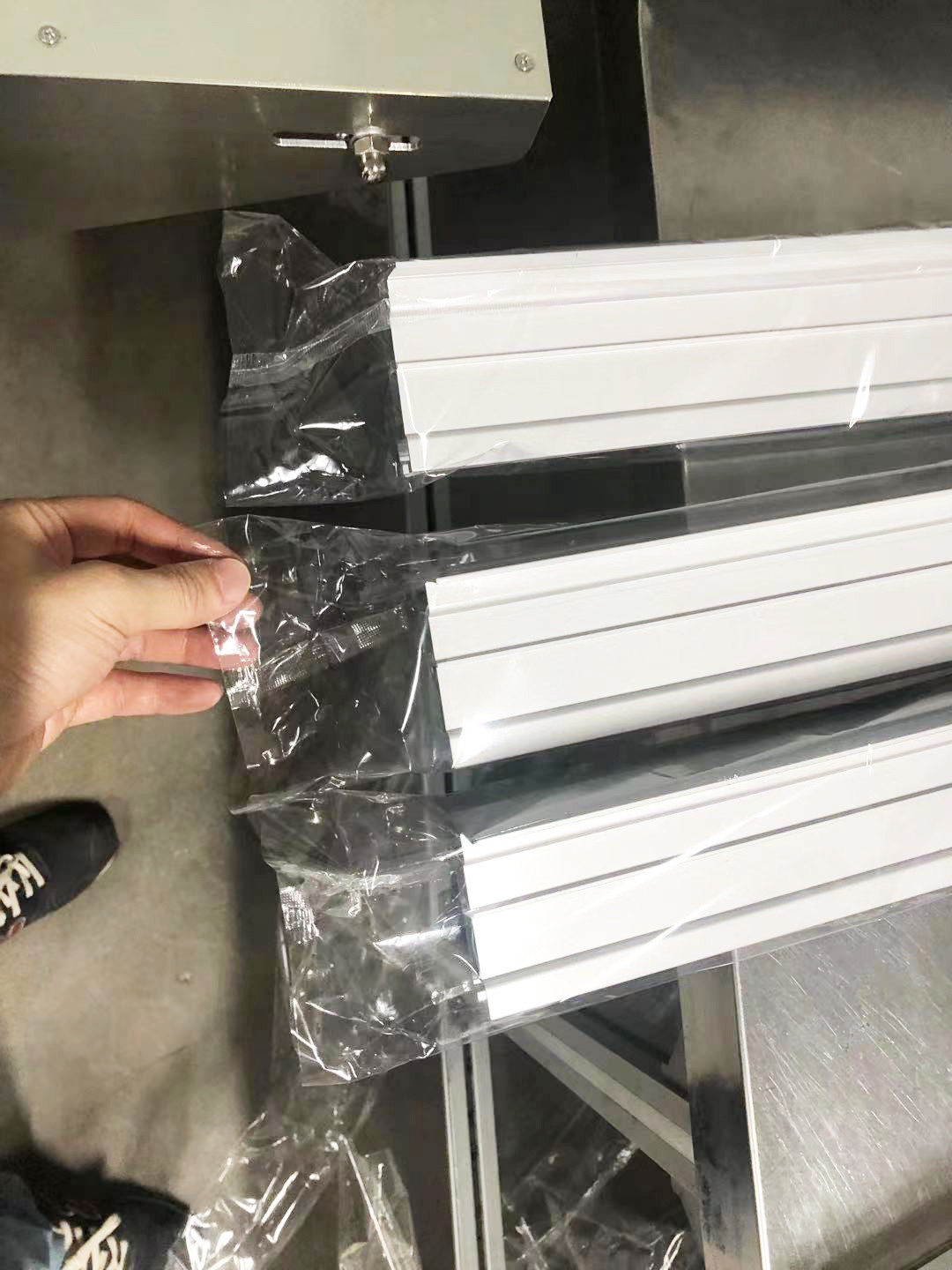

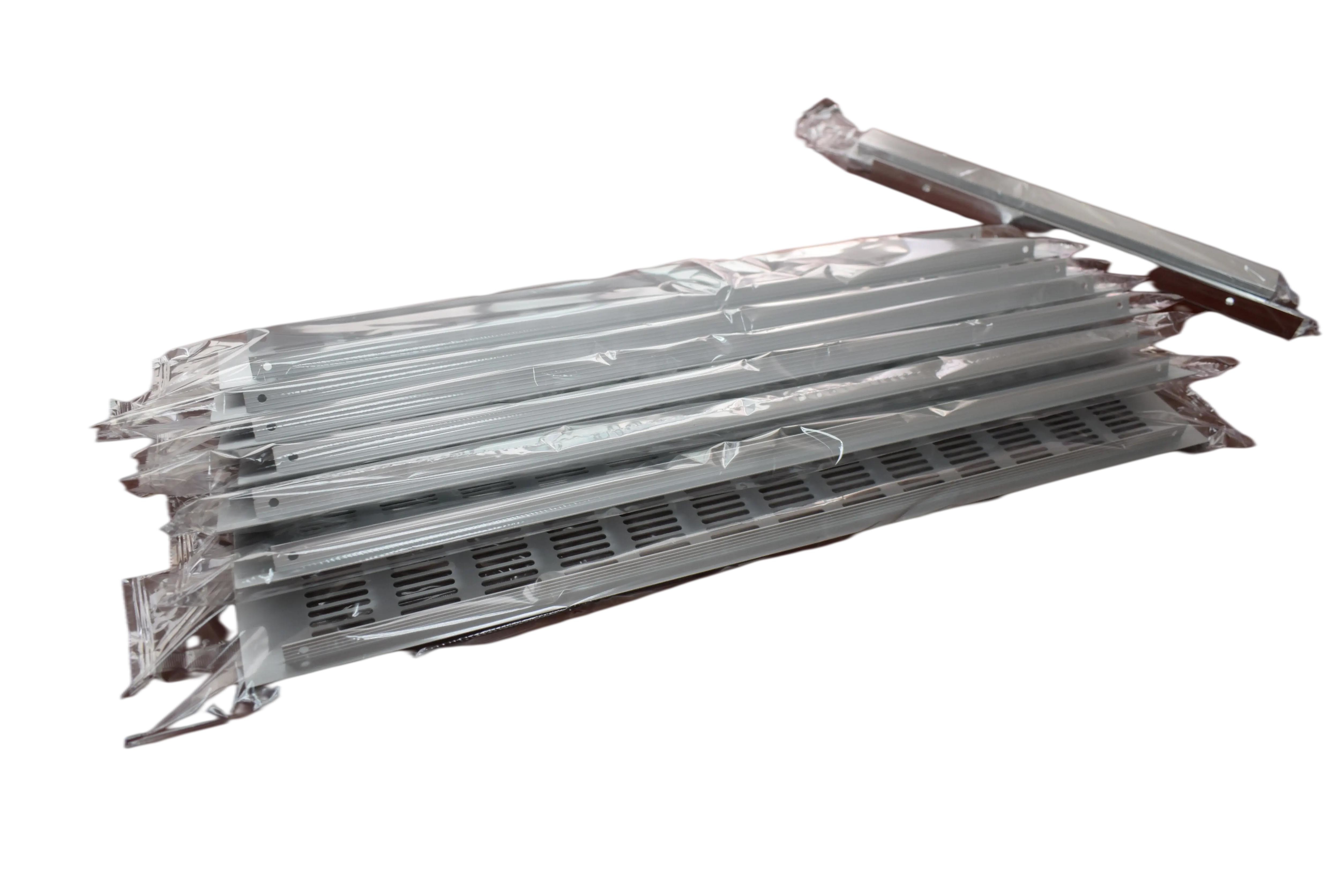

Suitable for packing disposable cup , steel tube, aluminum , plastic tube , plastic pipe , wire pipe , wire groove guide , metal pieces , and any other long shape products.
Optional device:
10. Automatic feeding device
| Model | SN-250XD |
| Film width | Max.250mm |
| Bag length | (Depend on product) |
| Bag width | 20~80mm |
| Product height | 0-60mm |
| Film roll diameter | Max. 320mm |
| Packaging rate | 5-30m/min |
| Power | 220V 50/60HZ |
| Machine size |
(W)670×(H)1450mm Machine length will be depend on product |
| Machine weight | 1100Kg |
